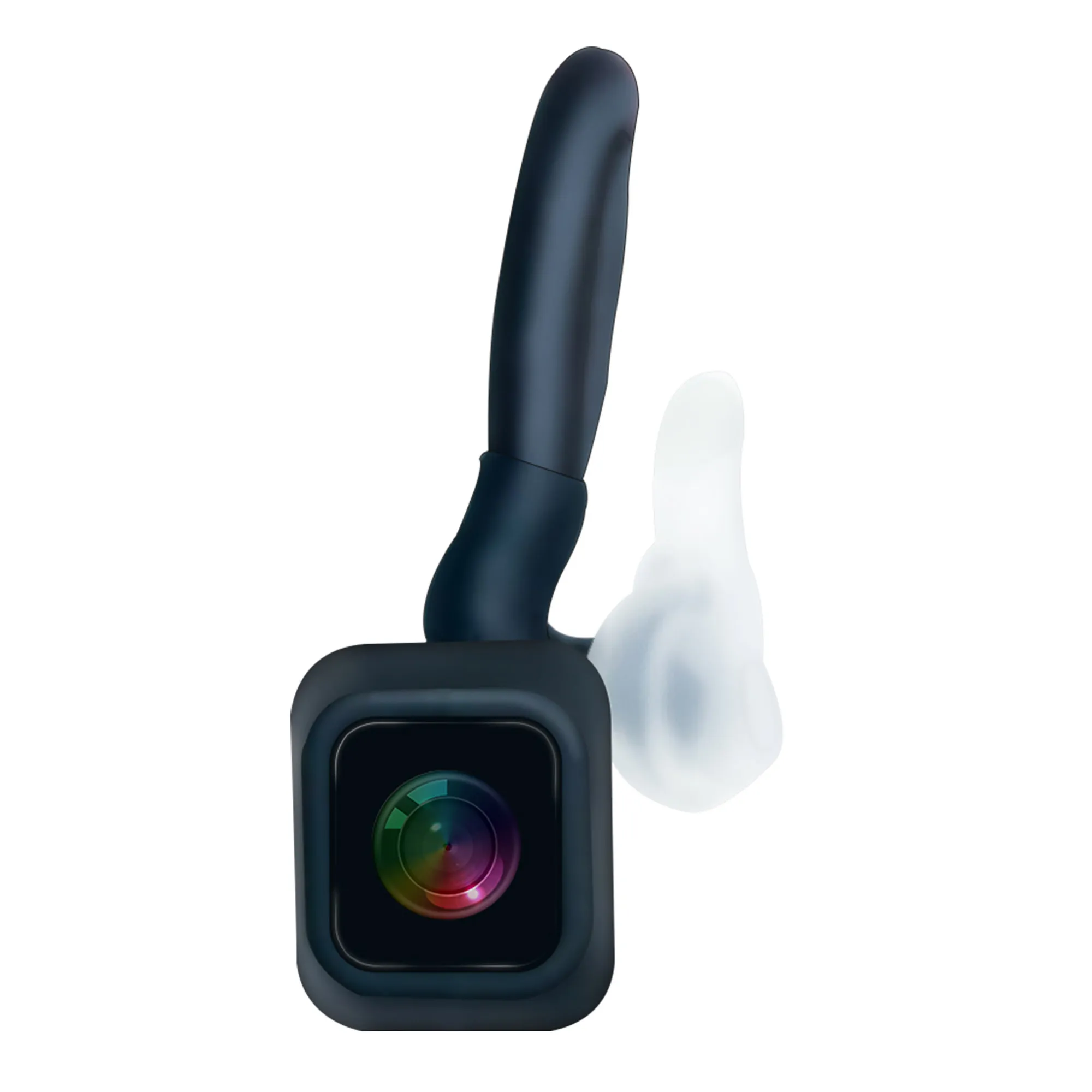

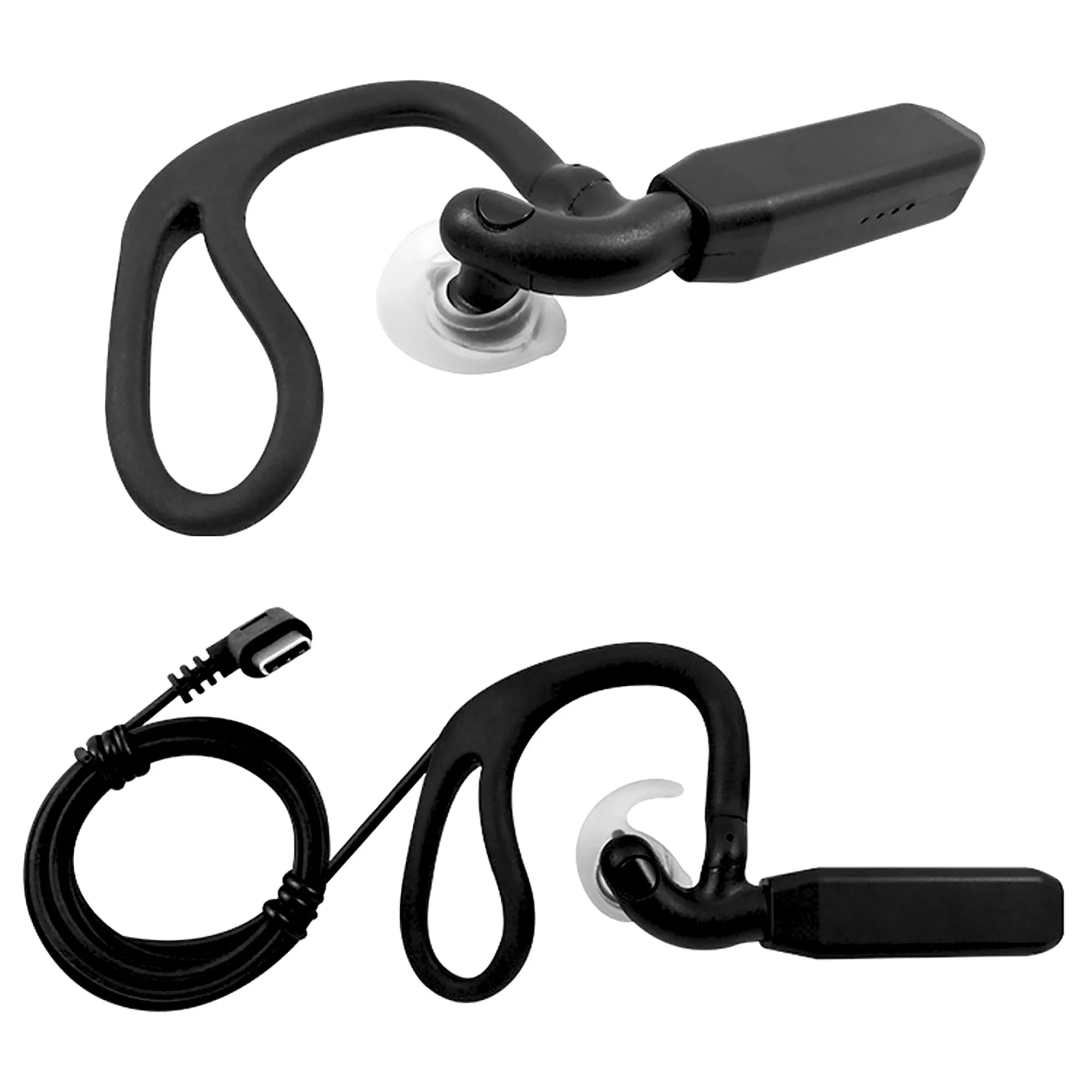

1）. Designed for Right-Ear WearUnlike conventional body-worn cameras, the ED-80 uses an ear-hook structure that places the camera close to the user's eye line.
The camera is designed specifically for right-ear use, providing a compact and hands-free way to capture a first-person perspective.
2）. Two Camera Versions AvailableThe same wearable structure can be configured with two different camera modules.
ED-80:
2MP Standard-Focus USB Camera
2MP CMOS sensor
Up to 1920 × 1080
30fps
78° viewing angle
MJPG video stream
The 2MP version is suitable for general hands-free video, monitoring, documentation and wearable applications.
ED-80AF:
5MP Autofocus USB Camera
5MP CMOS sensor
Up to 2592 × 1944
Autofocus
Focus range: 5 cm to infinity
66° diagonal FOV
The autofocus version is especially useful when the camera needs to capture both nearby objects and more distant subjects.
1. 5MP Autofocus for Near and Far Subjects:The ED-80AF uses a 5MP CMOS sensor with autofocus, supporting a focus range from approximately 5 cm to infinity.
This allows the camera to adapt when the user moves between close-up and distant subjects, making it suitable for applications involving documents, components, tools, equipment and demonstrations.
It supports multiple video resolutions, including up to 2592 × 1944, as well as 1920 × 1080 and 1280 × 720
2. Bluetooth VersionBluetooth 5.0 with Built-In Earphone
Camera + Wireless Calling in One Wearable Design
The Bluetooth version combines the wearable camera with a compact audio function.
A small built-in speaker/earpiece is integrated into the part positioned inside the ear. When the camera is connected to a compatible Android smartphone through USB, the Bluetooth function can be paired with the phone for phone calls through the built-in earphone.
Bluetooth Features
Bluetooth 5.0
Built-in earphone / speaker
Wireless phone-call function
Designed for compatible Android smartphones
USB camera and Bluetooth audio functions in one wearable device
3. Hands-Free POV CameraKeep Your Hands Free
The ED-80 is designed for situations where users need to see and capture what they are working on without holding a conventional camera.
The camera follows the user's head movement, creating a natural first-person perspective while leaving both hands available for the task.
Suitable for:
Technical inspection
Equipment maintenance
Repair and troubleshooting
Training and demonstrations
Field work
Hands-free documentation
Wearable video applications
Remote assistance
4. USB UVC ConnectivityPlug-and-Play USB UVC Camera:
The ED-80 is designed as a USB camera for connection to compatible host devices.
The 5MP autofocus version supports Windows, Mac, Linux and Android, while the 2MP Bluetooth version is specified for OTG-compatible Android devices.
The camera can work with compatible USB camera applications for live preview and video recording.

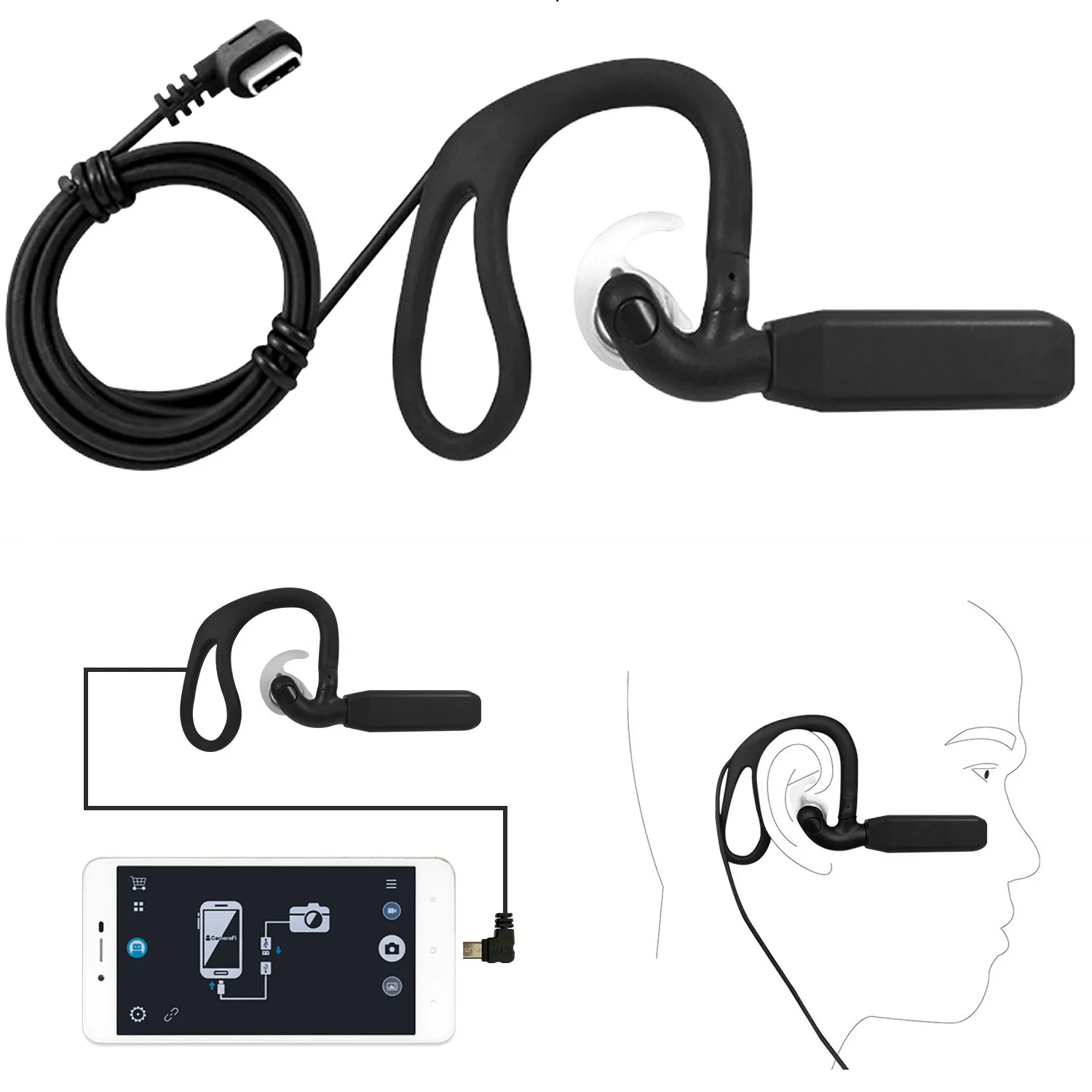

USB-C Connection:
The standard connector is USB Type-C, providing a compact connection for modern smartphones, computers and other compatible devices.

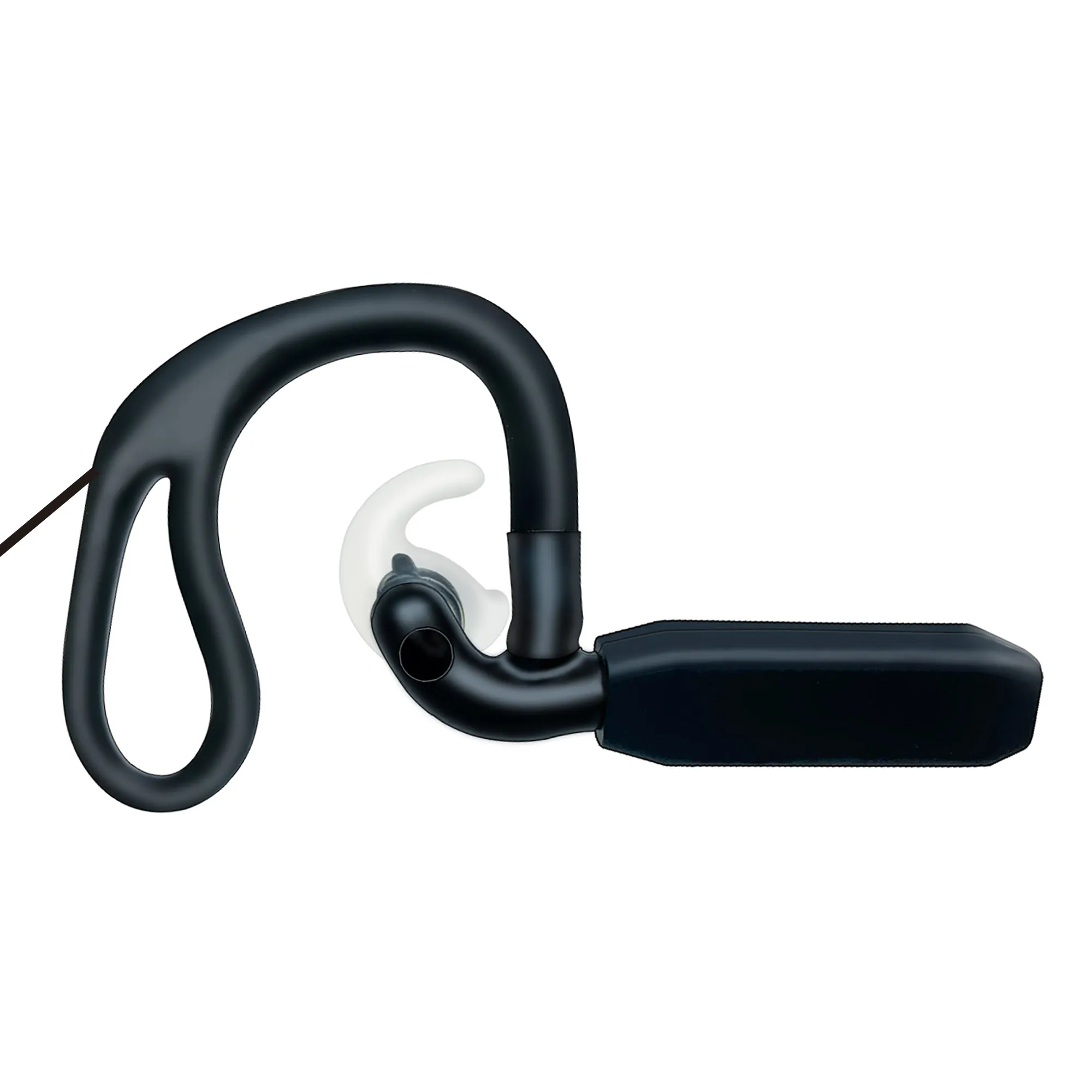

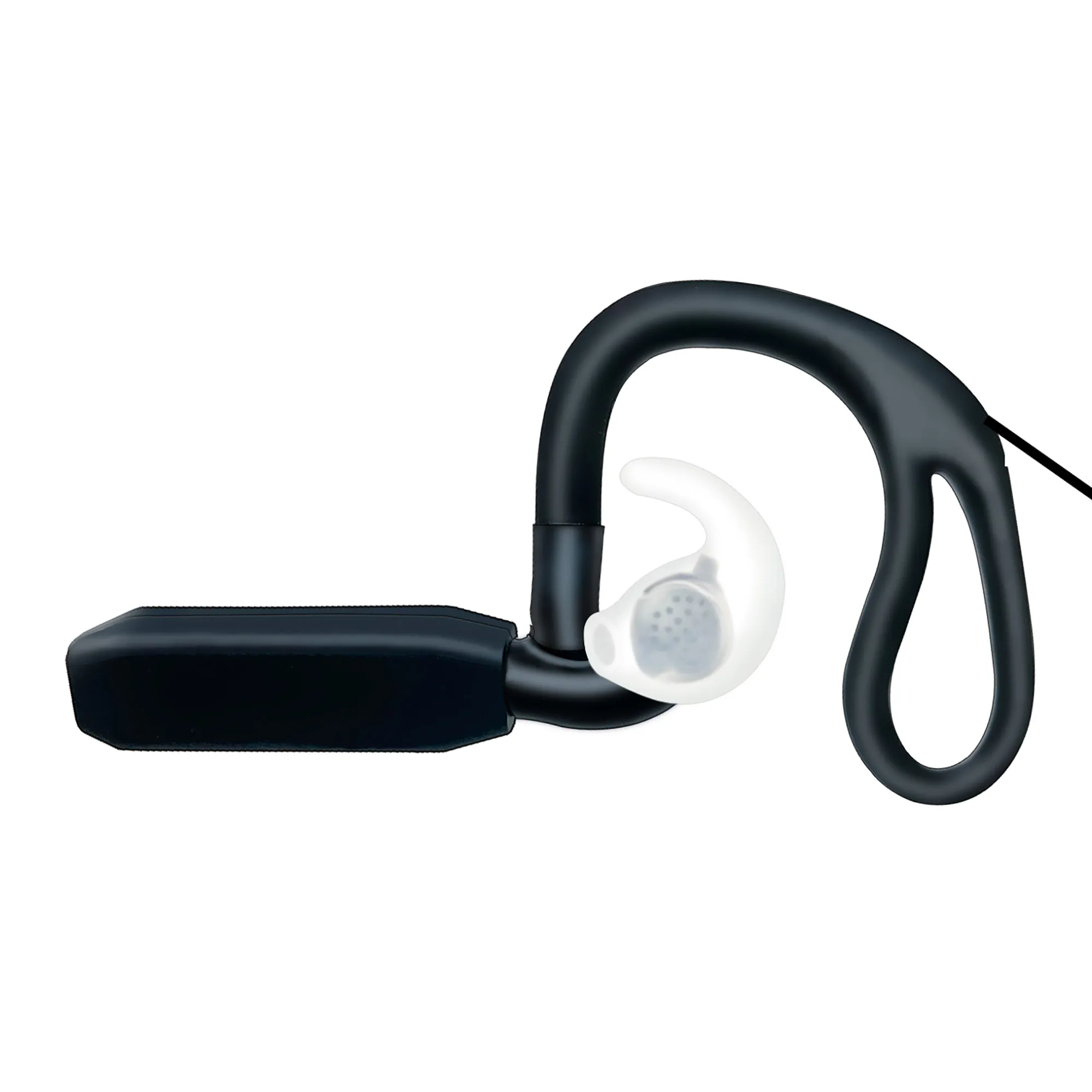

5. Compact Wearable DesignSmall Camera. Comfortable Wearable Form.
The main camera section measures approximately:17 × 51 mm
Its compact form allows the camera to be positioned near the user's eye without creating the bulk of a conventional head-mounted camera.

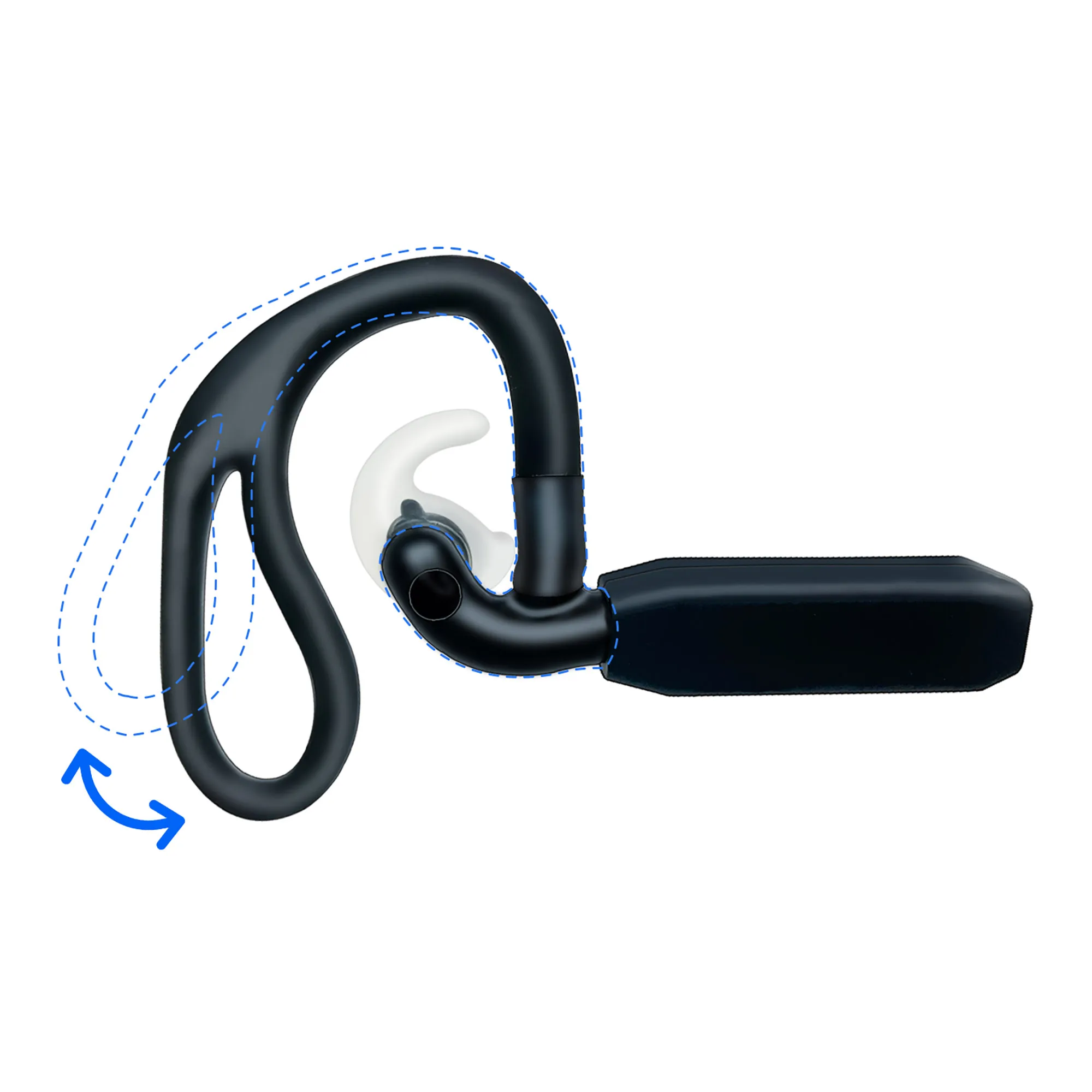

The product images also show that the ear-hook structure can be adjusted to help position the camera appropriately.
