Compact, Flexible and Customizable Camera Modules for OEM & ODM Applications

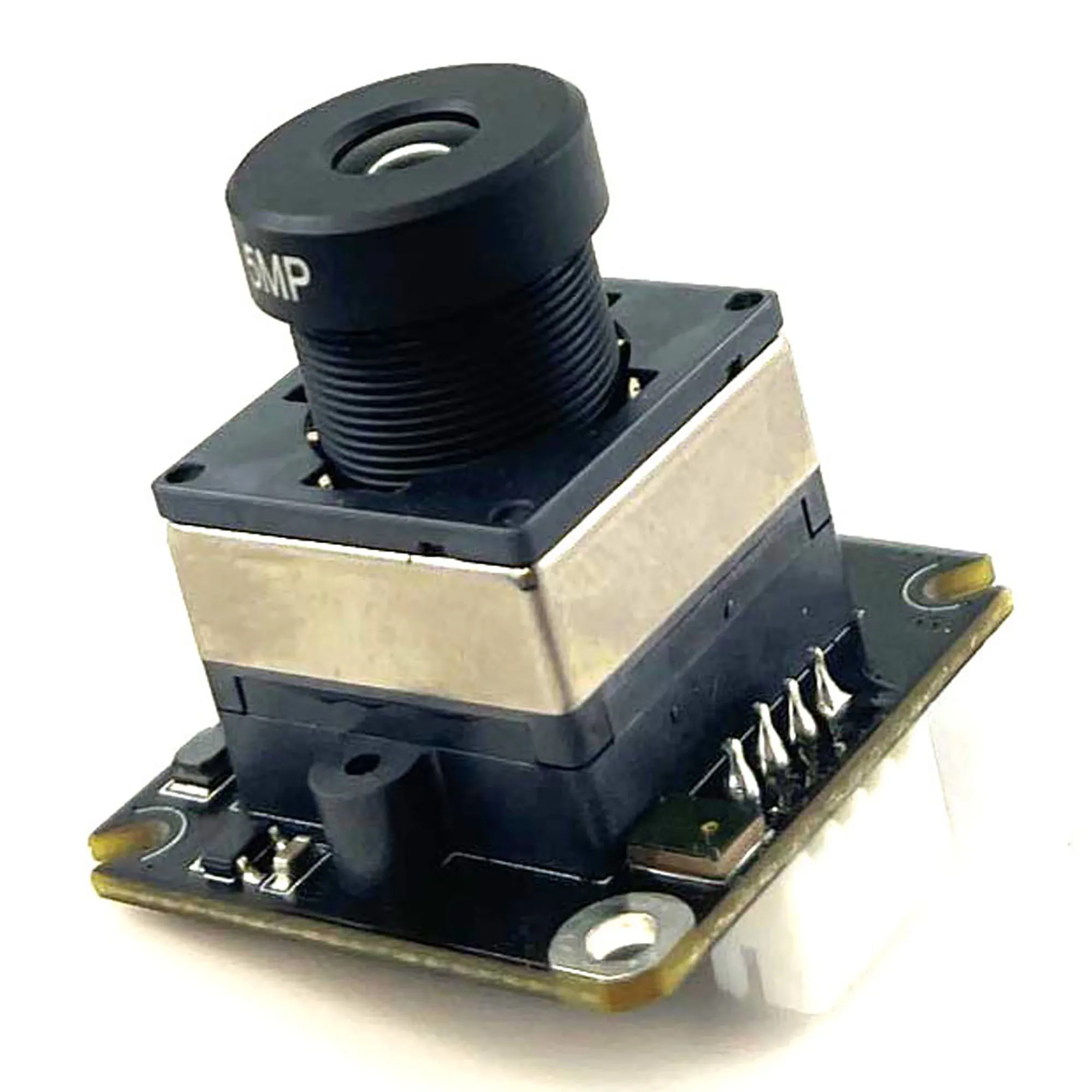

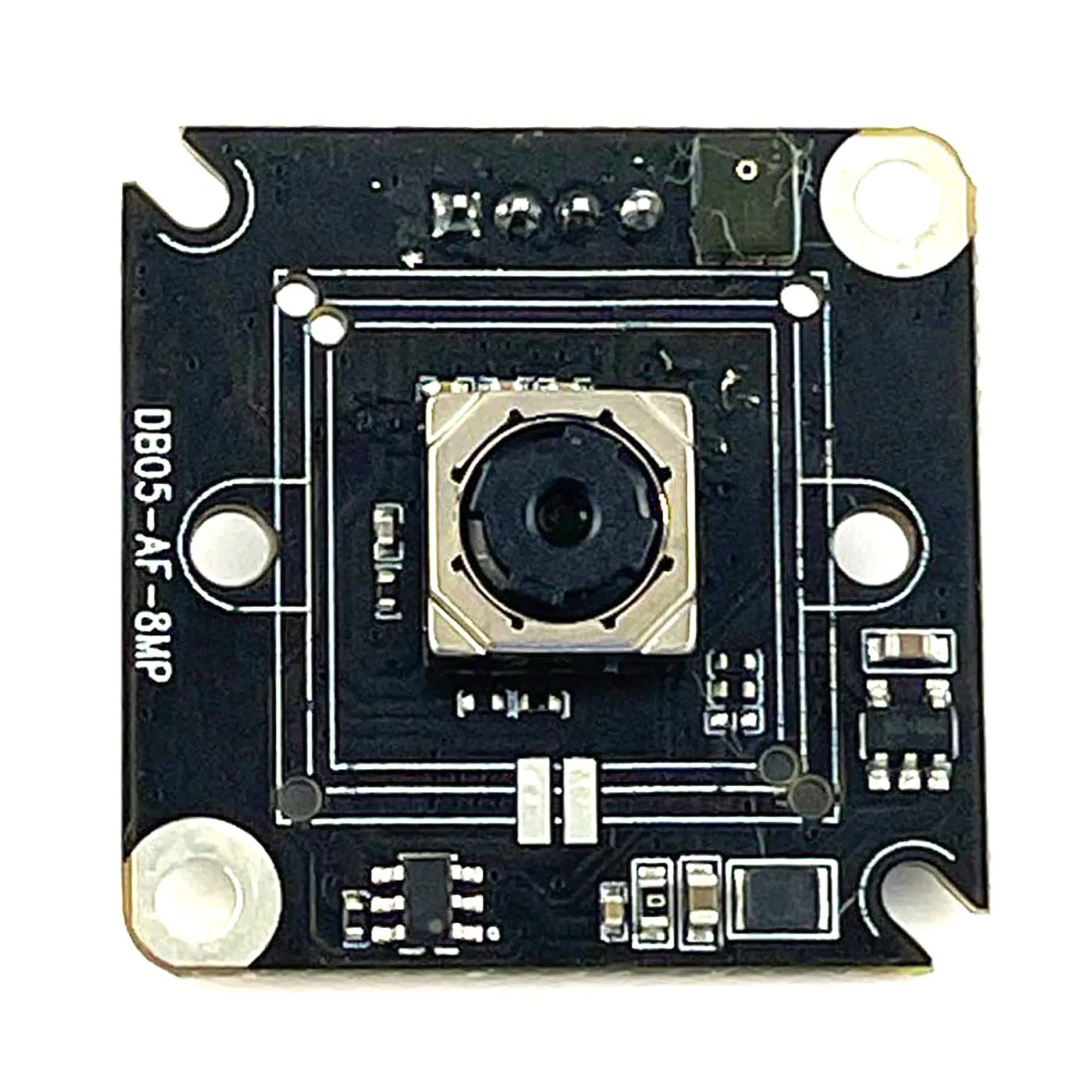

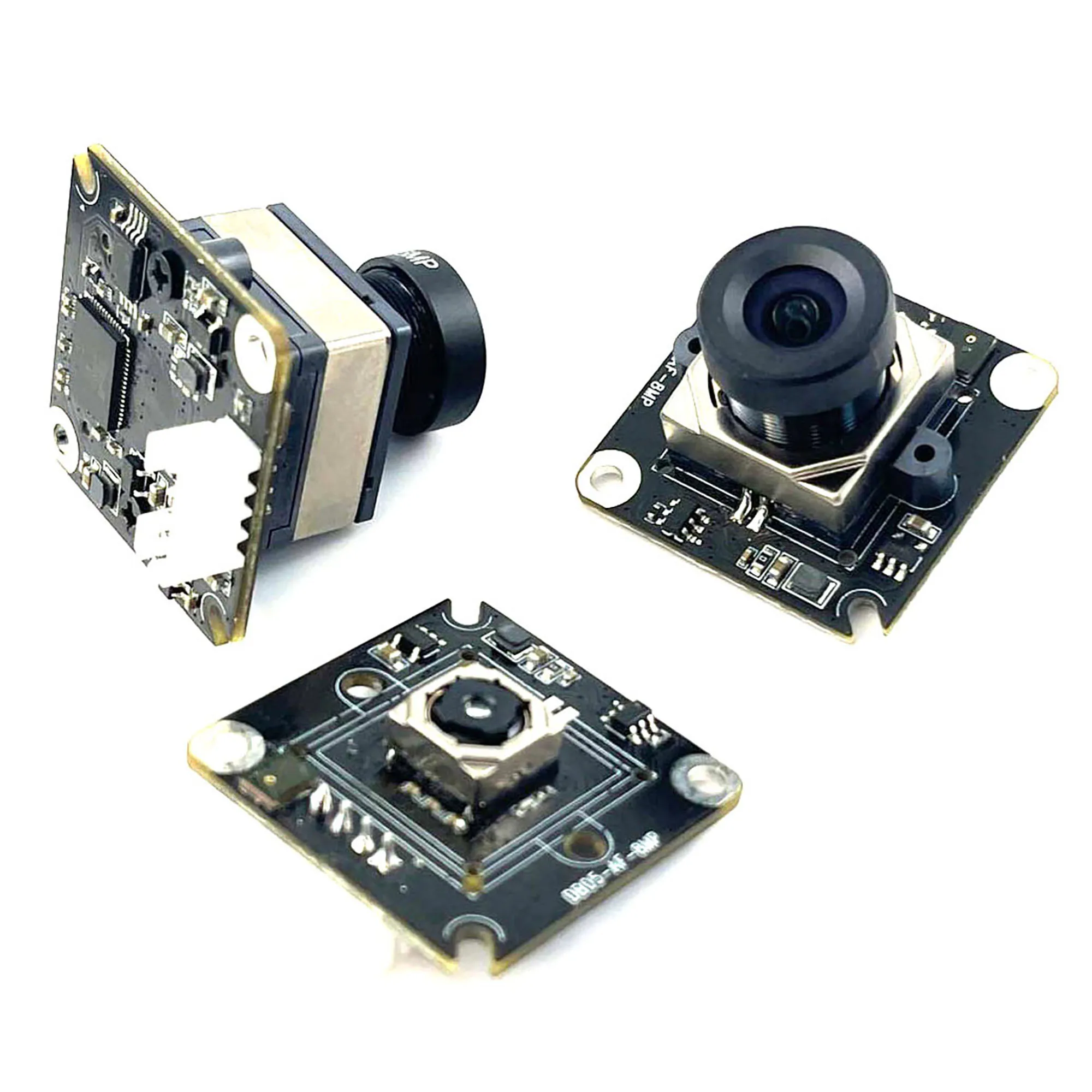

TheDH08-AF-8MP is a compact8MP autofocus USB camera module designed for embedded applications, OEM products and customized imaging systems.
Featuring an8MP CMOS image sensor, autofocus capability and resolutions up to3264 × 2448, the module provides high-resolution imaging for applications requiring clear images and detailed visual information.
The standard configuration uses a compact28 × 28 mm PCB design, making it suitable for space-constrained products and custom enclosures. The module uses the standardUVC protocol and supportsMJPG video output for convenient integration with compatible host devices.
More importantly, the standard module is only a starting point. We can evaluate customization of theimage sensor, lens, FOV, focus type, PCB dimensions, PCB shape, cable, USB connector and mechanical structure according to your product requirements.The 8MP CMOS image sensor supports resolutions up to3264 × 2448, providing detailed imaging for applications where visual information and image clarity are important.
The module also supports multiple video resolutions, allowing developers to select an appropriate resolution according to their application requirements.

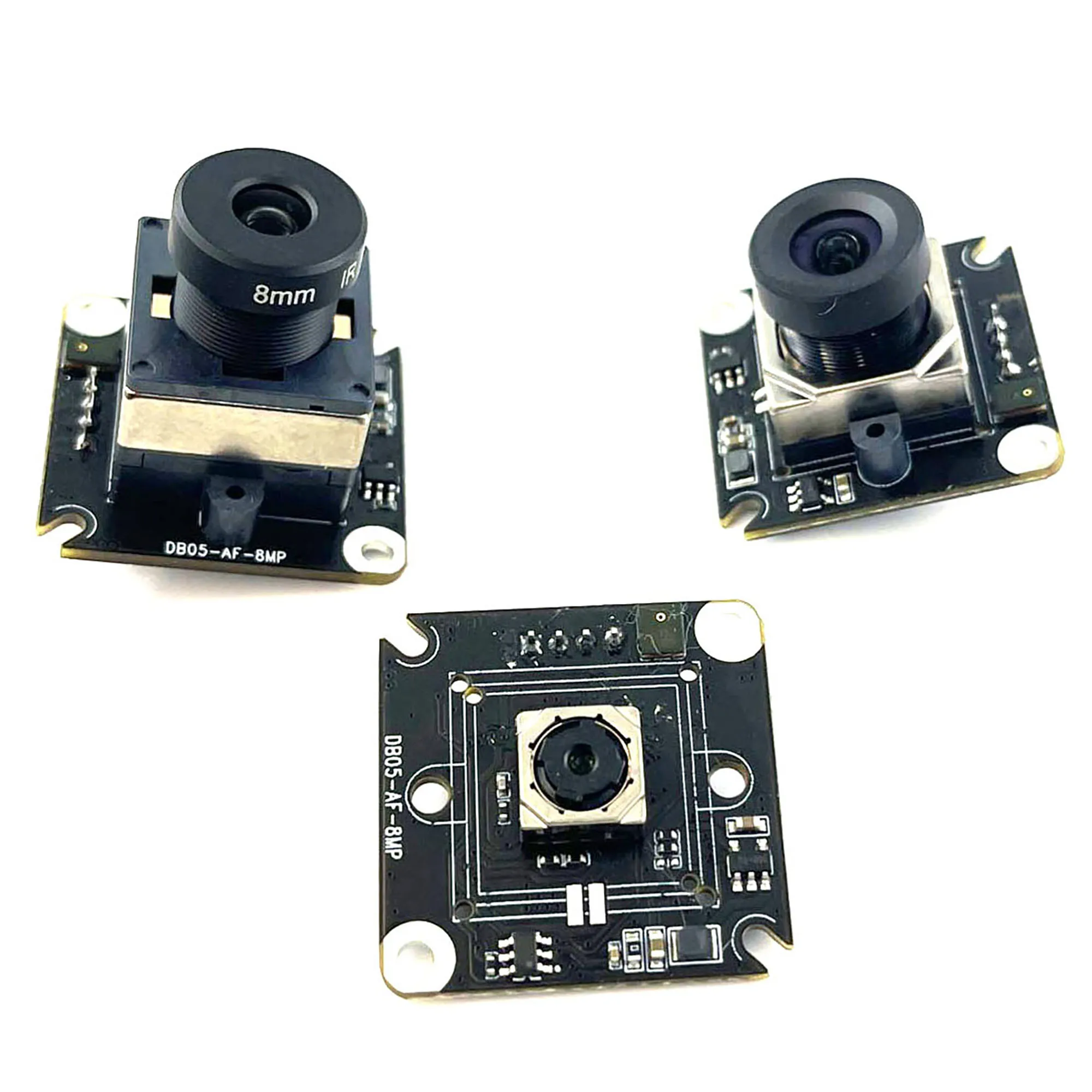

The autofocus system automatically adjusts focus according to the subject distance.
With a minimum autofocus distance of approximately5 cm, the module can be used for applications that require both relatively close-up imaging and viewing of more distant subjects.
This makes it suitable for:
· Document capture
· Product inspection
· Object recognition
· Wearable vision
· AI vision
· Portable equipment
· Interactive devices
The module uses thestandard USB UVC protocol, allowing convenient integration with compatible USB host devices and software.
Supported platforms include:
Windows | Mac | Android | Linux
Video is transmitted through USB usingMJPG format.

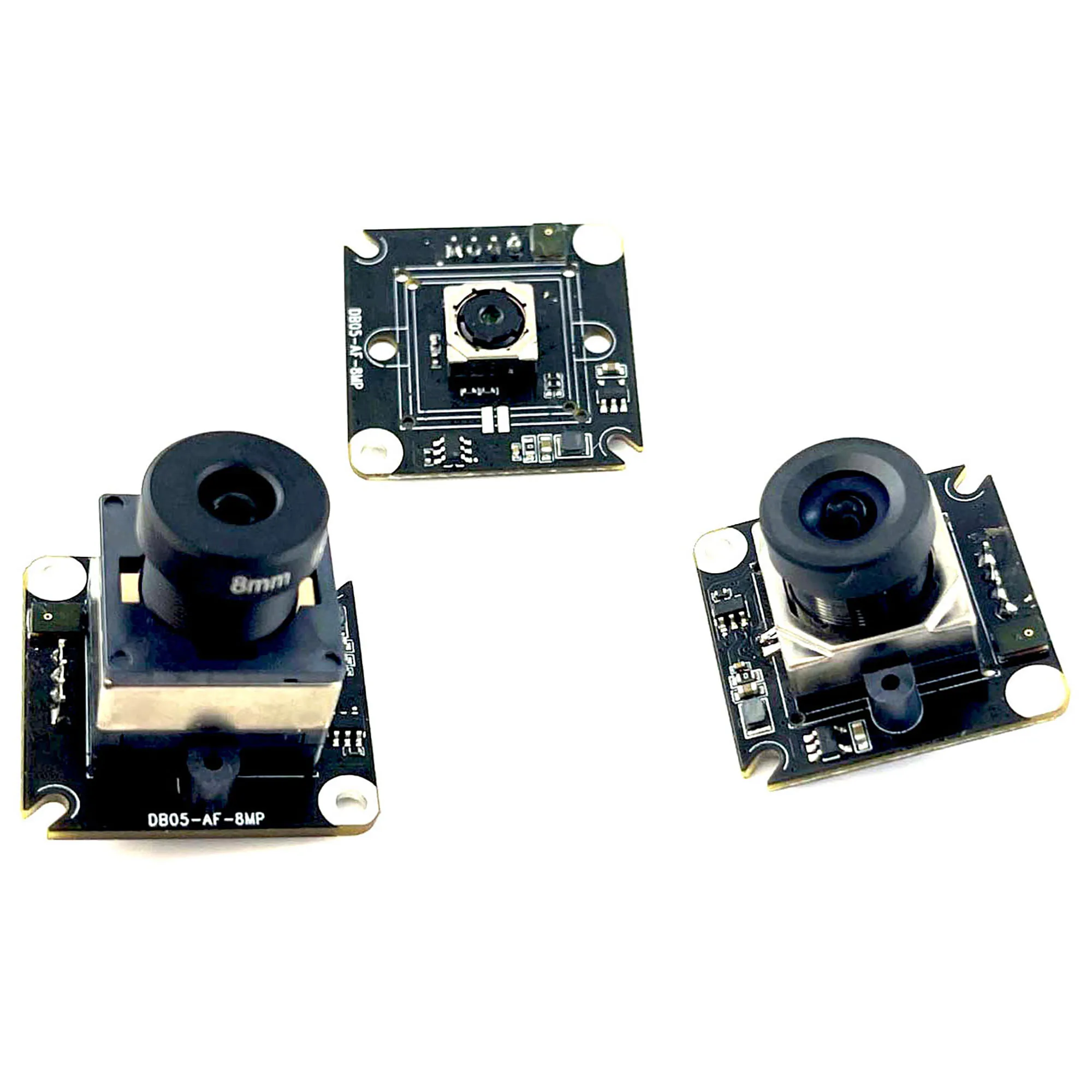

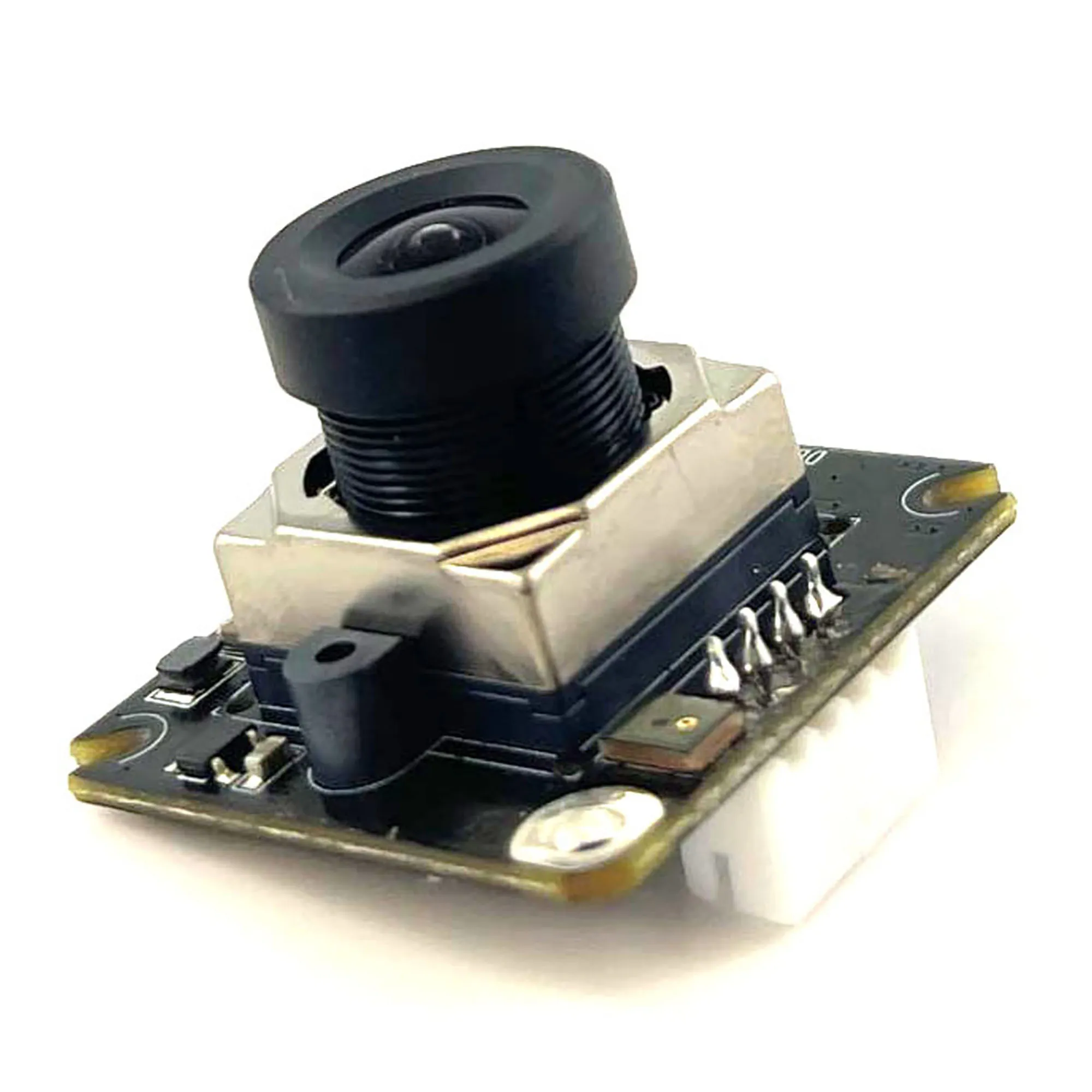

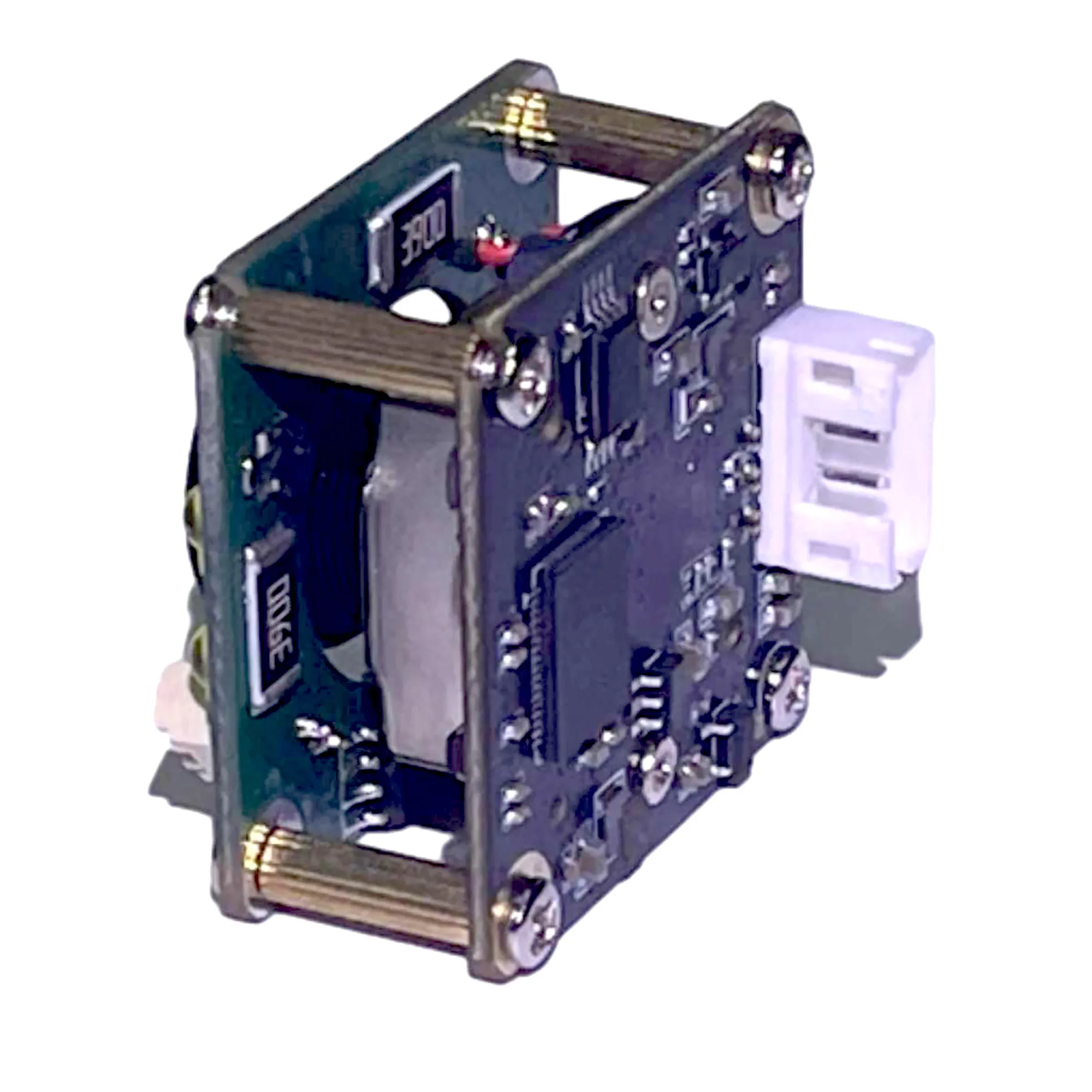

The 28 × 28 mm square PCB configuration provides a compact platform for embedded camera applications.
Its small PCB footprint makes it suitable for integration into:
· Smart devices
· Industrial equipment
· Portable products
· Inspection systems
· AI vision devices
· Custom electronic products
Note: The 28 × 28 mm dimension refers to the PCB configuration shown for this product. Other mechanical configurations may have different overall dimensions.
Different optical configurations can be evaluated according to the requirements of your product.
Possible considerations include:
· Field of view
· Lens type
· Working distance
· Focus range
· Image distortion
· Autofocus or fixed focus
· Application requirements
The standard configuration provides a76° lens angle.
The camera module can be adapted to different mechanical and electronic requirements.
Depending on the project, customization can include:
· Image sensor
· Resolution
· Lens
· FOV
· Focus type
· PCB dimensions
· PCB shape
· FPC / cable
· USB connector
· Camera orientation
· Housing
· Mounting structure
This allows the camera to be integrated into products with specific size, optical and mechanical requirements.
Industrial Inspection Compact camera modules for inspection equipment, machinery and industrial imaging systems. |
AI Vision Systems Camera modules for AI-based image recognition, object detection and machine vision applications. |
Smart Devices Embedded cameras for smart hardware, interactive devices and connected equipment. |
Medical & Healthcare Equipment Compact imaging solutions for medical and healthcare equipment requiring integrated camera modules. |
Robotics USB camera modules for robotic vision, navigation and object recognition. |

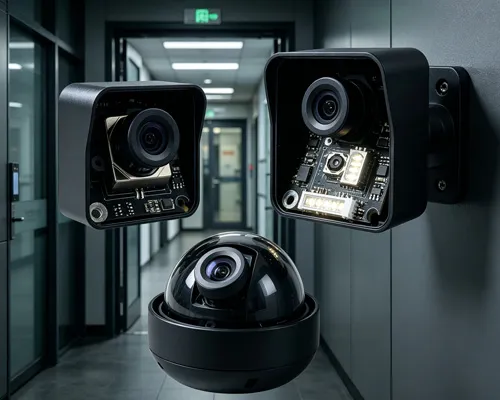

Security & Monitoring Suitable for compact surveillance, monitoring and embedded security systems. |
Kiosk & POS Systems Compact camera modules for self-service kiosks, interactive terminals and smart retail equipment. |
Custom OEM Products Designed for customers who need a camera module integrated into their own hardware. |
The combination of8MP imaging and a compact PCB design provides high-resolution imaging without requiring a conventional webcam enclosure.
With a minimum autofocus distance of approximately5 cm, the module can adapt to different subject distances.
This gives product designers more flexibility when developing applications involving documents, objects, components and equipment.
Standard UVC support simplifies integration with compatible host devices and software acrossWindows, Mac, Android and Linux.
This makes the module suitable for both prototype development and embedded product applications.
The square PCB configuration is suitable for products with limited internal space.
It provides product designers with a compact starting point that can be further adapted for customized applications.
The biggest advantage for OEM/ODM customers is not simply the 8MP resolution.
We can evaluate different combinations of:
Sensor + Lens + FOV + Focus + PCB + Cable + Connector + Housing
according to the requirements of your product.
You don't have to redesign your product around a standard camera.
If you have a specific requirement forsize, lens position, working distance, viewing angle, connector or mounting structure, we can evaluate the camera configuration for your project.
Send us your:
Drawing · Sketch · Photo · Dimensions · 3D File · Application Requirements
We'll evaluate the appropriate camera configuration for your project.
Yes. This configuration uses an8MP CMOS image sensor and supports a maximum resolution of3264 × 2448.
Yes. This model featuresautofocus with a minimum focus distance of approximately5 cm.
Yes. The module uses thestandard USB UVC protocol for convenient integration with compatible USB host devices.
The standard configuration supportsWindows, Mac, Android and Linux systems.
The product configuration shown uses a compact28 × 28 mm PCB design.
Other PCB dimensions and shapes can be evaluated for OEM/ODM projects.
Yes. PCB dimensions and shape can be customized according to the available installation space and requirements of the product.
Yes. Different image sensors and resolutions can be considered according to the application's image-quality requirements, performance requirements and target cost.
Yes. Lens specifications such asfield of view, focal length and focus characteristics can be evaluated according to the application.
Yes.Autofocus and fixed-focus configurations can be considered depending on the application requirements.
Yes. The module can be supplied withUSB Type-C, USB Type-A or customized cable/connector configurations, depending on the project requirements.
Yes. We can support customized camera modules fromsample development through production, including sensor, lens, PCB, cable, connector and mechanical customization.
