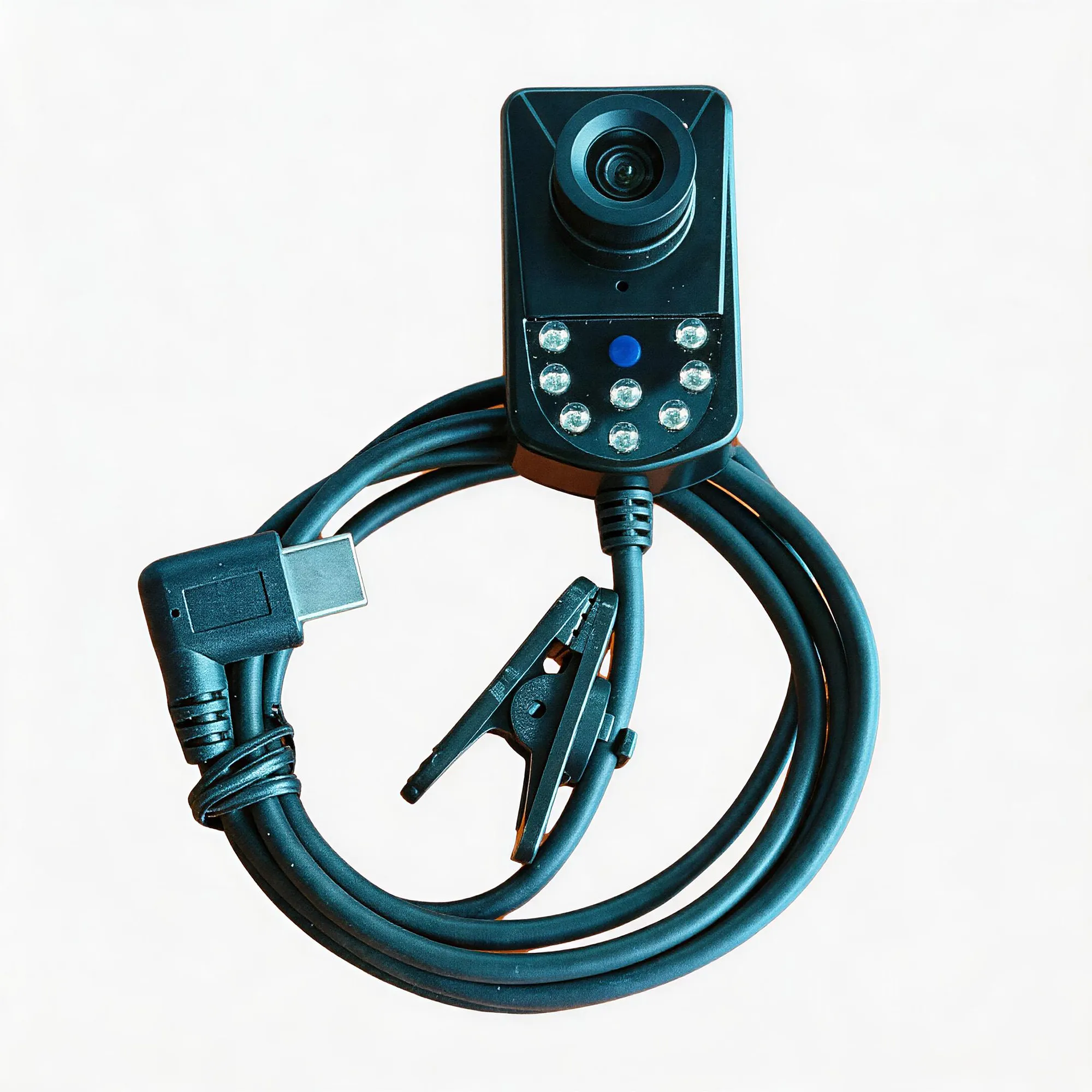

Compact USB Camera with Infrared Night Vision1.This compact Android USB night vision camera is designed for applications where visibility in low-light or dark environments is required.
2. It features a 1/2.8-inch CMOS sensor with 2MP resolution, supporting video output up to 1920 × 1080 at 30fps. The integrated 98° wide-angle lens provides a broad viewing area for inspection and monitoring applications.

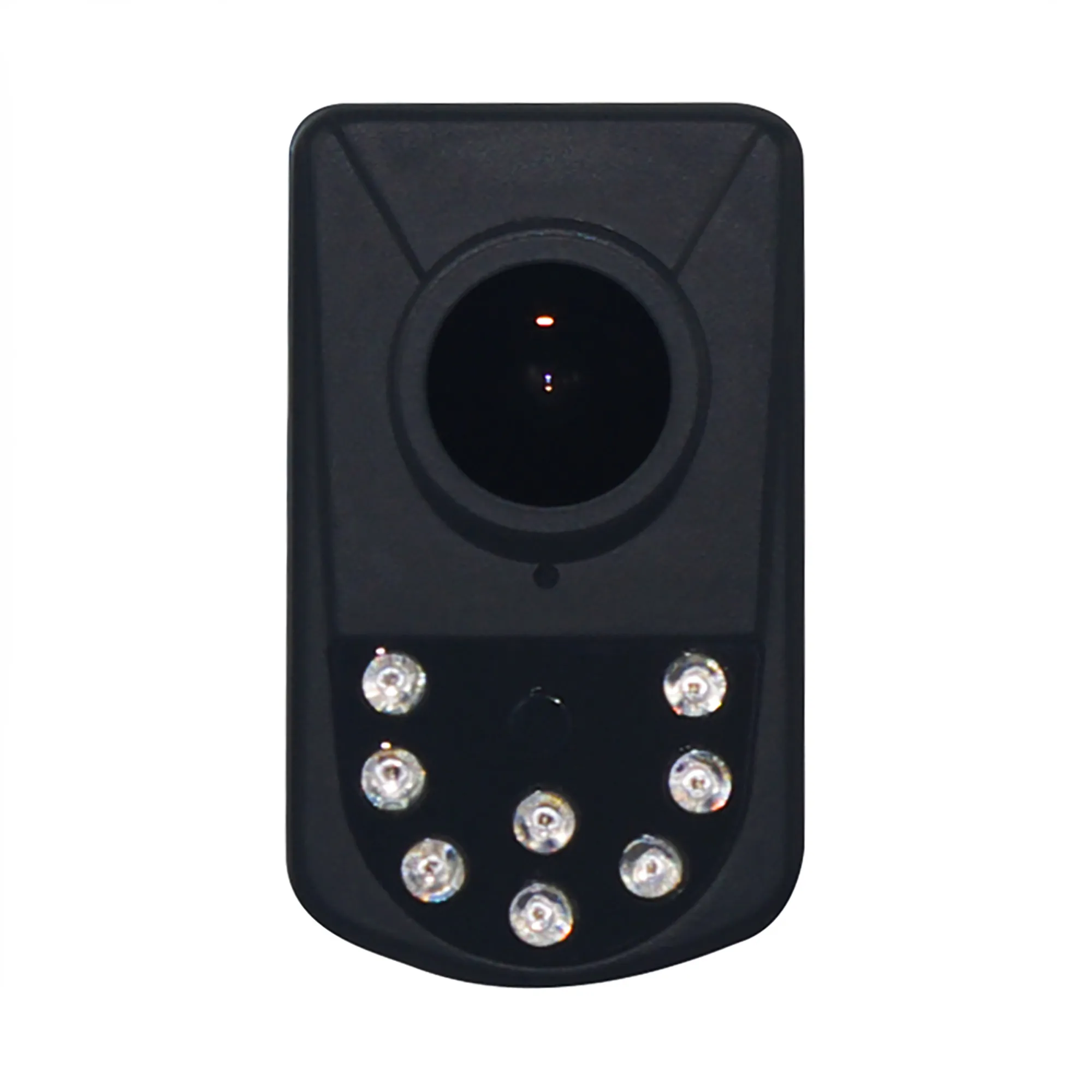

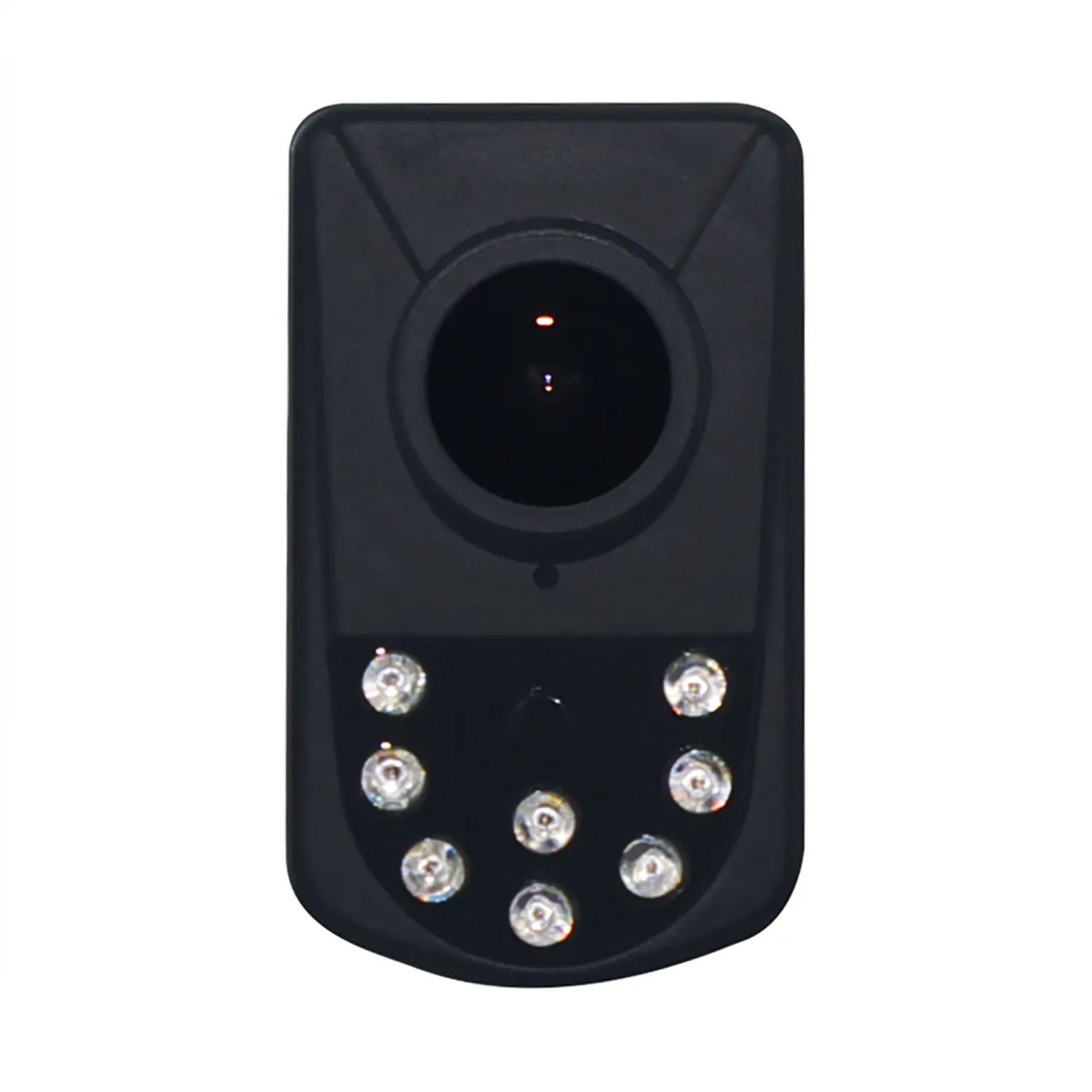

3. For night-time operation, the camera incorporates eight 850nm infrared LEDs together with a light sensor and a mechanical IR Cut Filter (ICR). The IR illumination system is designed to provide additional lighting when ambient light is insufficient.

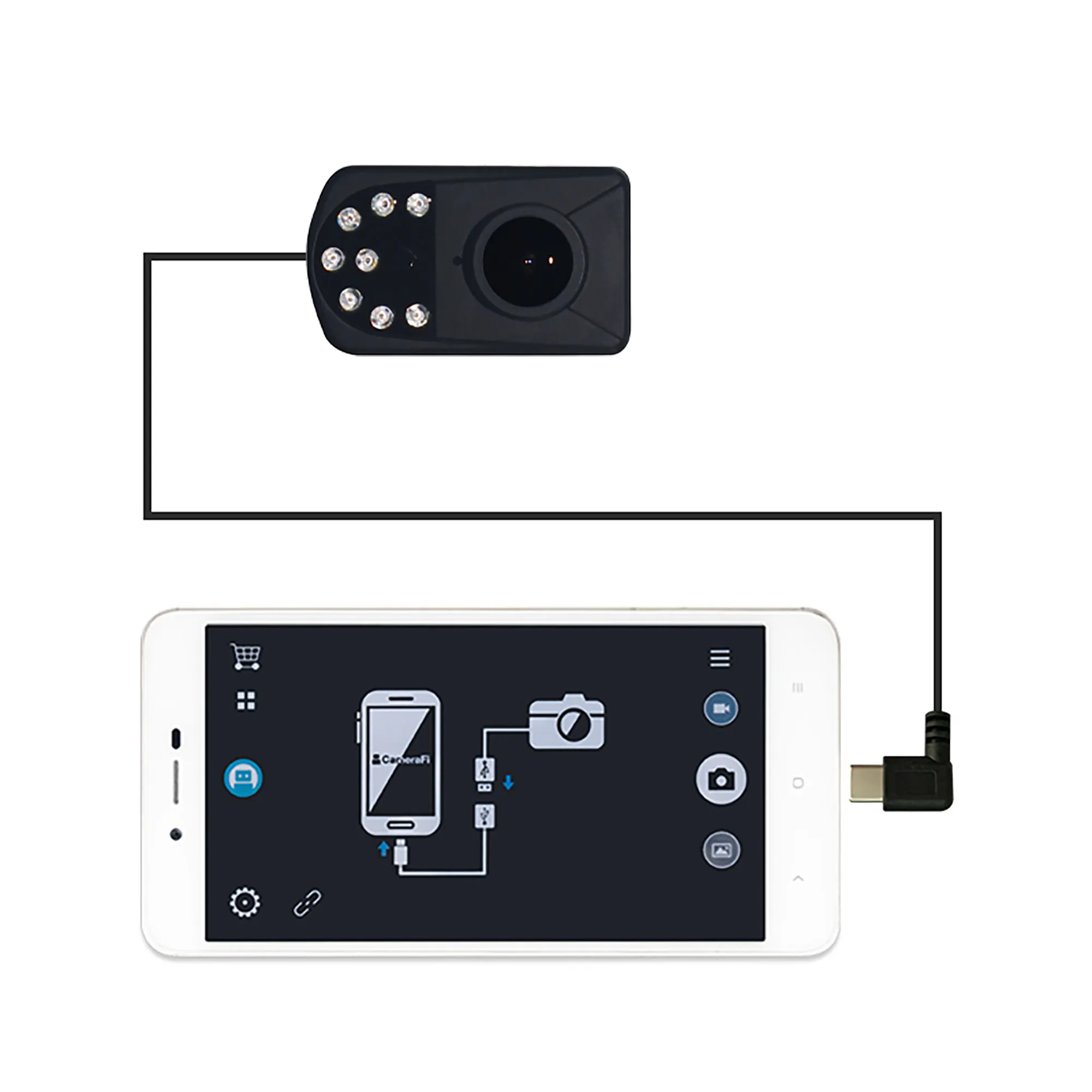

4. The camera connects to compatible Android devices through USB OTG and can be used with supported camera applications such as CameraFi or USB Camera. The system supports camera controls including automatic/manual adjustment, saturation, contrast and sharpness.
5. With its compact body, optional Type-C or Micro USB connector, customizable cable length and flexible mounting configuration, the camera can be adapted for different portable, wearable, inspection and monitoring applications.
1). Infrared Night Vision:Equipped with 8 infrared LED diodes operating at an 850nm wavelength, the camera provides additional illumination for low-light and dark environments.
The built-in light sensor automatically works with the day/night switching system to support night vision operation.
2). 2MP Full HD Imaging:The camera uses a 1/2.8-inch CMOS sensor and provides up to 1920 × 1080 resolution at 30fps, delivering clear Full HD video for everyday inspection and monitoring applications.
3). 98° Wide-Angle View:The integrated 98° wide-angle lens provides a broad field of view, making it easier to capture more of the surrounding area without requiring the camera to be positioned directly in front of the target.

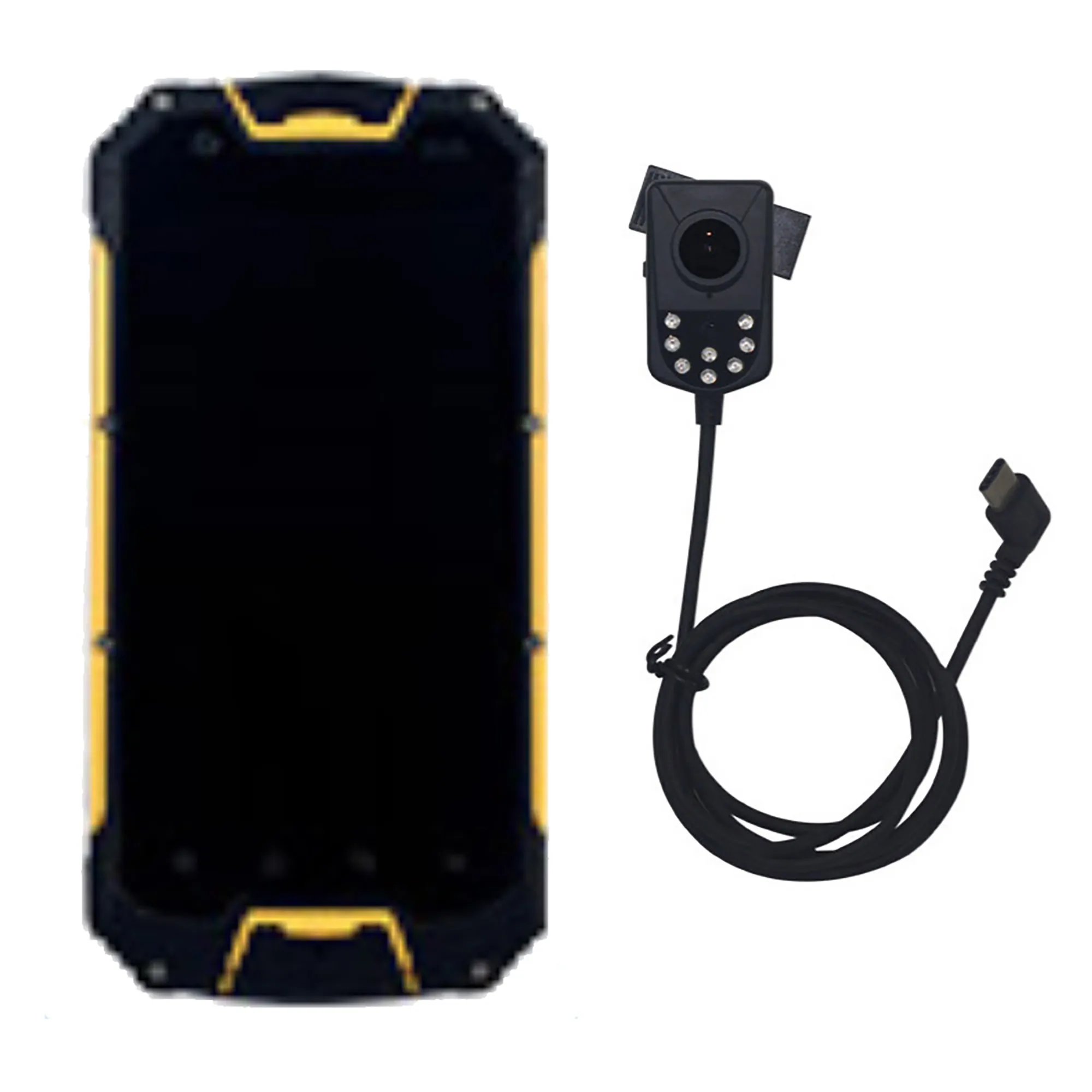

4). Android OTG Connectivity:Designed for use with OTG-compatible Android devices, the camera can connect directly to compatible smartphones and other Android devices.
The specification supports Android 4.3 and above, subject to the OTG capability and compatibility of the host device.

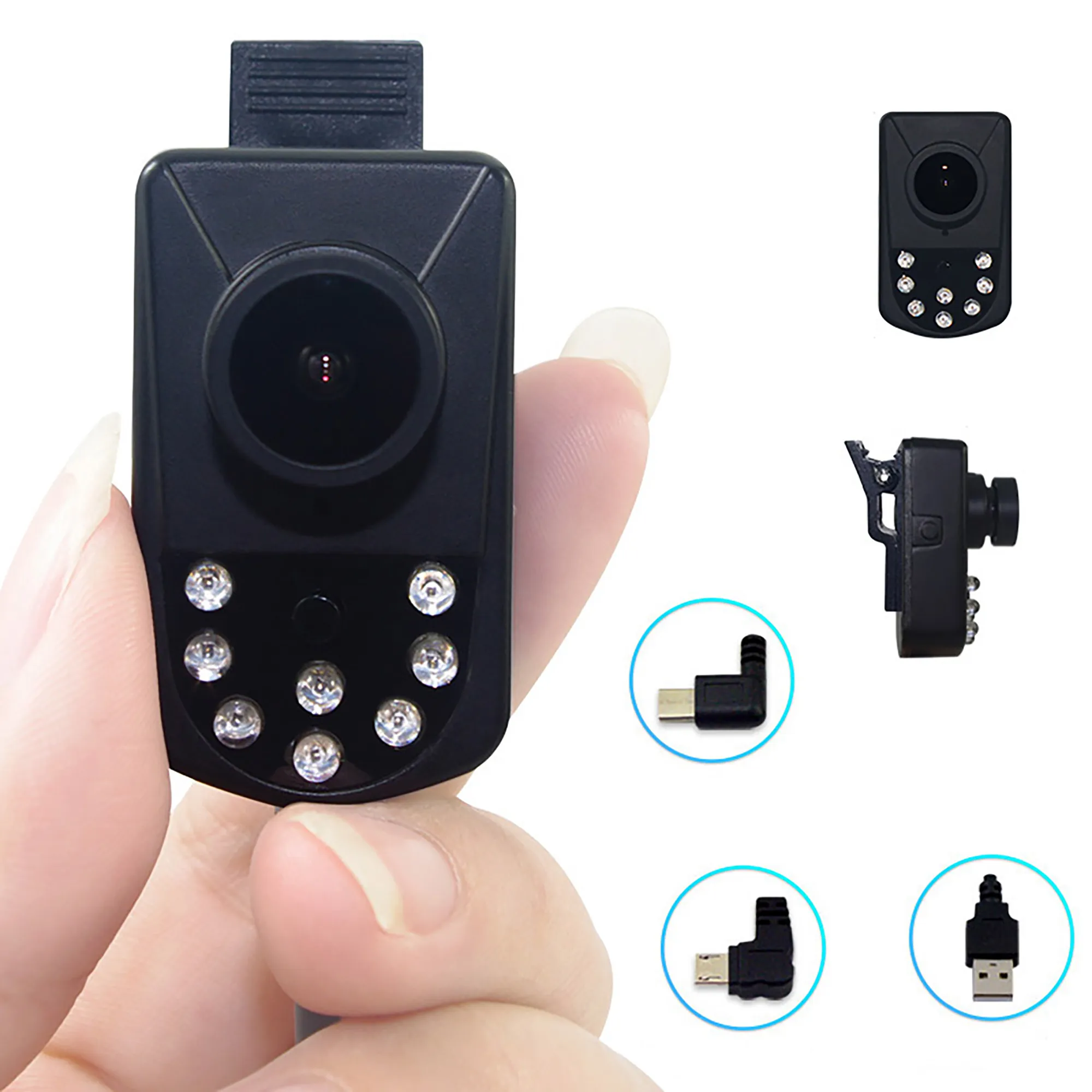

5). Type-C or Micro USB:The camera can be supplied with a Type-C or Micro USB connector, depending on the customer's device and application requirements.
Cable length is 80 cm as standard, with customized cable lengths available for specific projects.
6). Flexible Mounting Design:As shown in the product images, the camera can be combined with a compact mounting bracket that allows approximately 360° adjustment, making it convenient to position the camera according to different viewing angles and applications.
Compact USB Camera with 8 IR LEDs for Clear Imaging in Low-Light and Dark EnvironmentsDesigned for Android devices with OTG support, this compact night vision camera combines a 2MP CMOS sensor, 98° wide-angle lens, and eight 850nm infrared LEDs. With Type-C or Micro USB connectivity and flexible mounting options, it is suitable for inspection, monitoring, wearable applications, and other situations where visibility in dark environments is important.
1. What resolution does the camera support?The camera features a 2MP CMOS sensor and supports video output up to 1920 × 1080 at 30fps.
2. Does this camera support night vision?Yes. It is equipped with 8 infrared LEDs operating at 850nm for low-light and night vision applications.
3. Can the camera connect directly to an Android phone?Yes, it is designed for OTG-compatible Android devices. The actual compatibility depends on the Android device and its OTG support.
4. What Android version is supported?The specification indicates support for Android 4.3 and above, provided that the device supports USB OTG.
5. Does the camera have a Type-C connector?Yes. Type-C and Micro USB versions are available.
6. Can the cable length be customized?Yes. The standard cable length is 80cm, and customized cable lengths are available.
7. Does the camera have a microphone?Yes. The camera has an embedded microphone and can support audio and video recording through compatible applications.
8. What applications can be used with the camera?The specification lists CameraFi and USB Camera as compatible applications. App compatibility can vary depending on the Android device.
9. Does the camera have infrared LEDs?Yes. It has 8 infrared LEDs with an 850nm wavelength and a 60° available angle.
10. Can the camera be mounted at different angles?Yes. The optional mounting configuration shown in the product images allows flexible positioning, including approximately 360° adjustment.
