5MP Mini Autofocus USB Camera Module with FPC

A Compact Camera Designed to Fit Into Your Product

● The DB06-AF-300-FPC is a compact 5MP autofocus USB camera module designed for integration into wearable devices, portable equipment, embedded systems and customized electronic products.

● With a slim 9 × 62 mm form factor, FPC-connected structure and autofocus capability from approximately 5 cm to infinity, the module provides both flexible mechanical integration and clear imaging across different working distances.

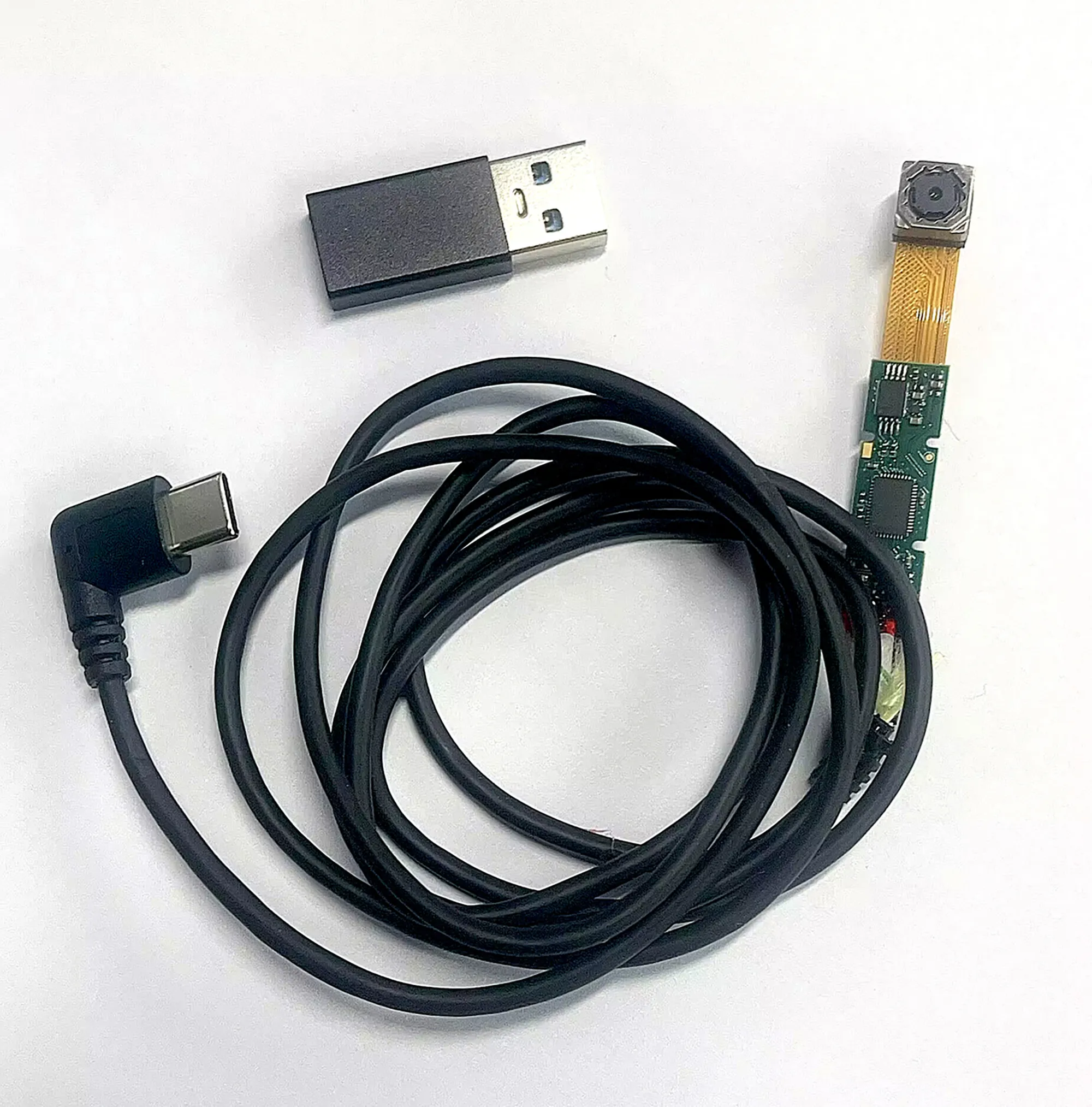

● The camera supports resolutions up to 2592 × 1944, with video output through a USB interface and compatibility with Windows, Mac, Linux and Android platforms.

● More importantly, the standard module is only a starting point. For OEM/ODM projects, the module size, PCB layout, FPC, lens, FOV, connector, cable and camera orientation can be evaluated according to your product design.

● You design the product. We help make the camera fit.

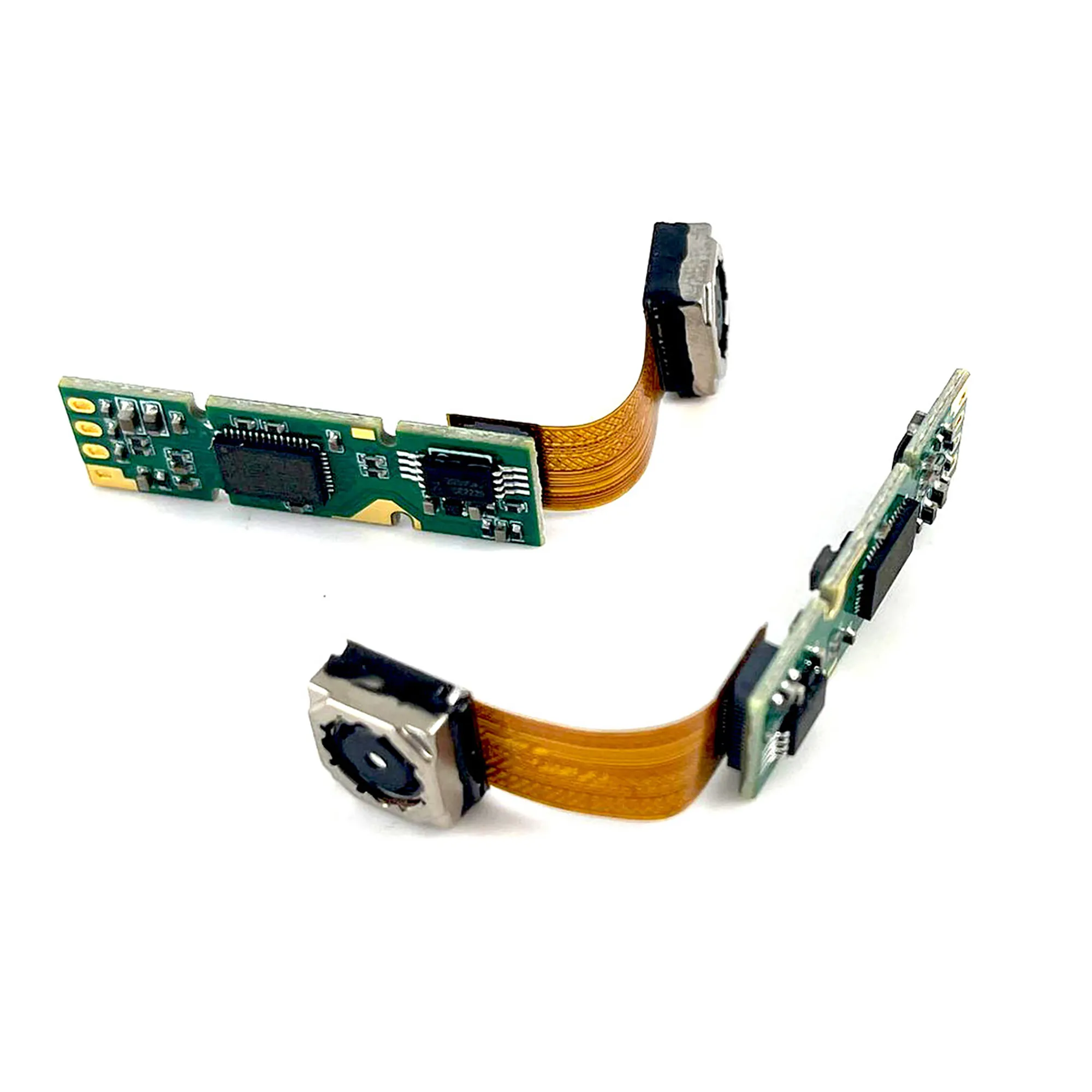

Compact FPC Design;Small Camera;More Design Freedom.

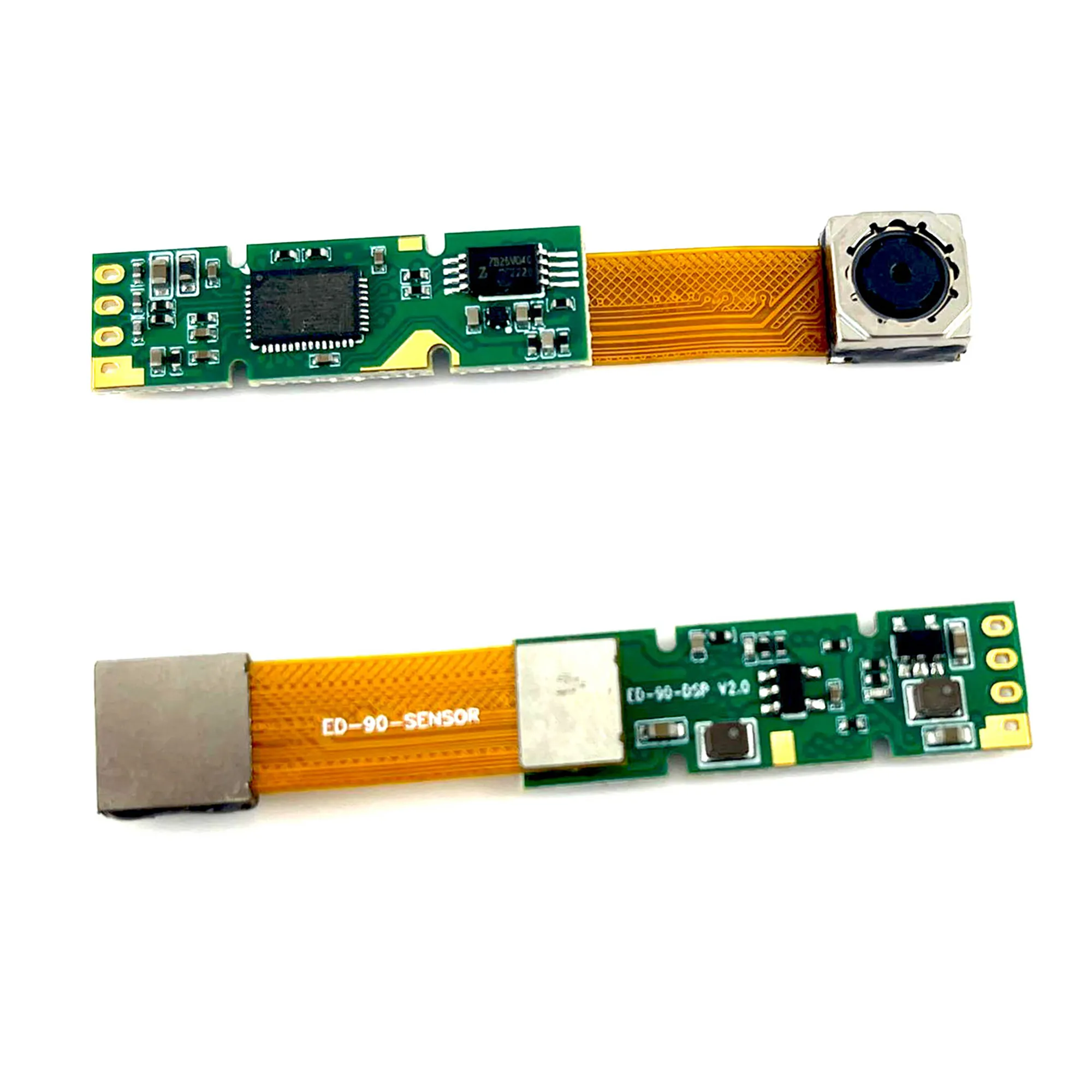

The standard module measures approximately 9 × 62 mm, providing a slim form factor for products with limited internal space.

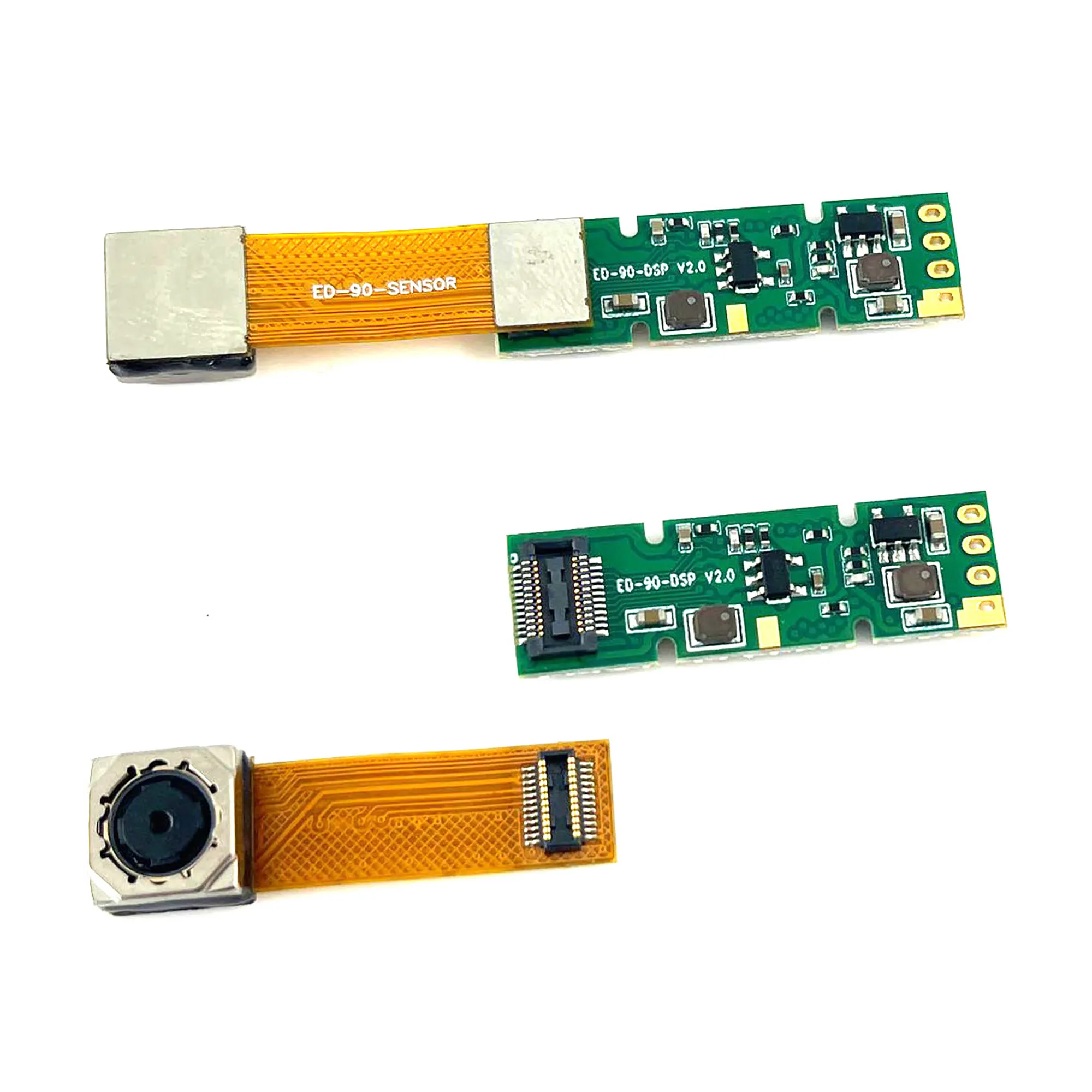

The FPC-connected structure allows greater flexibility when positioning the camera and electronics inside a custom enclosure.

This makes it particularly suitable for products where a conventional webcam or larger camera module cannot fit.

1). 5MP Autofocus Imaging

Clear Images at Different Distances

The module uses a 1/4-inch 5MP CMOS sensor and supports image resolutions up to 2592 × 1944.

Its autofocus system supports a focus range of approximately 5 cm to infinity, allowing the camera to adapt when the distance between the camera and the subject changes.

This is particularly useful for products that need to capture both relatively close objects and more distant scenes.

2). Fast Autofocus for Real-World Applications

Focus Where You Need It

Unlike a fixed-focus camera, the autofocus version can adjust focus according to the subject distance.

It can be useful for:

● Close-up viewing

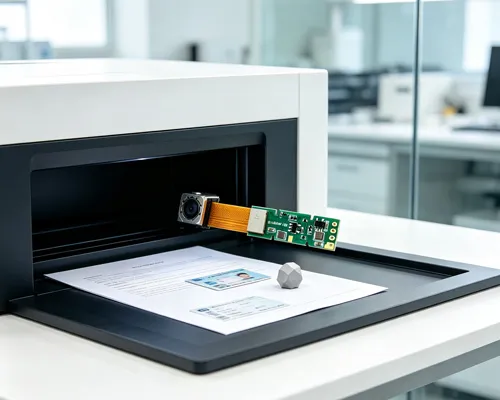

● Document capture
● Product inspection

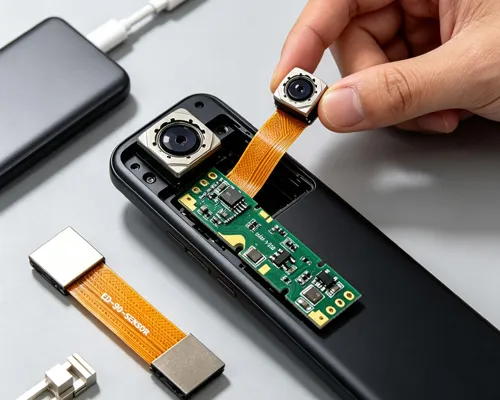

● Wearable vision
● Portable devices
● Object recognition
● Interactive equipment

The autofocus performance can be further evaluated according to the requirements of a specific OEM project.

3). Low Power for Portable Products

Designed for Compact & Embedded Devices

The module operates from 5V USB power with a typical working current of approximately 150mA and sleep current of approximately 10mA according to the supplied specification.

This makes it suitable for compact products where both power consumption and internal space are important design considerations.

4). Multiple Lens Options

Choose the Optics for Your Application

Different lens configurations are available depending on the application.

The standard specification lists a 66° diagonal FOV, while different lens options can be evaluated for specific projects.

Depending on the product design, we can evaluate:

● Field of view
● Lens type
● Working distance
● Camera orientation
● Mechanical installation requirements

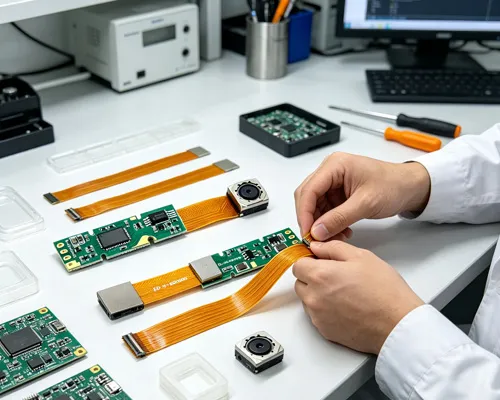

5). Designed for Custom Integration

Your Product. Your Enclosure. Your Camera Configuration.

A standard camera module may work well during development but become difficult to integrate into the final product when space, appearance or mechanical requirements are strict.

For OEM/ODM projects, customization can be evaluated for:

● Module dimensions
● PCB shape and layout
● FPC length and arrangement
● Lens
● FOV
● Connector
● Cable
● Camera orientation
● Audio configuration

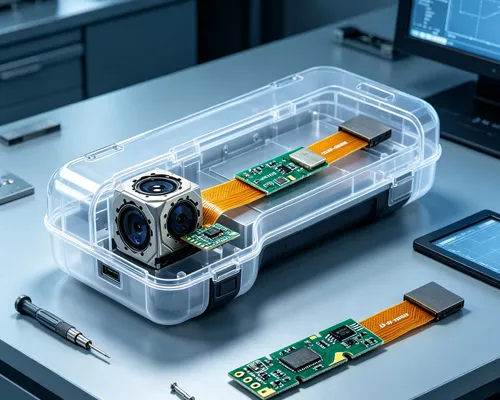

● Housing integration

You can send us your drawing, 3D file, sketch, photo or required dimensions, and we can evaluate a suitable camera configuration for your project.
