USB 3.0 provides significantly more theoretical bandwidth than USB 2.0, offering greater headroom for transmitting high-resolution and higher-frame-rate video streams.
This makes the module well suited to applications where continuous video transmission involves relatively large amounts of image data.

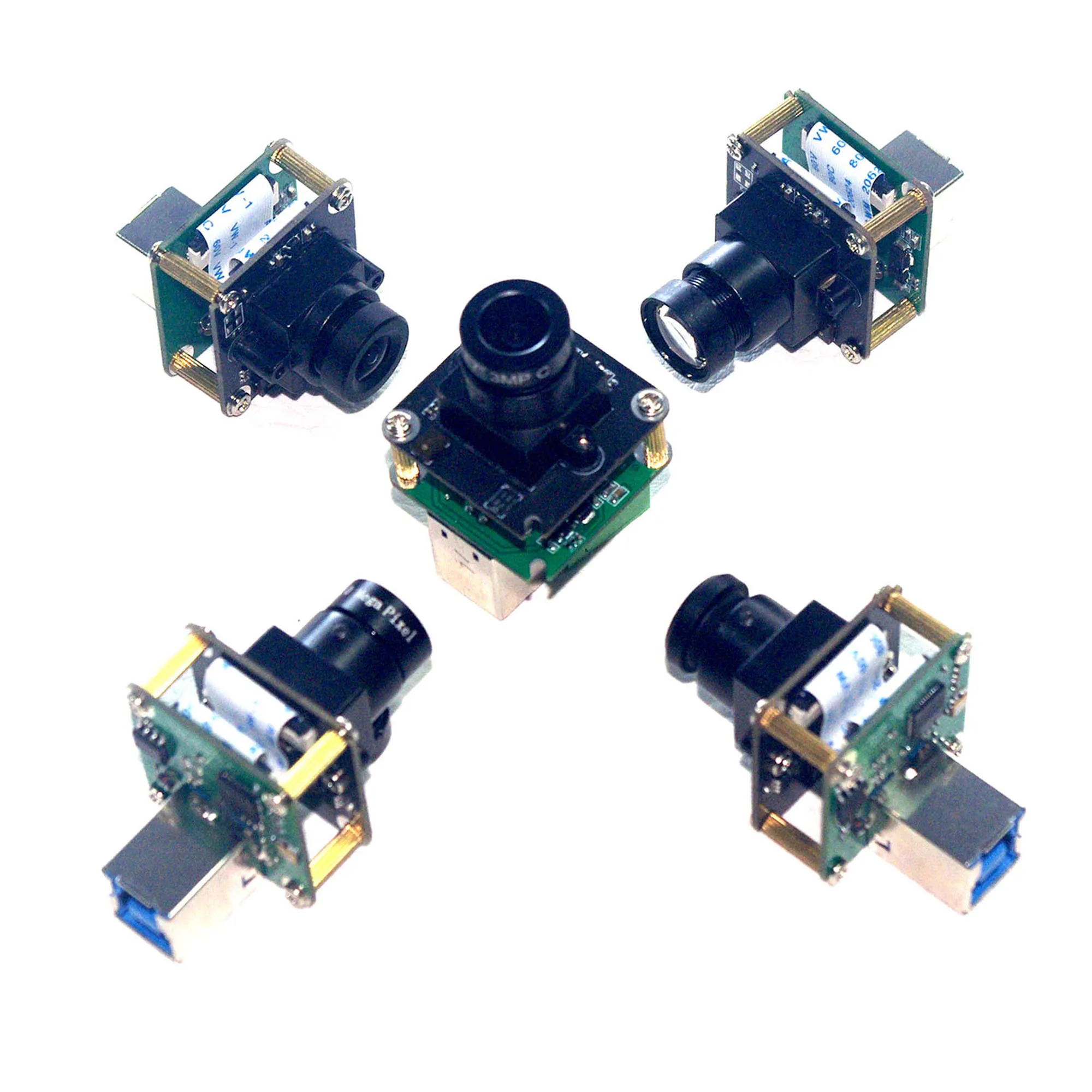

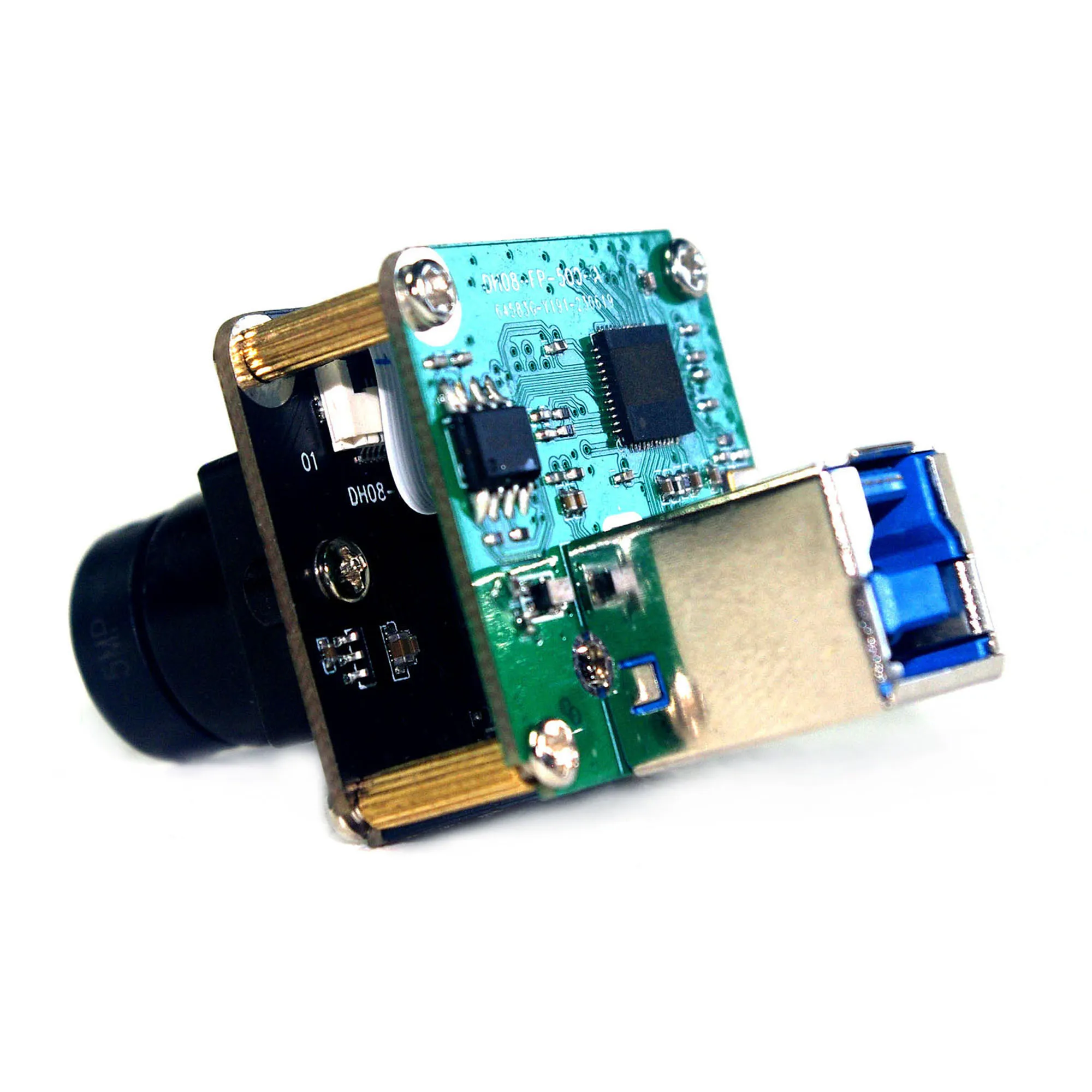

The camera uses a 1/2.5" Sony IMX335 CMOS sensor with a 2.0 × 2.0 μm pixel size and up to 5MP resolution.
The recognizable Sony IMX335 platform makes it suitable for engineers looking for an IMX335 USB camera or Sony IMX335 USB 3.0 camera module for equipment integration.
The module supports 1920 × 1080 at up to 60fps, providing smooth video output for applications involving motion monitoring, real-time imaging and high-frame-rate video.
It also supports:
· 2592 × 1944 @ 25fps
· 2048 × 1536 @ 25fps
· 1920 × 1080 @ 60fps
· 1280 × 960 @ 60fps
· 1280 × 720 @ 60fps
The module supports both YUV and MJPG video stream formats, providing flexibility for different host systems and video-processing requirements.
Different lens configurations can be selected according to the required field of view, working distance and installation position.
Available focal-length options include:
3mm / 8mm / 16mm / 24mm
This makes the camera adaptable to different equipment and inspection environments.

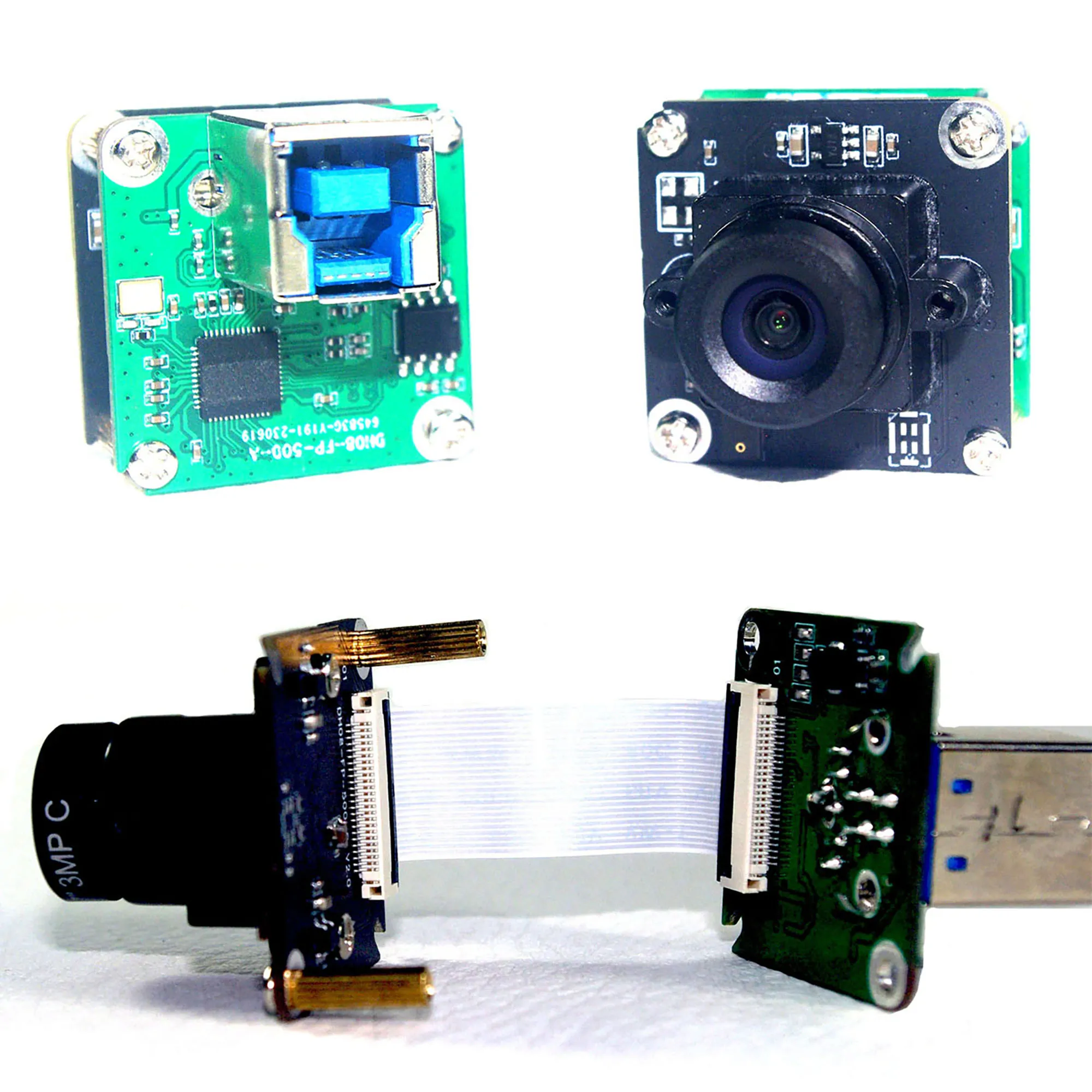

The compact square PCB design makes it easier to integrate the camera into space-constrained equipment and embedded systems.
Rather than being positioned as a general-purpose webcam, this camera module is designed for application-specific integration, allowing manufacturers to select the appropriate lens, cable and camera configuration for their equipment.

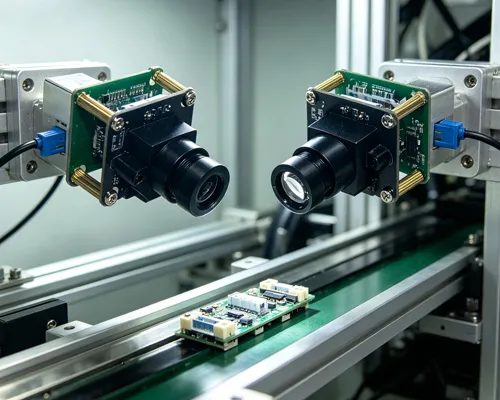

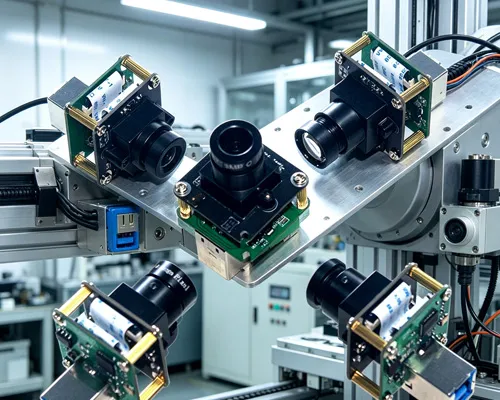

Industrial Inspection For visual inspection of components, products, machines and production processes where higher-bandwidth video transmission is required. |
Machine & Equipment Integration Suitable for integrating USB cameras into machines, automated equipment and specialized inspection systems. |
High-Speed Video The 1080p 60fps capability makes the module suitable for applications requiring smoother video and real-time imaging. |
Embedded Imaging Systems The compact 28 × 28mm PCB allows the camera to be integrated into embedded devices, instruments and custom electronic equipment. |

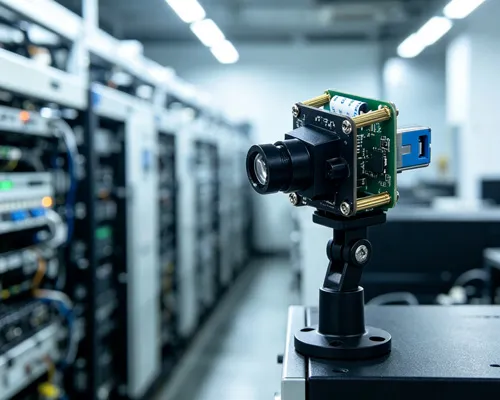

Equipment Monitoring Suitable for applications requiring continuous video transmission from equipment to a computer or embedded host. |

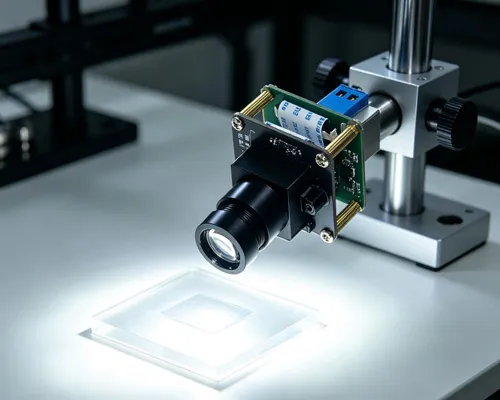

Laboratory & Research Equipment Can be integrated into laboratory instruments, testing equipment and research systems requiring USB video capture. |
Smart Devices Suitable for intelligent equipment and custom devices that require an integrated USB camera. |
OEM / ODM Camera Integration Designed for manufacturers who need a customized USB camera solution for their own products or equipment. |
Designed for applications where USB 2.0 bandwidth may be limiting, providing more bandwidth headroom for high-data video streams.
The 5MP Sony IMX335 sensor provides a well-defined imaging platform for engineers developing industrial and embedded camera applications.
Supports Full HD video at up to 60fps, making it suitable for smooth real-time video and motion-related applications.
Multiple focal lengths—including 3mm, 8mm, 16mm and 24mm—allow the optical configuration to be selected according to the equipment and application.
The small PCB footprint makes it easier to integrate the camera into custom equipment where installation space is limited.
The module is designed around equipment integration rather than a fixed consumer-webcam configuration, making it suitable for customized camera projects.
Your Product. Your Size. Your Camera.
USB 3.0 provides a theoretical maximum bandwidth of 5 Gbps, compared with 480 Mbps for USB 2.0. The higher interface bandwidth provides more headroom for data-intensive video applications.
Actual camera performance also depends on factors such as the sensor, video format, host controller and cable.
The DH08-FP-500 uses a 1/2.5" Sony IMX335 CMOS image sensor with a maximum resolution of 5MP.
Yes. The module supports 1920 × 1080 at 60fps in both YUV and MJPG according to the specification.
The maximum resolution is 2592 × 1944, approximately 5MP, at up to 25fps.
This model is not specified as an autofocus camera. It is designed to support different lens configurations according to the application requirements.
Current lens options include 3mm, 8mm, 16mm and 24mm focal lengths. The appropriate lens can be selected according to the required field of view and working distance.
Yes. Its USB 3.0 interface, compact 28 × 28mm PCB, 5MP sensor and multiple lens options make it suitable for industrial equipment and embedded imaging applications.
Yes. The module supports both YUV and MJPG video stream formats.

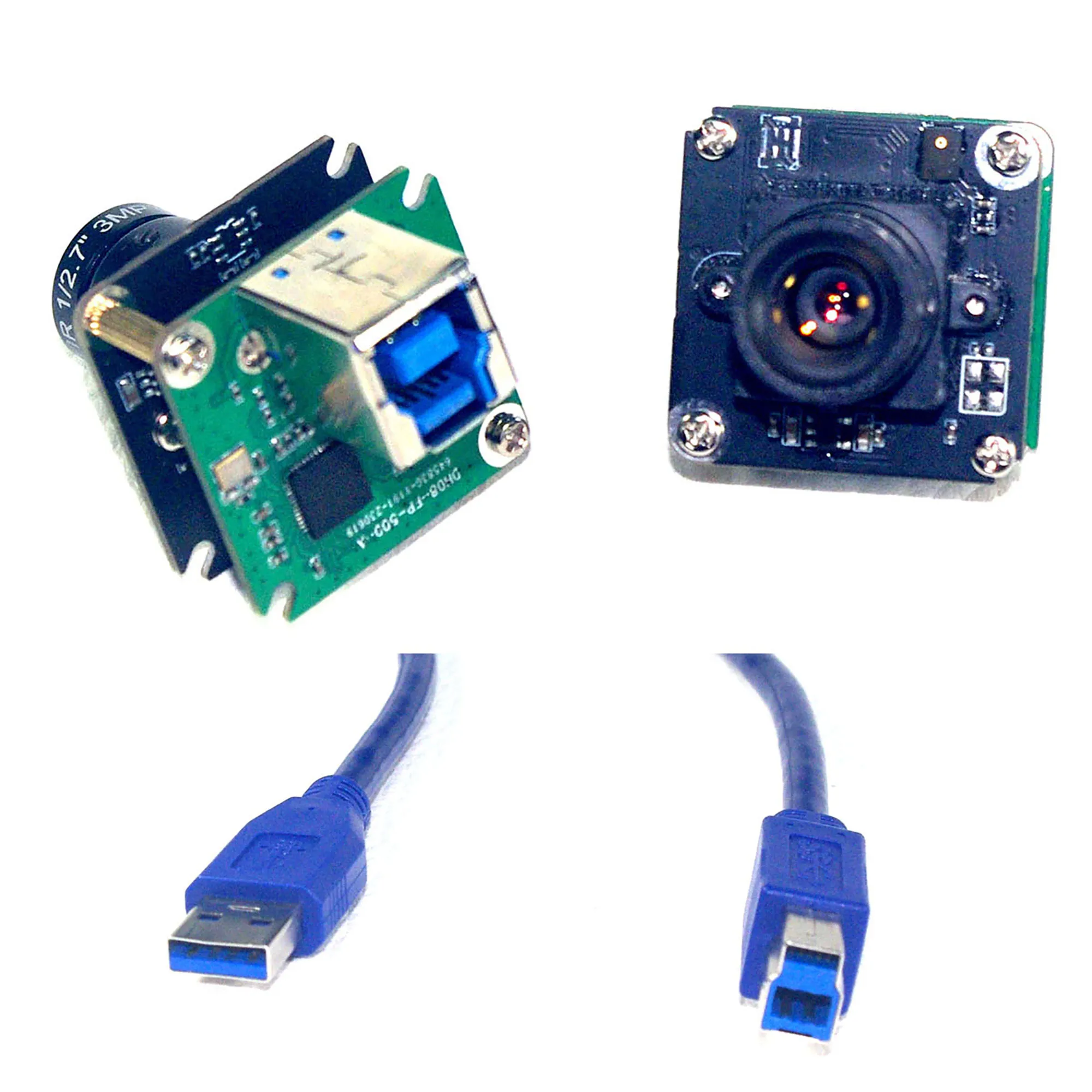

The specification supports Type-A and customized USB options. Cable and connector configurations can be discussed according to the requirements of an OEM/ODM project.
An internal digital microphone is available as an optional configuration.
