GDH08-FP-100 Global Shutter USB UVC Camera

1). Global Shutter for Fast-Moving Subjects

The global shutter sensor captures the entire image simultaneously, making the GDH08-FP-100 particularly suitable for applications involving rapid movement, vibration and motion analysis.

It helps minimize the motion distortion that can occur when capturing fast-moving objects with conventional rolling shutter cameras.

Global Shutter → Fast Motion → Reduced Motion Distortion → More Accurate Image Capture

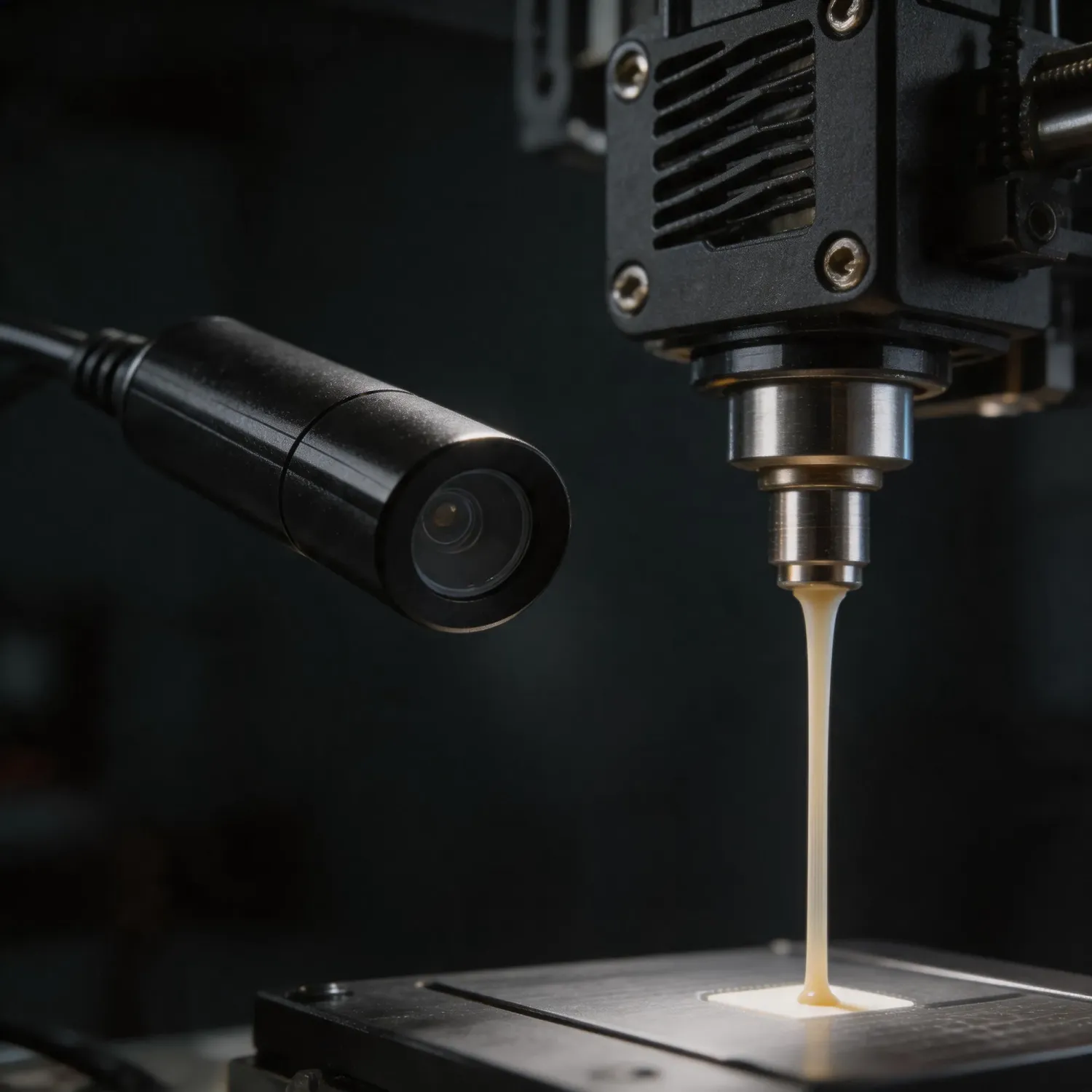

2).High-Speed Imaging up to 180FPS

The GDH08-FP-100 is designed for high-speed imaging, supporting frame rates of up to 180FPS at lower resolutions.

This makes it suitable for visualizing rapid movement, analyzing dynamic processes and capturing fast-changing events.

Frame Rate Options

Resolution	Maximum Frame Rate
1280 × 1024	100 FPS
1280 × 720	100 FPS
1024 × 768	100 FPS
800 × 600	180 FPS
640 × 480	180 FPS

3).Standard USB UVC Connectivity:
The camera uses a standard USB UVC interface, allowing straightforward integration with compatible computers, Android devices and other USB host systems.

4).Compatible Platforms:
Windows | macOS | Android | Linux
USB UVC compatibility makes the camera suitable for applications where easy system integration and customized software solutions are required.

5). Compact Bullet Camera Design

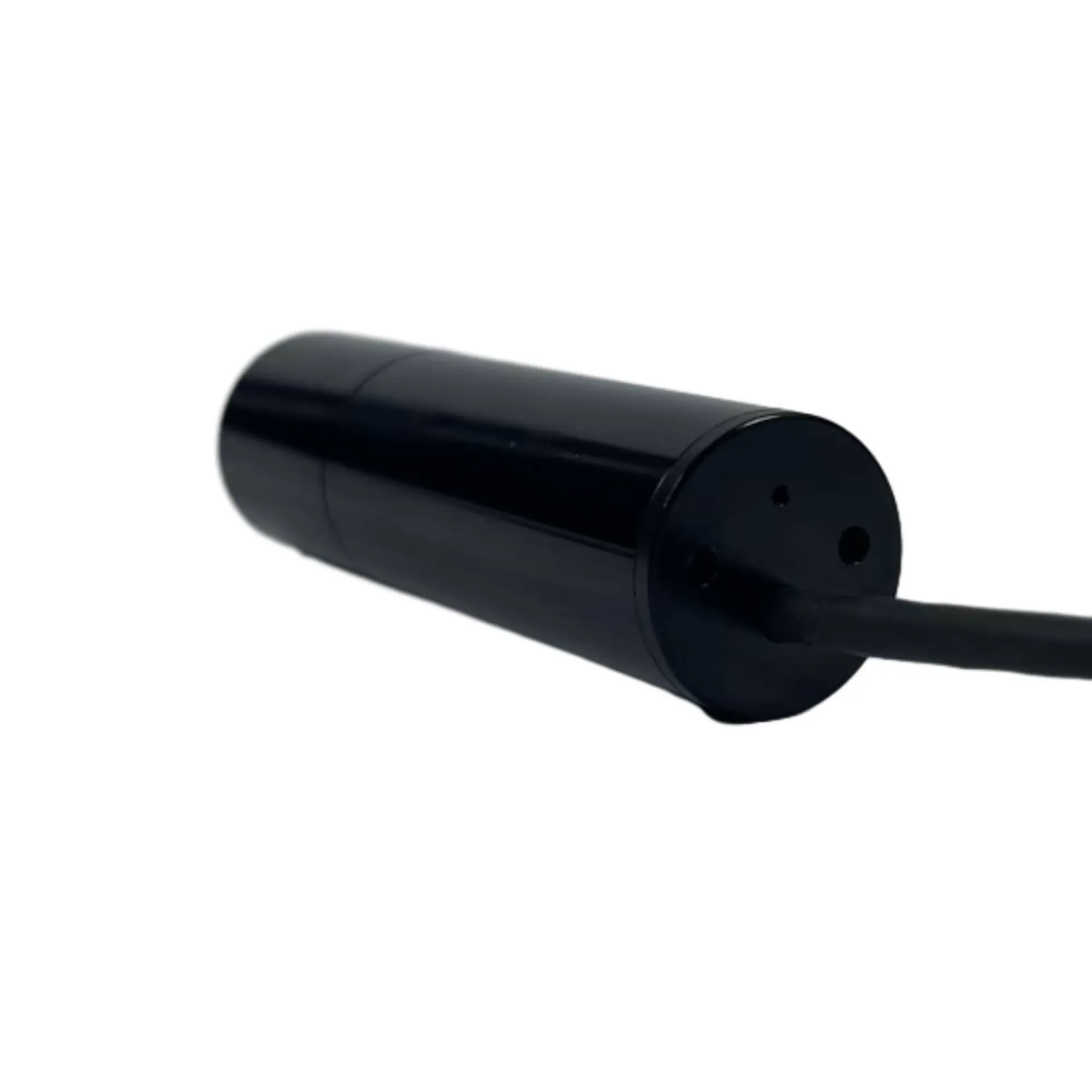

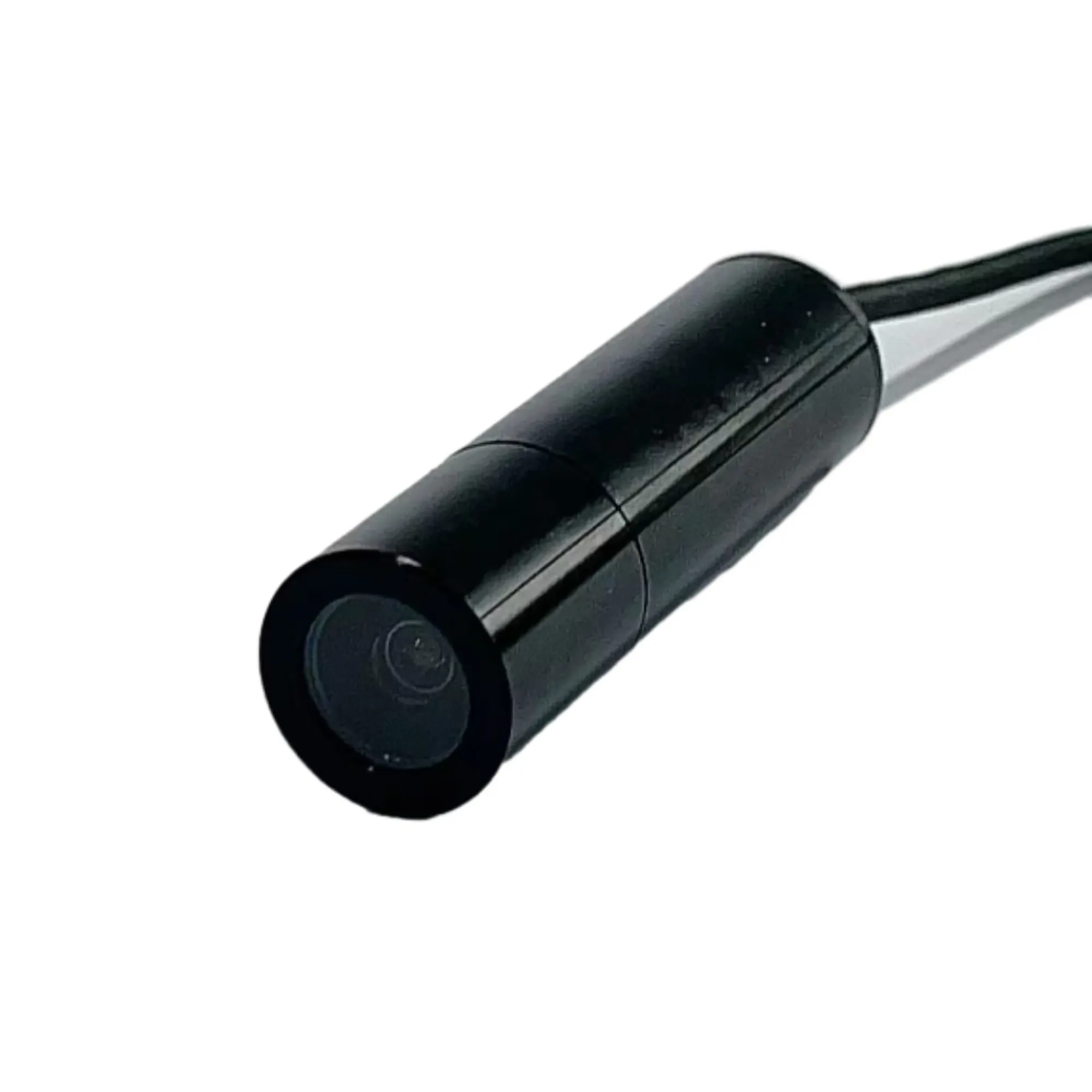

With a cylindrical housing measuring approximately Ø17 × 65 mm, the GDH08-FP-100 is designed for installations where space is limited.

Its compact form factor makes it suitable for integration into:

--Industrial equipment
--Inspection systems

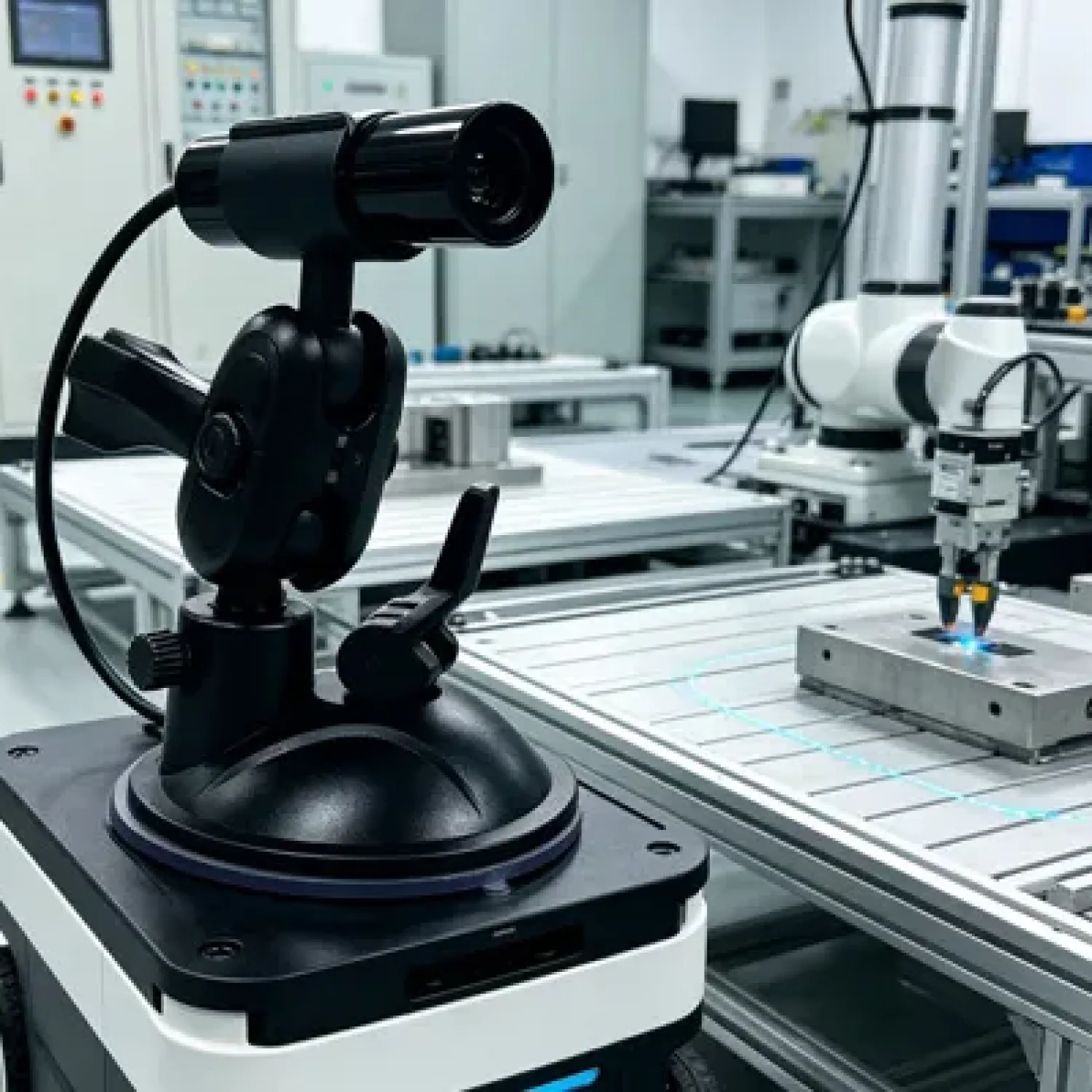

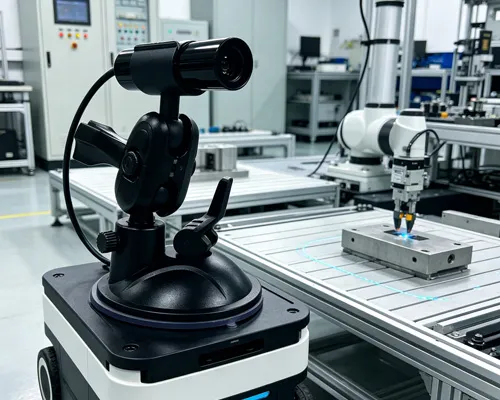

--Robotics
--Wearable devices
--Customized imaging systems
--OEM applications

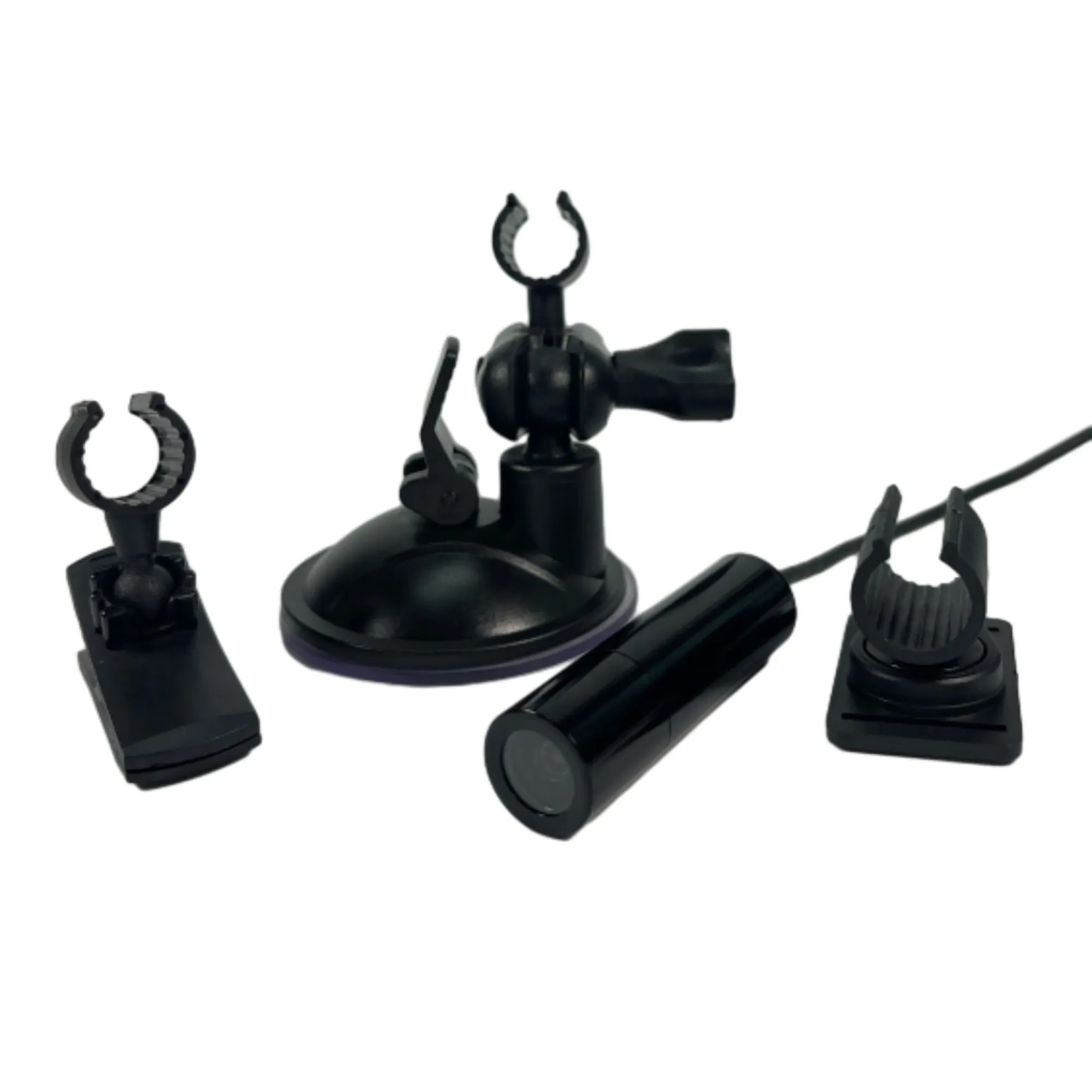

6).Flexible Mounting Options

The compact bullet-style camera can be configured with different mounting solutions for different application requirements.

Wearable Mounting:
For hands-free and first-person-view applications.

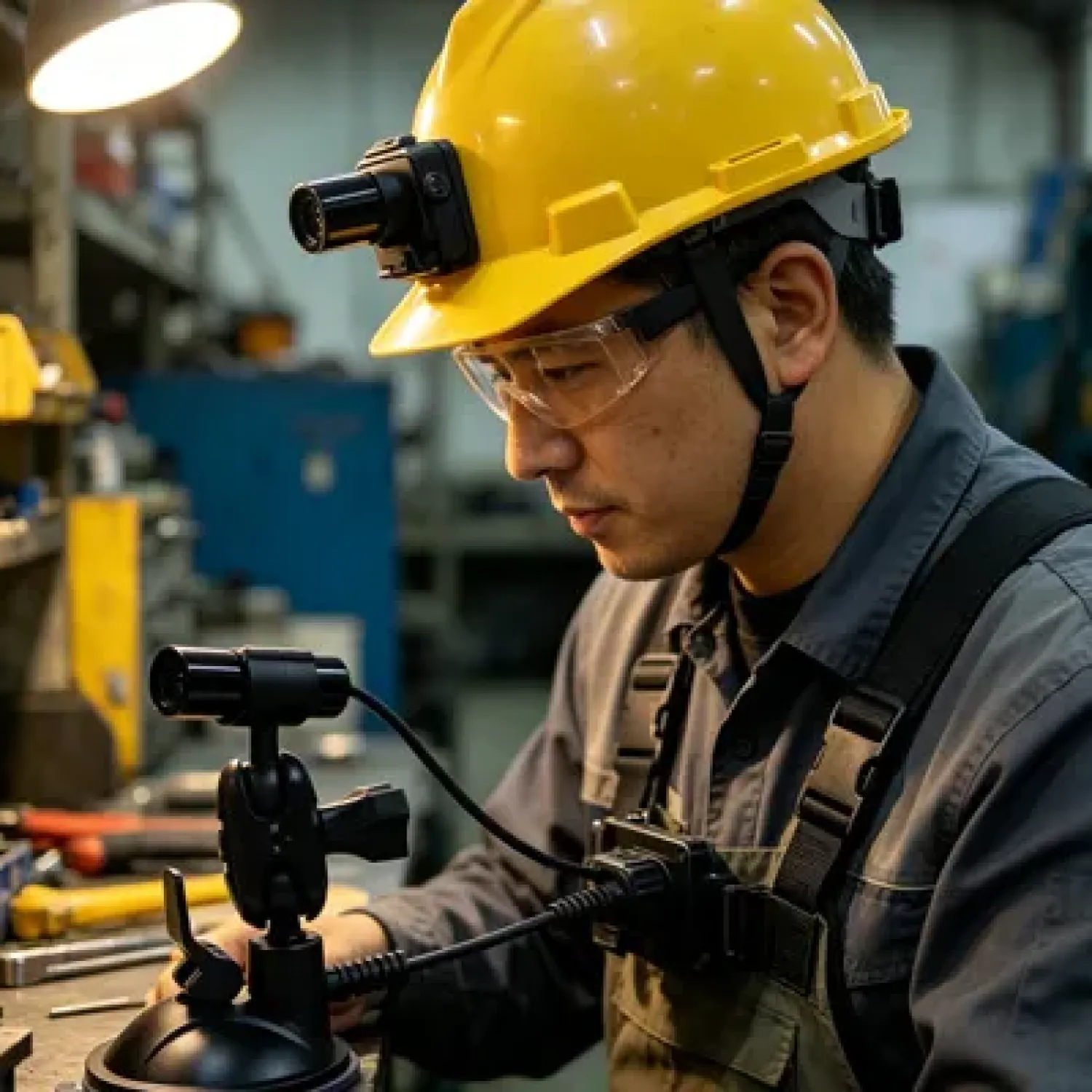

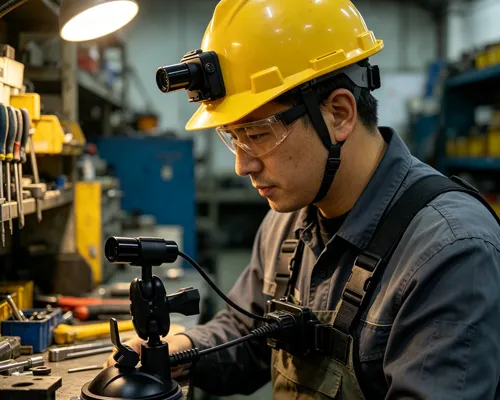

Helmet Mounting:
Suitable for sports, training and professional equipment.

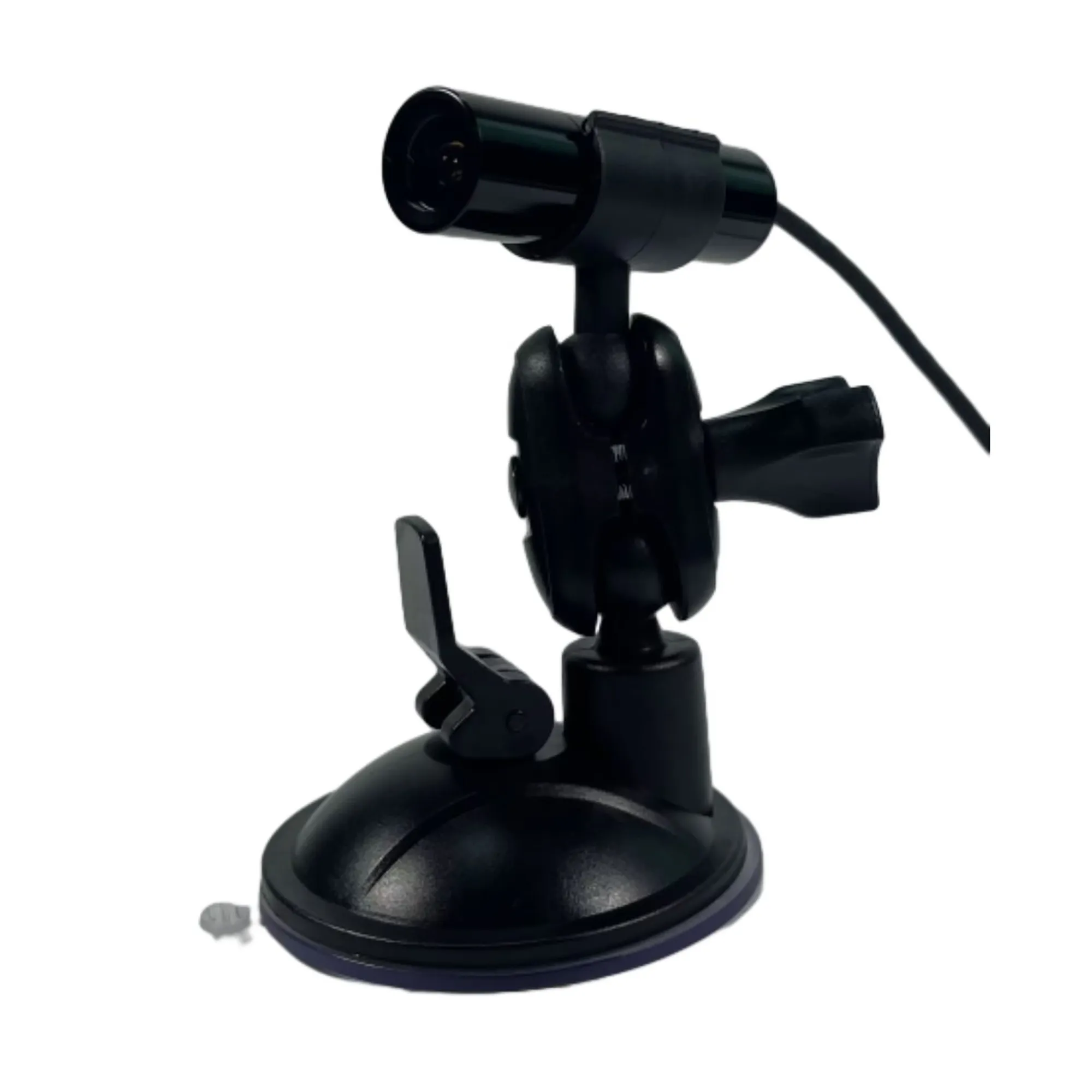

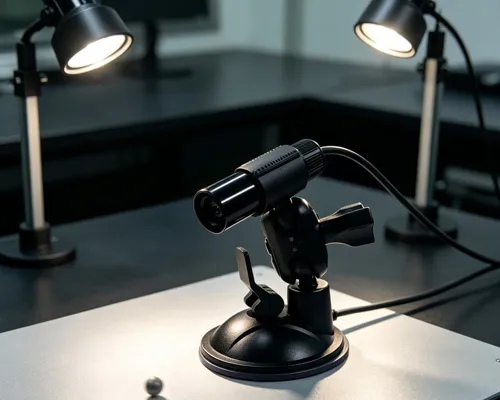

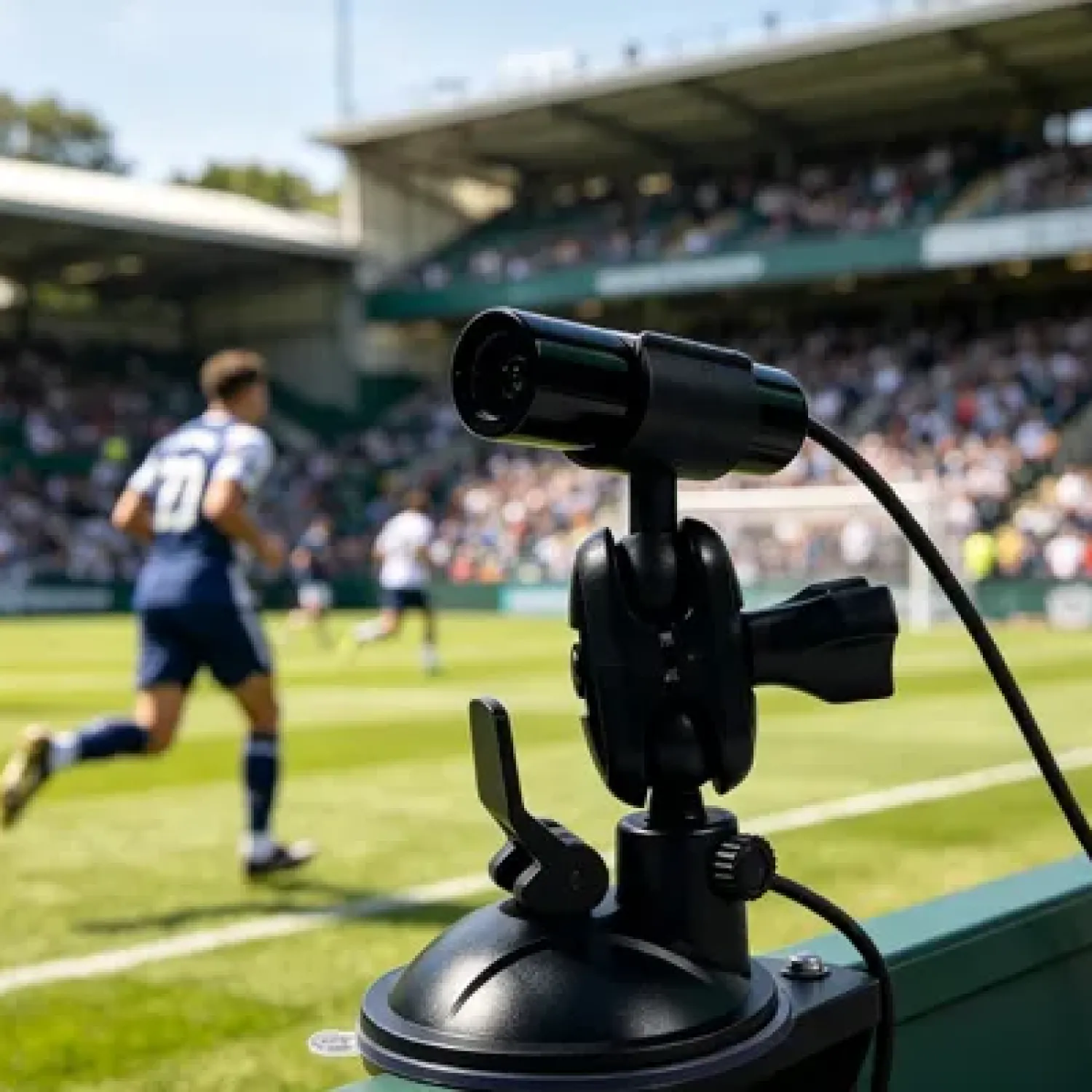

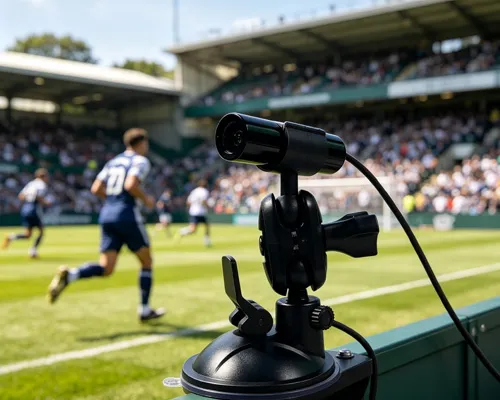

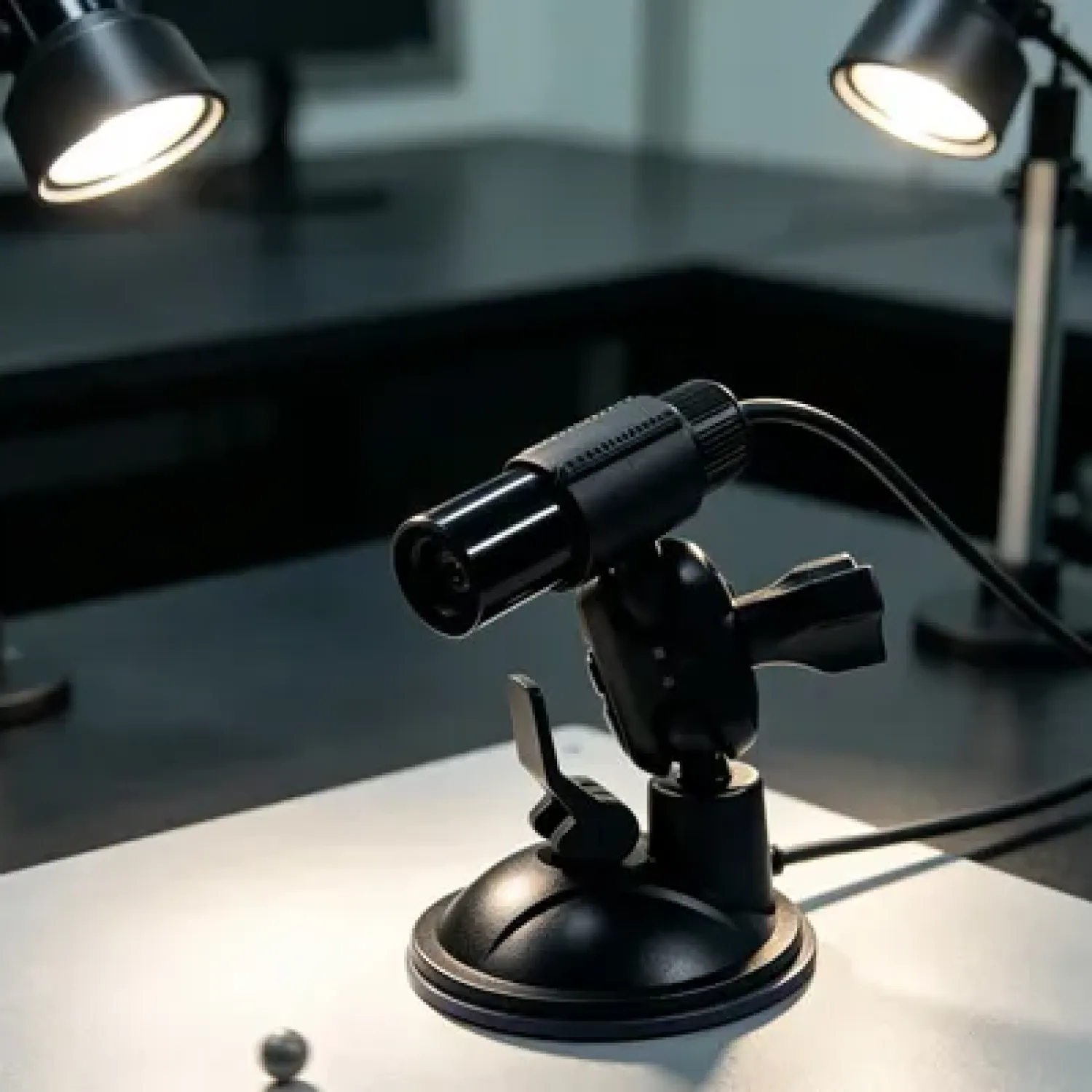

Suction Mounting:
For temporary installation on suitable smooth surfaces.

Custom Mounting:
For specialized equipment and OEM integration.

7). Built-in Microphone

The GDH08-FP-100 features an embedded microphone and supports audio and video recording when used with compatible host devices and software.

This allows the camera to provide both visual and audio input for applications that require synchronized video and sound.

Why Choose the GDH08-FP-100?

1. Global Shutter for Motion Capture:
When capturing fast-moving objects, the global shutter sensor helps reduce motion distortion compared with conventional rolling shutter cameras.

This makes the camera suitable for motion analysis, industrial inspection, robotics and sports applications.

2. Up to 180FPS:
With frame rates of up to 180FPS, the camera can capture rapid movement in greater temporal detail.

It is designed for applications where motion speed is more important than simply increasing image resolution.

3. Compact Industrial Form Factor:
The Ø17 × 65 mm cylindrical housing allows the camera to fit into relatively small spaces and makes it easier to integrate into specialized equipment.

4. Easy USB UVC Integration:
Standard UVC connectivity simplifies integration with compatible host devices and software.

The camera supports Windows, macOS, Android and Linux, providing flexibility for different system environments.

5. Flexible Mounting for Different Projects:
The camera can be combined with wearable, helmet, suction and customized mounting solutions.

This allows the same camera platform to be adapted to different installation requirements instead of being limited to a single application.

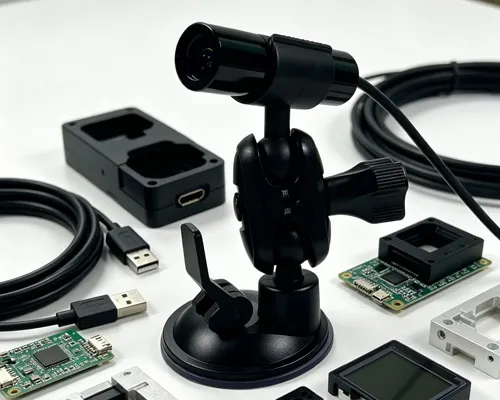

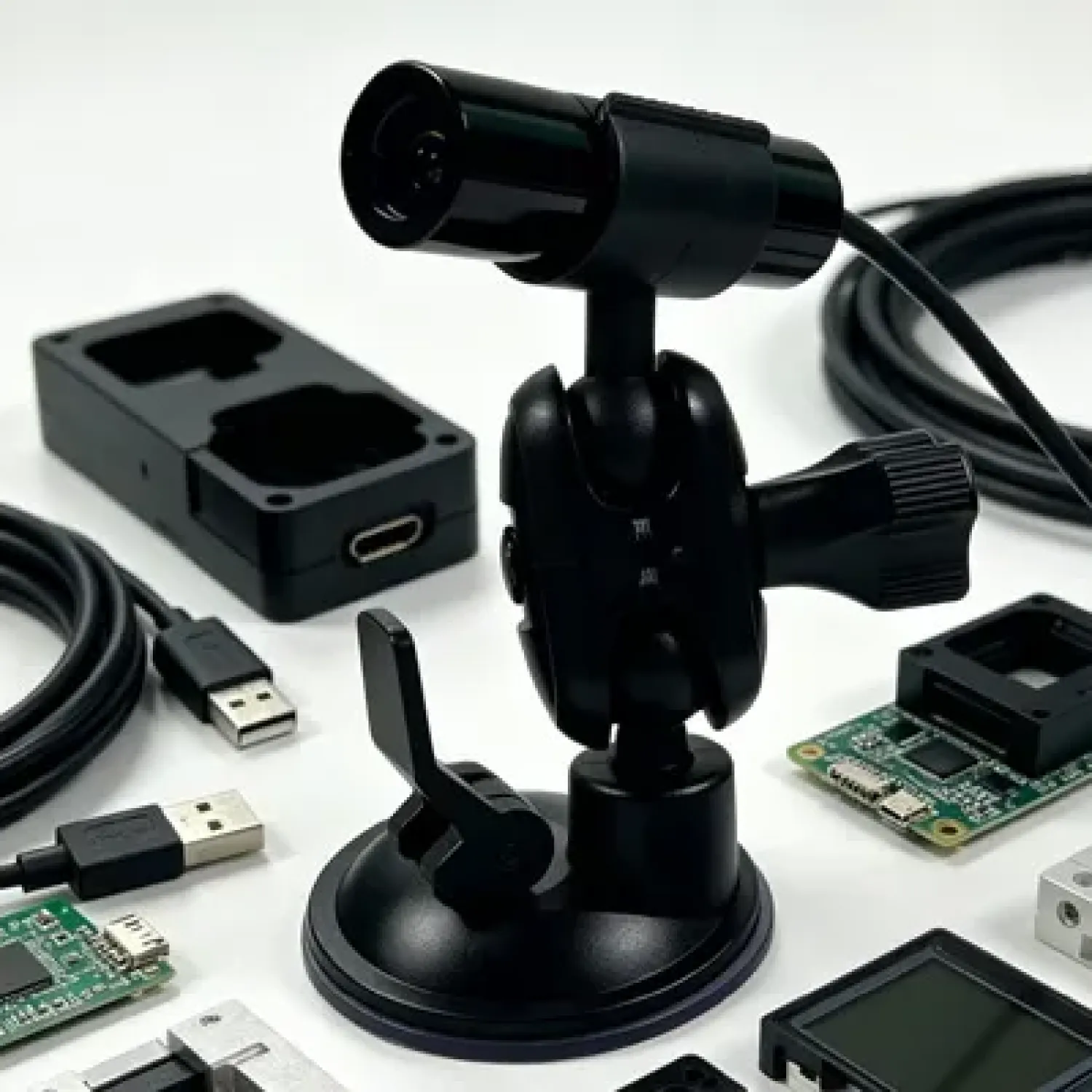

6. Suitable for OEM & Specialized Applications:
The combination of global shutter, high frame rate, compact size and USB UVC connectivity makes the GDH08-FP-100 a practical platform for customized imaging solutions.

For OEM projects, we can also provide different mounting configurations and camera integration options according to application requirements.

1. What is the GDH08-FP-100?
The GDH08-FP-100 is a compact global shutter USB UVC camera designed for high-speed imaging, industrial inspection, motion analysis, robotics, sports and wearable applications.

2. Does the camera support 180FPS?
Yes. The camera supports up to 180FPS at 800 × 600 and 640 × 480 resolutions.
At 1280 × 1024, 1280 × 720 and 1024 × 768, the maximum frame rate is up to 100FPS.

3. What is the advantage of a global shutter sensor?
A global shutter captures the image across the frame simultaneously. This makes it particularly suitable for fast-moving subjects and applications where motion distortion needs to be minimized.

4. Can the camera record 1080P video?
No. The maximum listed resolution is 1280 × 1024. The GDH08-FP-100 is optimized for high-speed imaging rather than 1080P high-resolution video.

5. What operating systems does the camera support?
The camera supports Windows, macOS, Android and Linux systems with compatible UVC support.

6. Is the GDH08-FP-100 UVC compatible?
Yes. It uses a standard USB UVC interface for connection to compatible host devices.

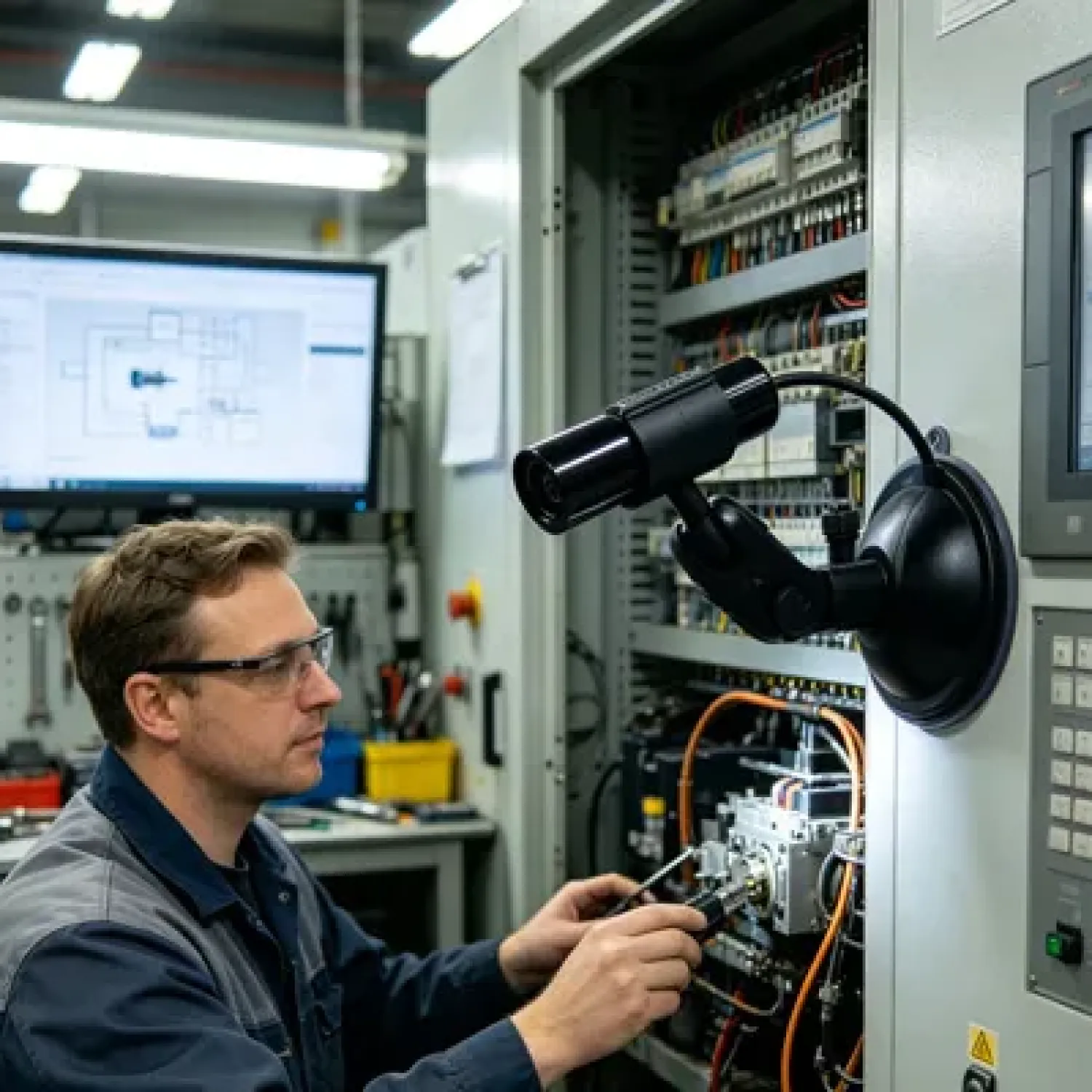

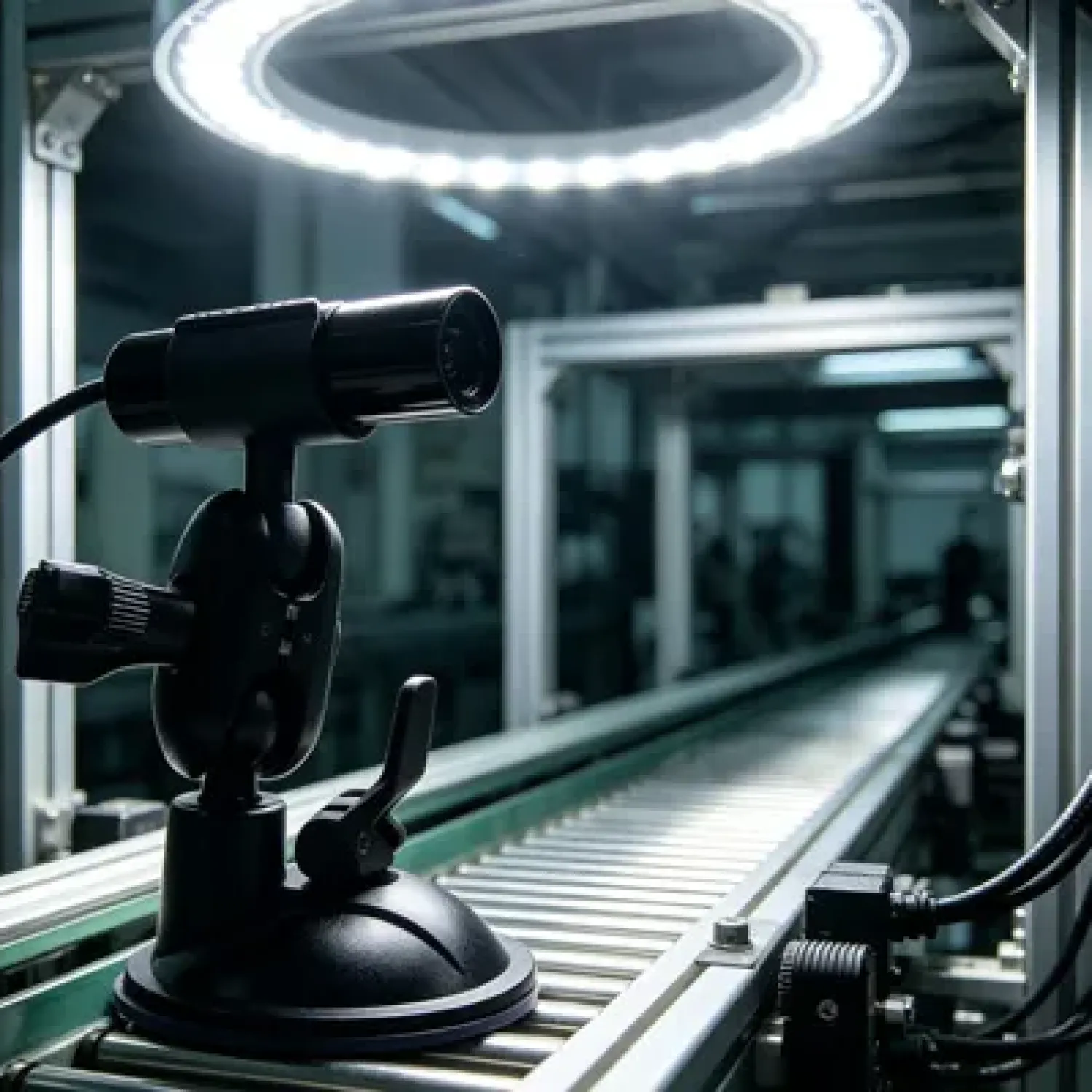

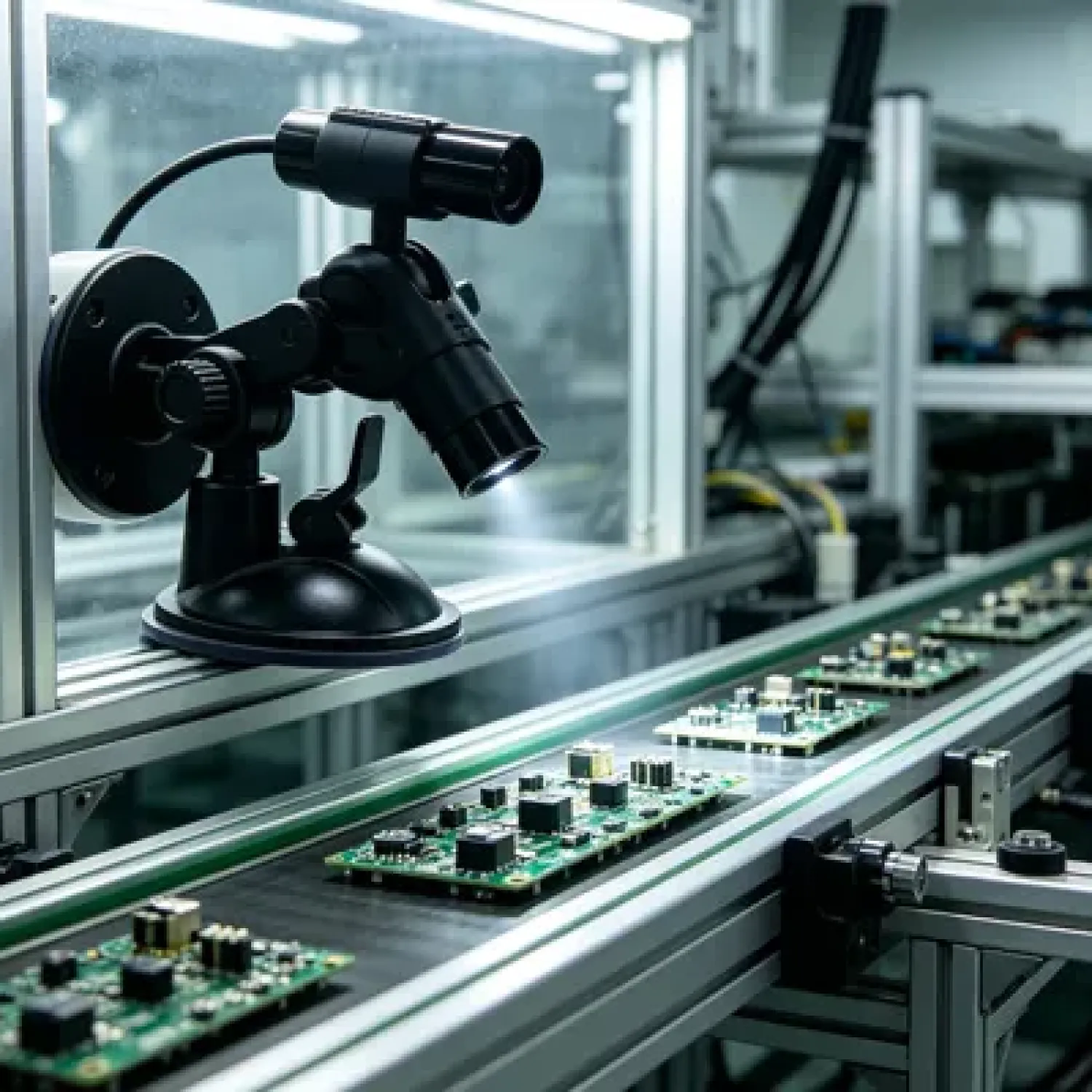

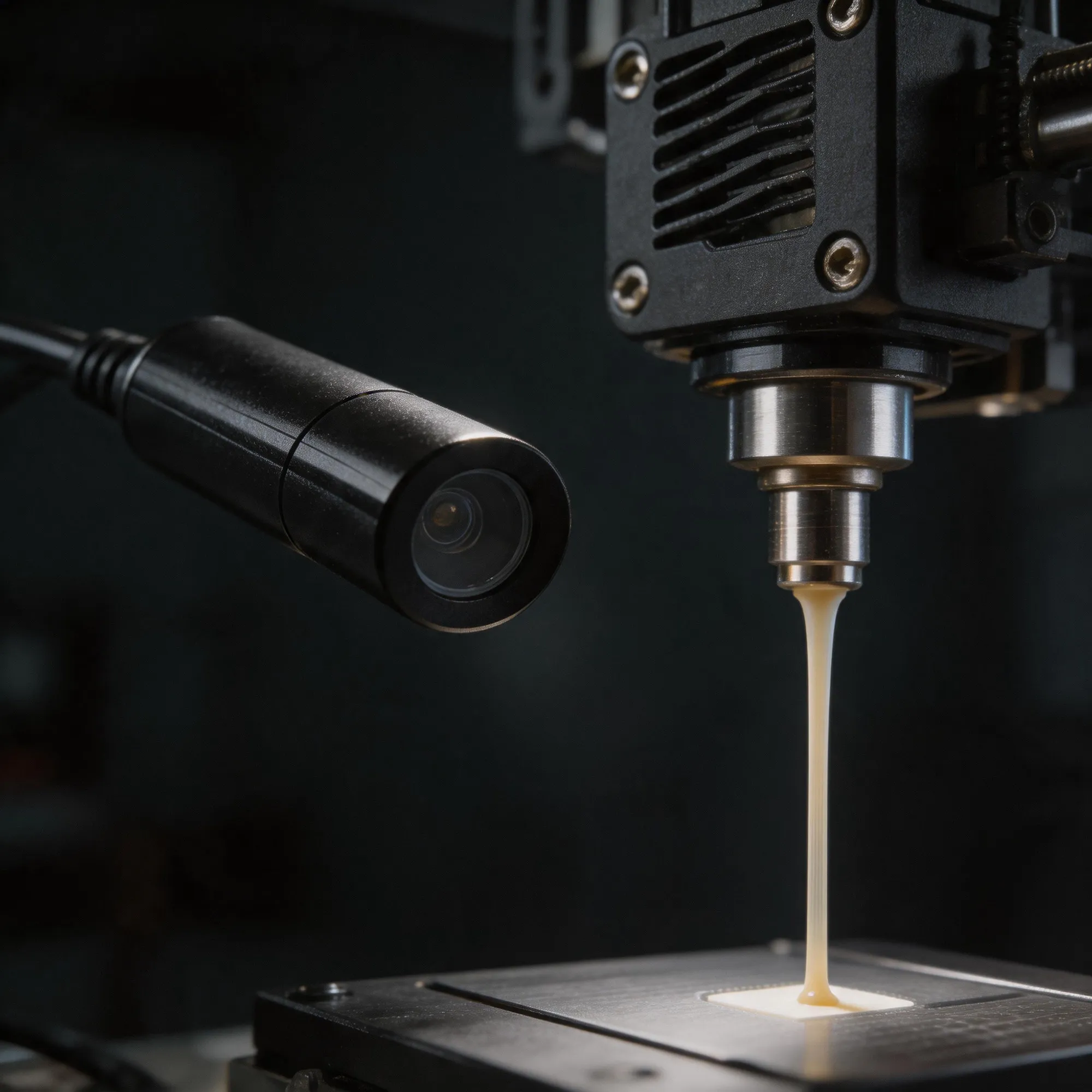

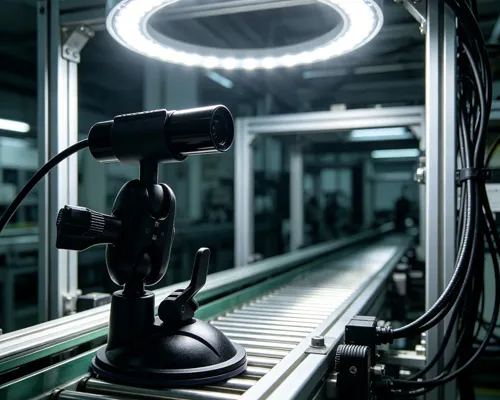

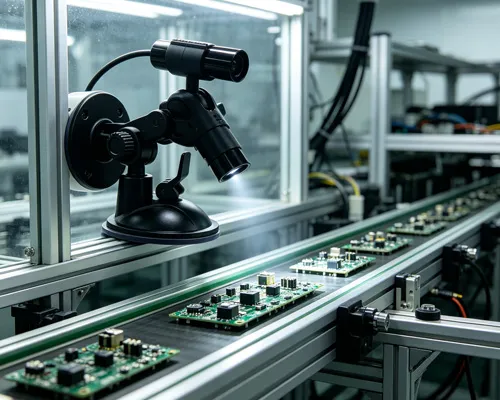

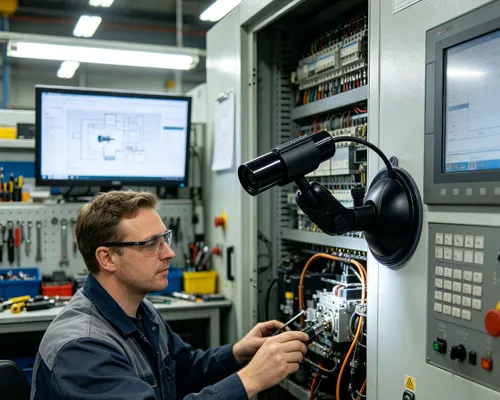

7. Can this camera be used for industrial inspection?
Yes. Its global shutter sensor, high frame rate and compact housing make it suitable for specialized industrial inspection and motion-analysis applications.

8. Can the camera be mounted on a helmet or used as a wearable camera?
Yes. The compact bullet-style housing can be combined with different mounting solutions, including helmet and wearable configurations.

9. Does the camera have a microphone?
Yes. The camera has an embedded microphone and supports audio and video recording when used with compatible host devices and software.

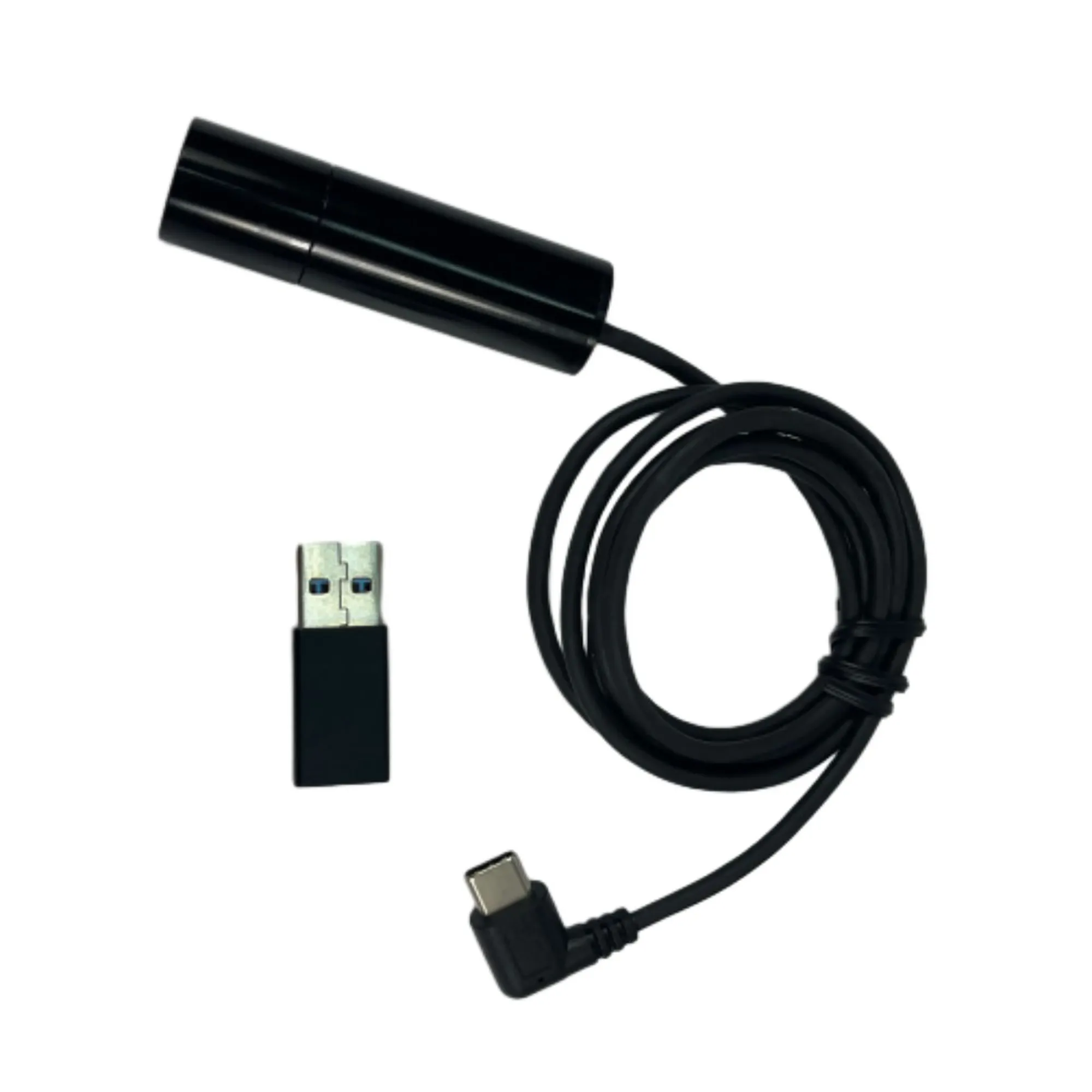

10. Does the camera support USB Type-C?
Yes. The camera supports USB Type-A or USB Type-C configurations, depending on the required configuration.
