The DB06-AF-200 delivers up to16MP resolution, with a maximum supported image resolution of4656 × 3496.
The high pixel count provides additional image information for applications where fine visual details are important.
It is particularly suitable for:
· Detailed inspection
· Document capture
· Product imaging
· Equipment monitoring
· Laboratory applications
· Embedded vision systems
The camera uses a1/2.8-inch Sony IMX298 CMOS image sensor, providing a high-resolution imaging platform in a compact camera module.
For OEM and engineering customers, the specific image sensor can be an important consideration when evaluating image quality, resolution and product integration requirements.
The autofocus system can automatically adjust focus according to the subject distance.
The specified autofocus range ismore than 15 cm, providing flexibility for applications where the camera may need to capture subjects at different distances.
This makes the module suitable for:
· Inspection systems
· Equipment monitoring
· Document and detail capture
· Smart devices
· Laboratory equipment
· Embedded imaging systems

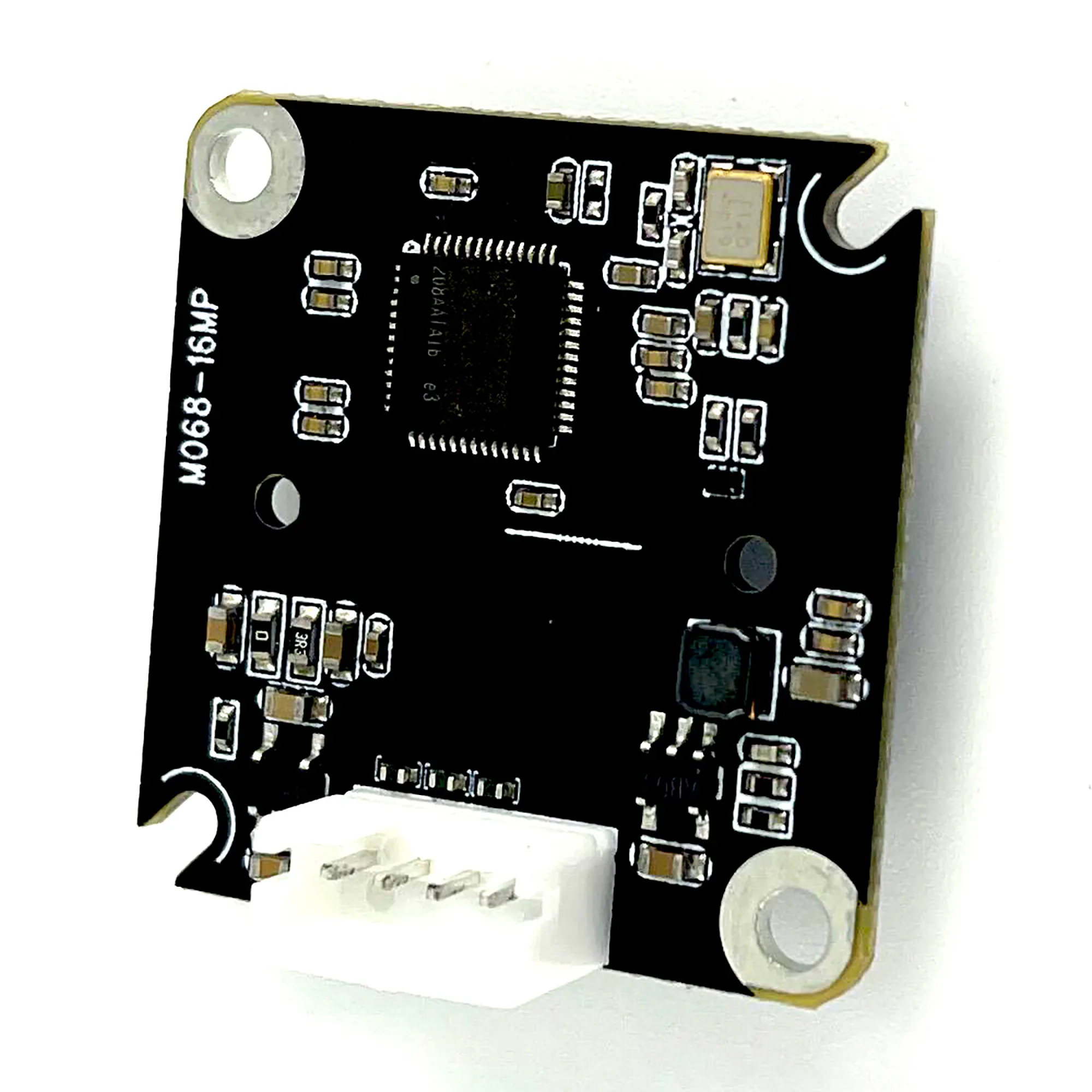

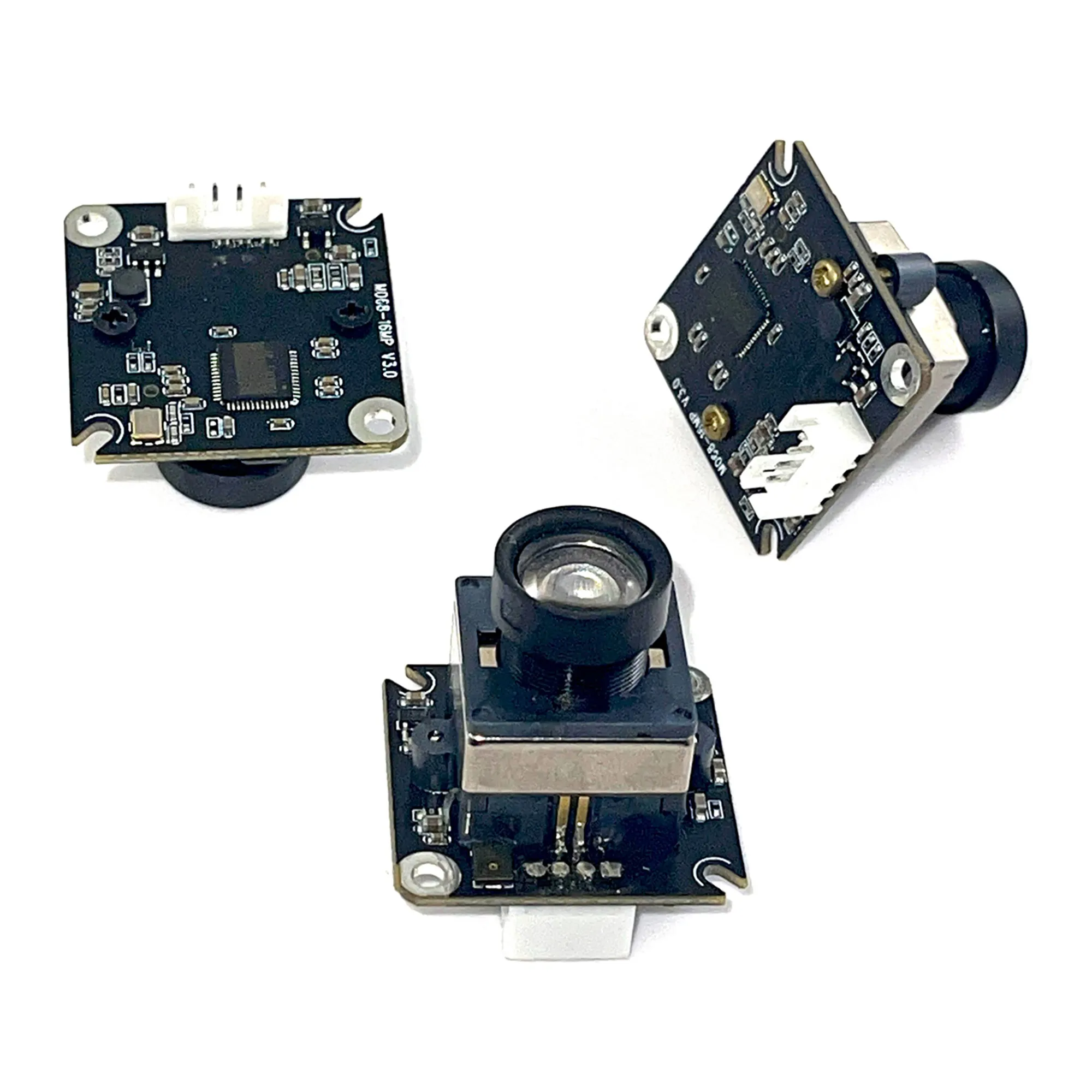

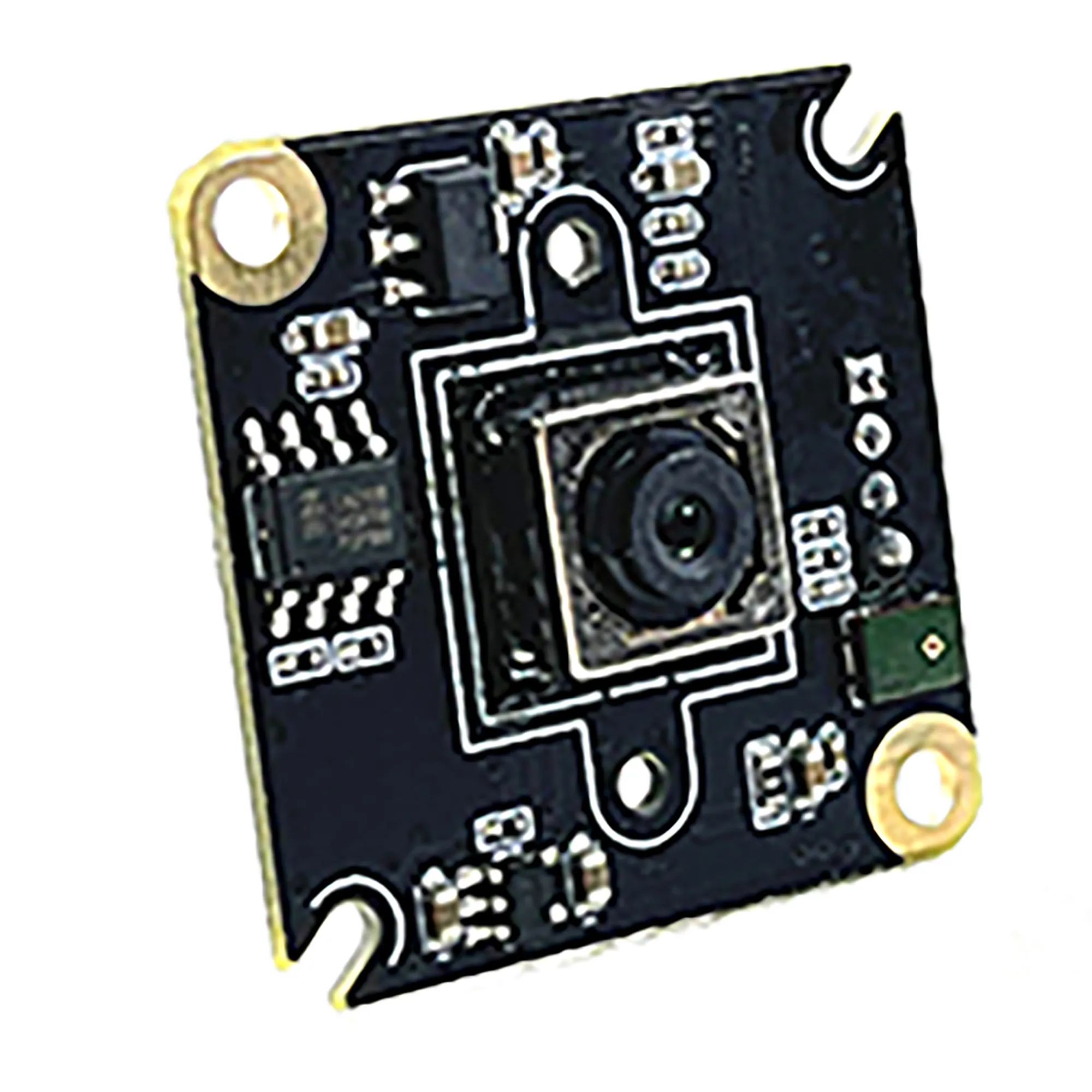

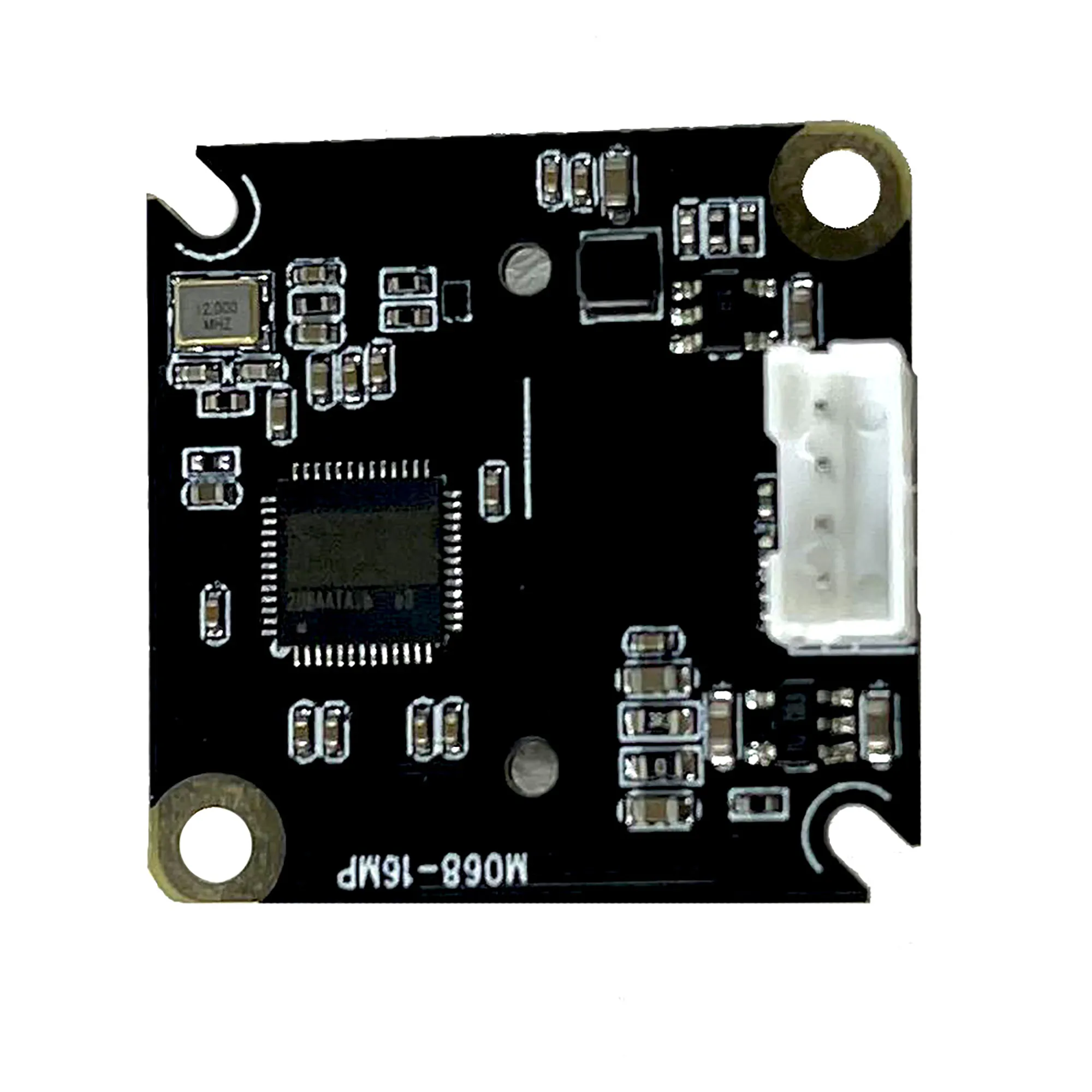

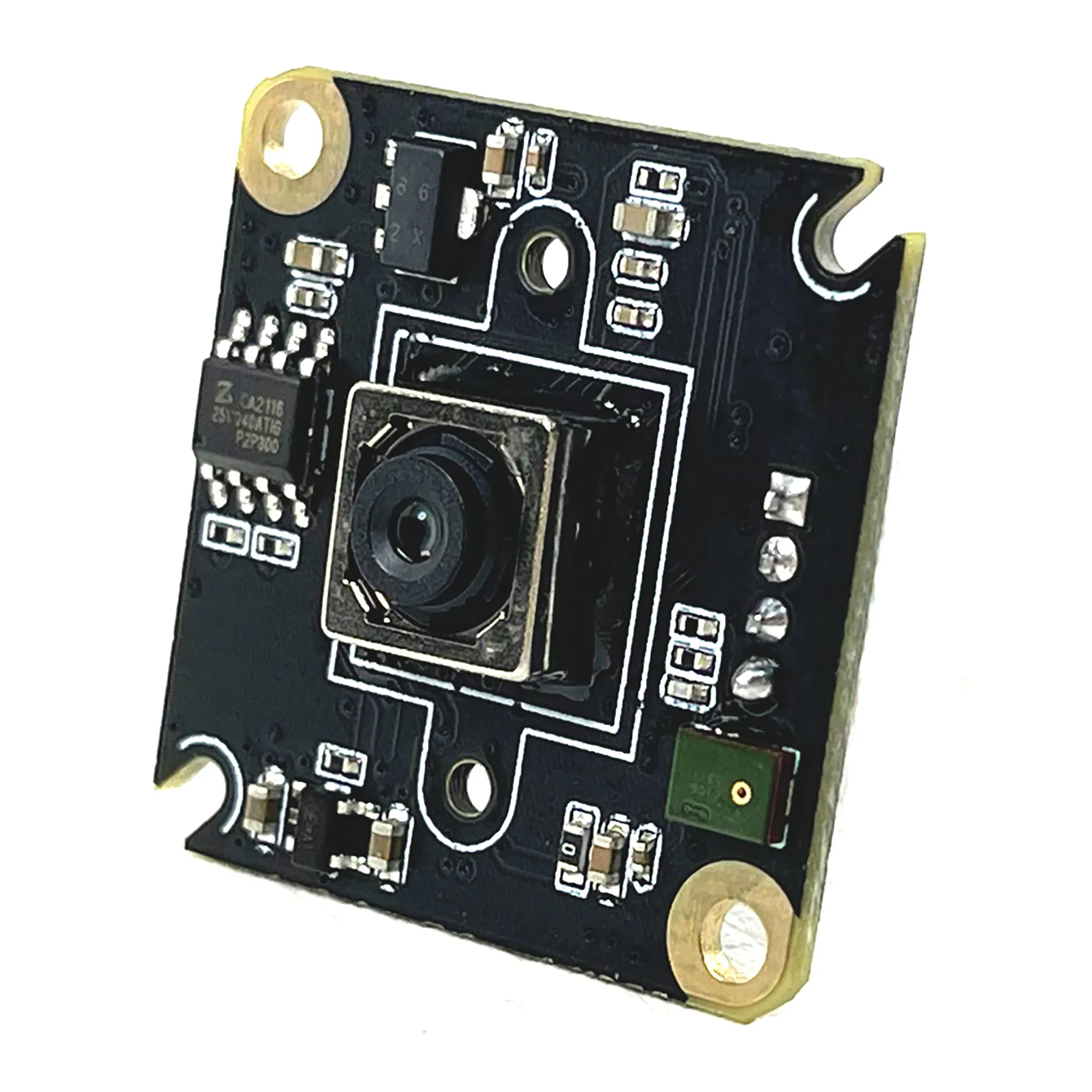

The module uses a compact28 × 28mm square PCB, making it suitable for integration into space-constrained equipment and devices.
The compact board format provides a practical solution for manufacturers developing products with limited internal installation space.
The module supports a wide range of resolution and frame-rate combinations:
Resolution | Frame Rate |
4656 × 3496 | 10fps |
4208 × 3120 | 10fps |
4000 × 3000 | 10fps |
3264 × 2448 | 10fps |
2592 × 1944 | 10fps |
2320 × 1744 | 30fps |
2304 × 1728 | 30fps |
2048 × 1536 | 30fps |
1920 × 1080 | 30fps |
1600 × 1200 | 30fps |
1280 × 960 | 30fps |
1280 × 720 | 30fps |
This allows developers to select an appropriate balance betweenresolution and frame rate according to their application.

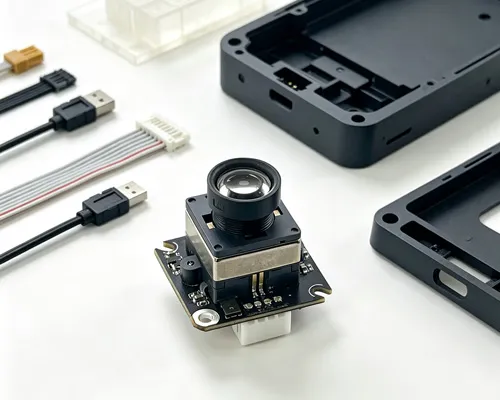

The compact square-board design allows the camera module to be integrated into different types of equipment and electronic devices.
Potential integration areas include:
Industrial Equipment · Inspection Systems · Smart Devices · Laboratory Instruments · Machine Integration · Monitoring Systems · OEM Equipment · Custom Imaging Devices
For customized projects, different camera configurations can be evaluated according to the product requirements.

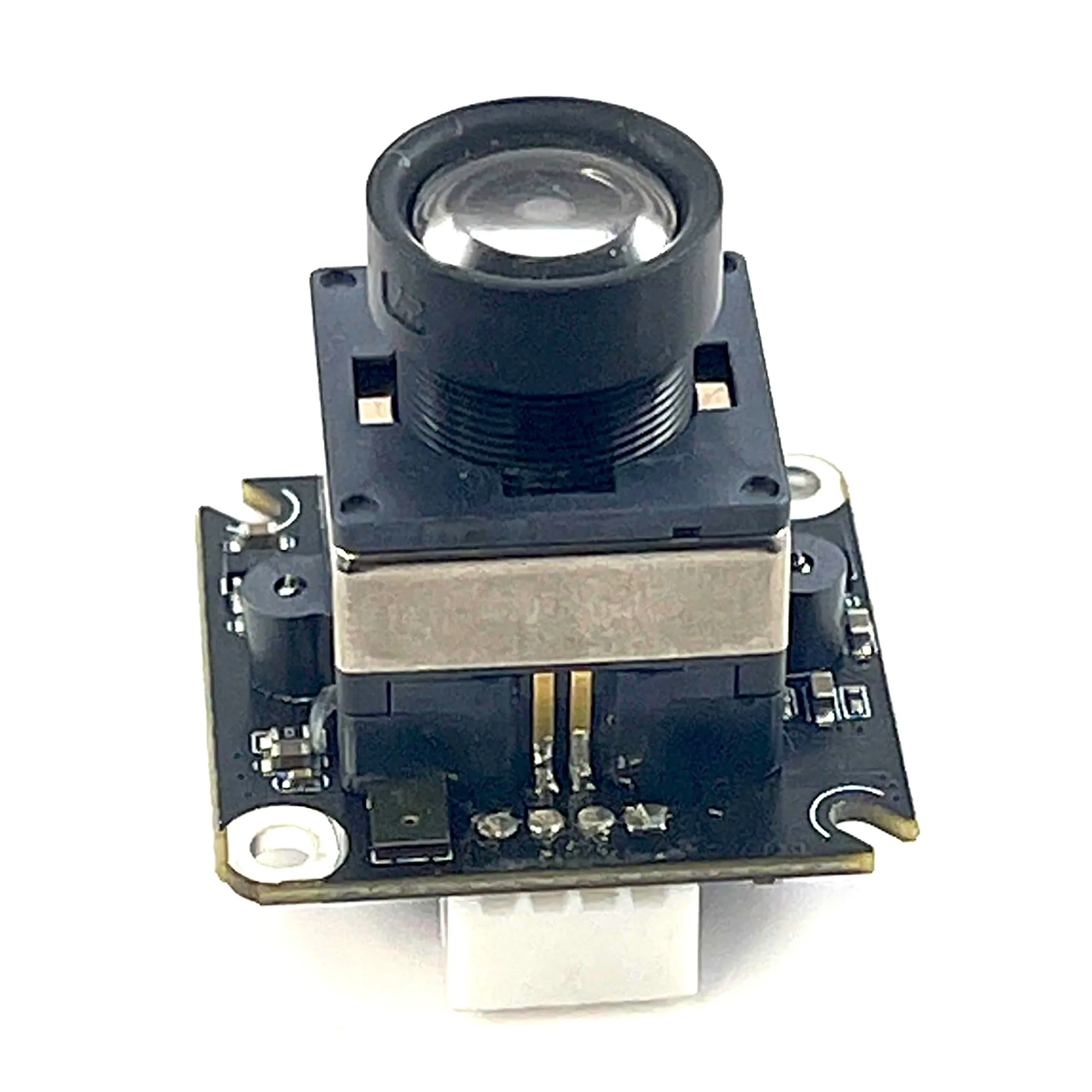

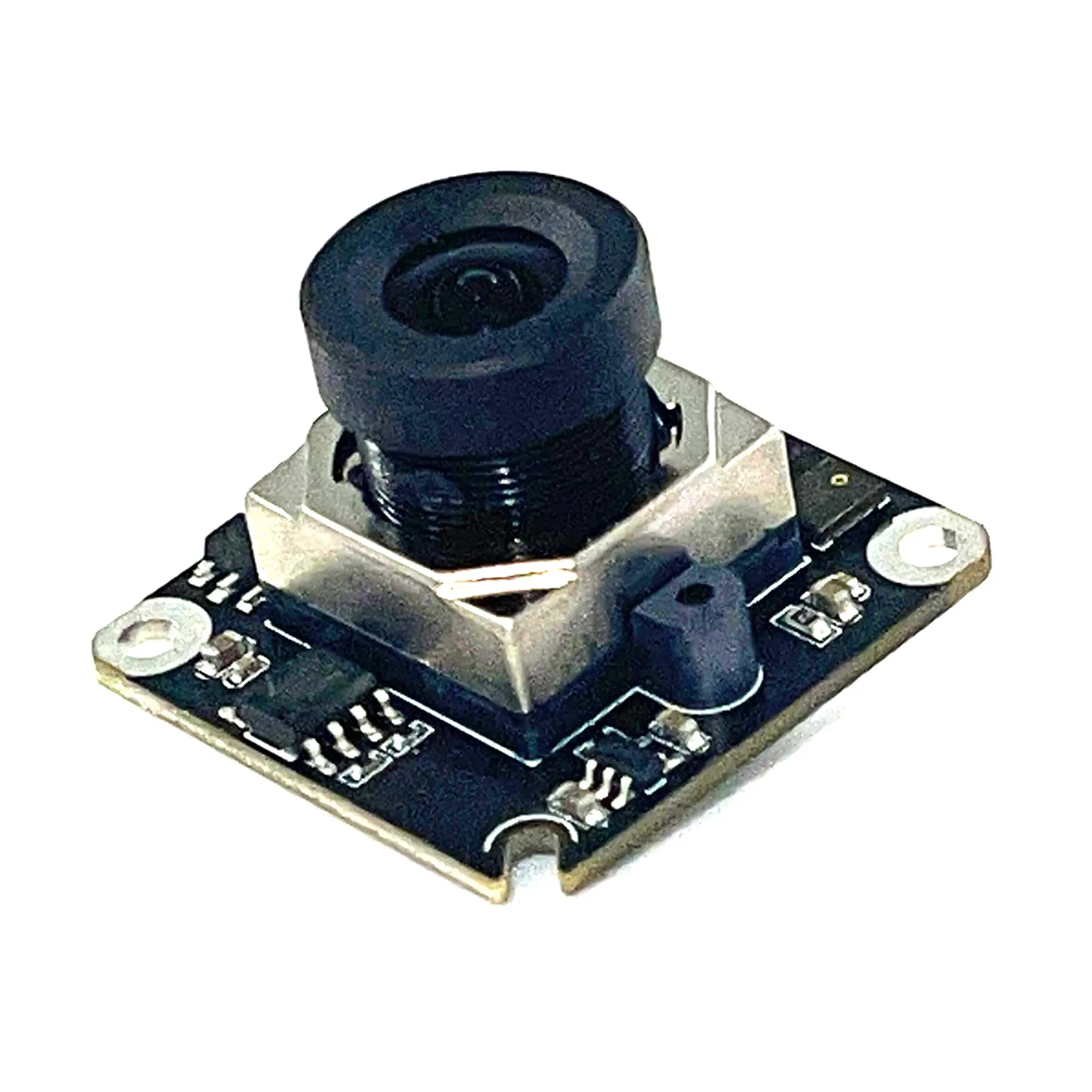

The DB06-AF-200 is a compact 16MP autofocus USB camera module featuring a 1/2.8-inch Sony IMX298 CMOS image sensor.
Supporting image resolutions up to 4656 × 3496, the module is designed for applications where high image detail and resolution are important.
With its compact 28 × 28mm square PCB design, autofocus capability and standard USB interface, the camera can be integrated into machines, equipment, smart devices, inspection systems, laboratory instruments and other space-constrained products.
The module supports Windows, Mac, Linux and Android systems and provides multiple resolution and frame-rate options for different application requirements.

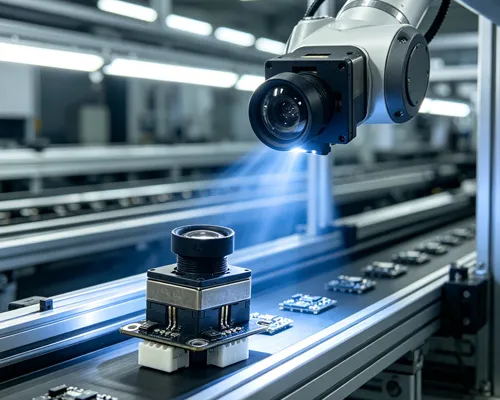

Industrial Inspection High-resolution imaging for inspection of components, products, equipment and other industrial objects. |

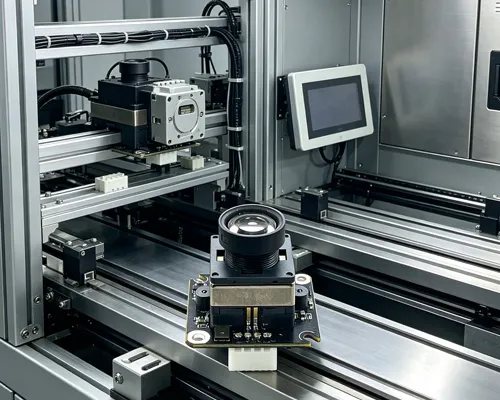

Machine & Equipment Integration Designed to be embedded into machines and equipment requiring an integrated high-resolution camera. |

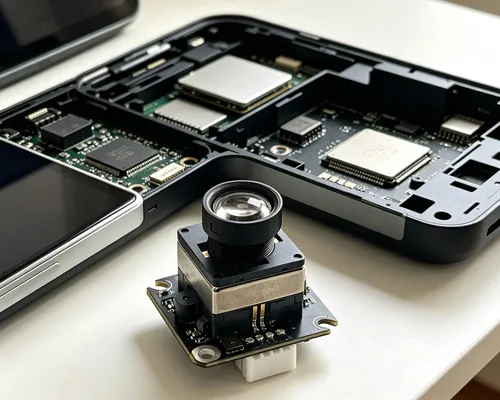

Smart Devices Suitable for intelligent equipment, interactive systems and electronic devices that require built-in imaging capability. |
Inspection & Monitoring Systems Autofocus provides flexibility for applications where the subject distance may vary. |

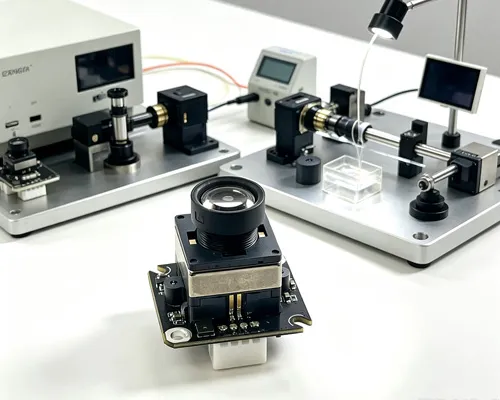

Laboratory & Research Equipment The compact camera board can be integrated into laboratory instruments and research equipment requiring digital imaging. |

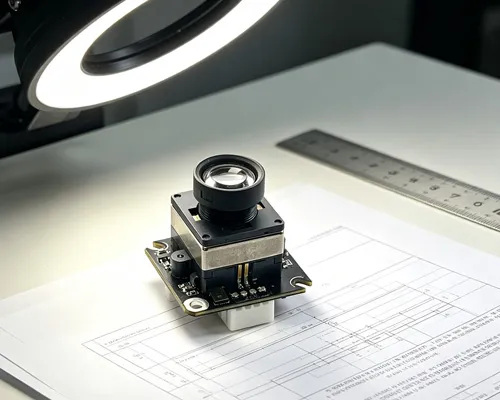

Document & Detail Capture The 16MP resolution provides additional image detail for documents, labels, printed materials and other objects. |
OEM / ODM Camera Integration Suitable for manufacturers developing equipment with a built-in camera and requiring a customized camera module solution. |
When your application requires detailed images, 16MP resolution provides significantly more image information than lower-resolution camera modules.
The DB06-AF-200 supports up to 4656 × 3496, making it suitable for applications where image detail is a priority.
The module combines high-resolution imaging with the Sony IMX298 CMOS sensor, providing a recognized sensor platform for embedded camera applications.
The autofocus function provides greater flexibility when the camera needs to capture subjects at different distances.
With an AF range of more than 15cm, the module can adapt to changing imaging requirements.
The square 28 × 28mm PCB provides a compact footprint for equipment and devices where internal space is limited.
This makes it easier to integrate high-resolution imaging into compact products.
Not every application needs maximum 16MP resolution.
The module supports multiple output resolutions, including 16MP @ 10fps and 1080P @ 30fps, allowing developers to select the appropriate mode for their application.
The combination of:
16MP + Sony IMX298 + Autofocus + 28 × 28mm PCB + USB
provides a compact high-resolution camera platform for equipment manufacturers, product developers and OEM customers.
If your product requires a compact high-resolution camera with a specific installation environment or integration requirement, contact us to discuss your project.
