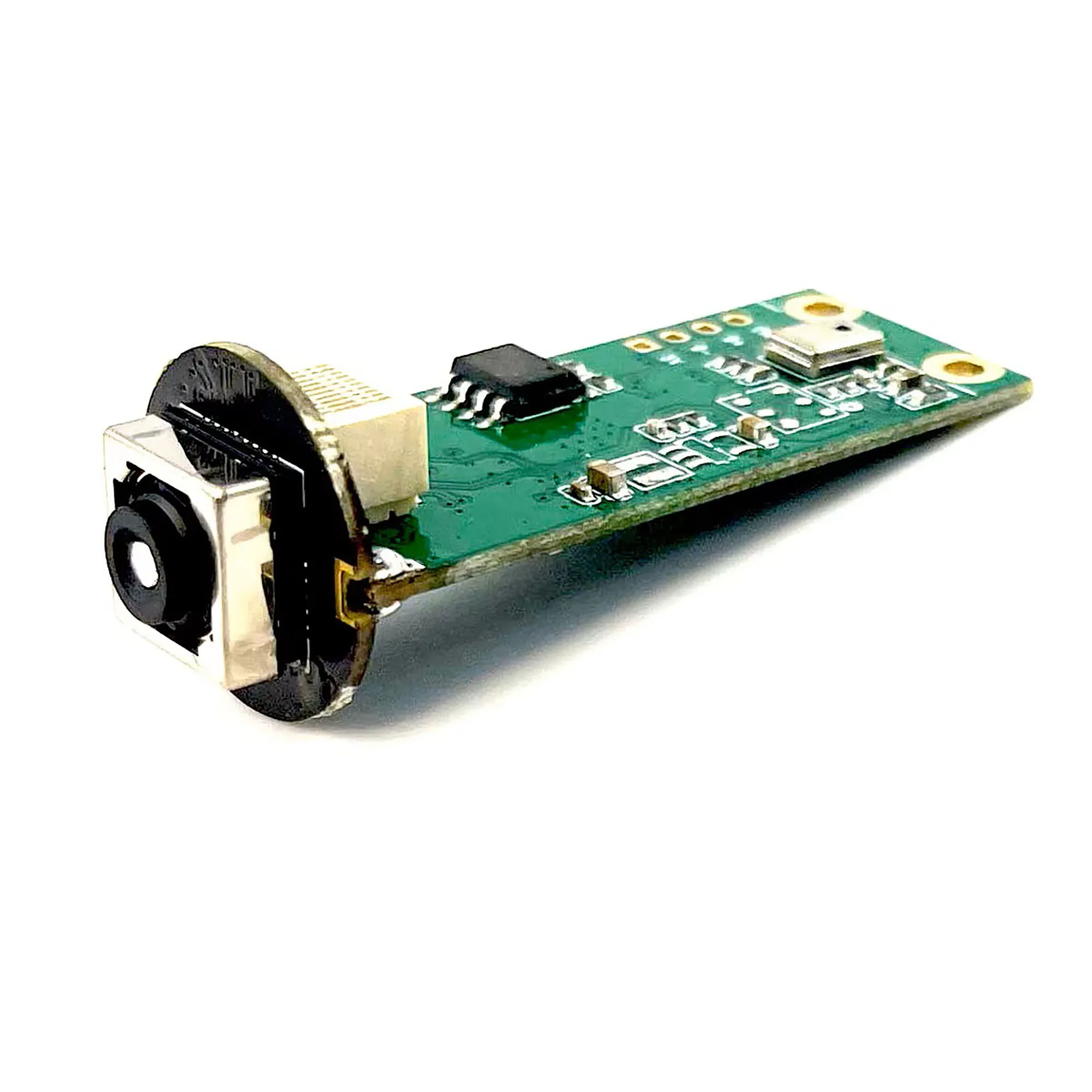

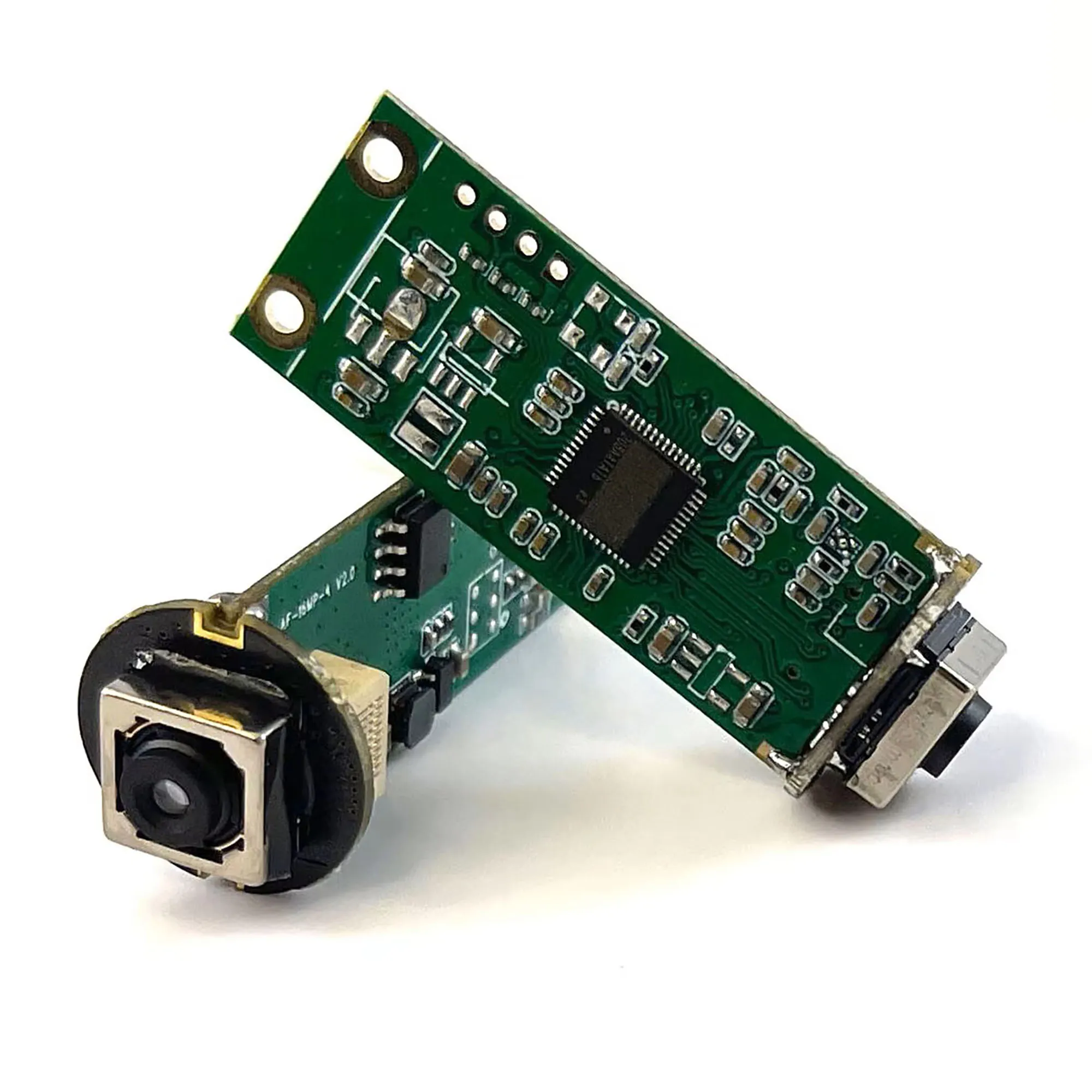

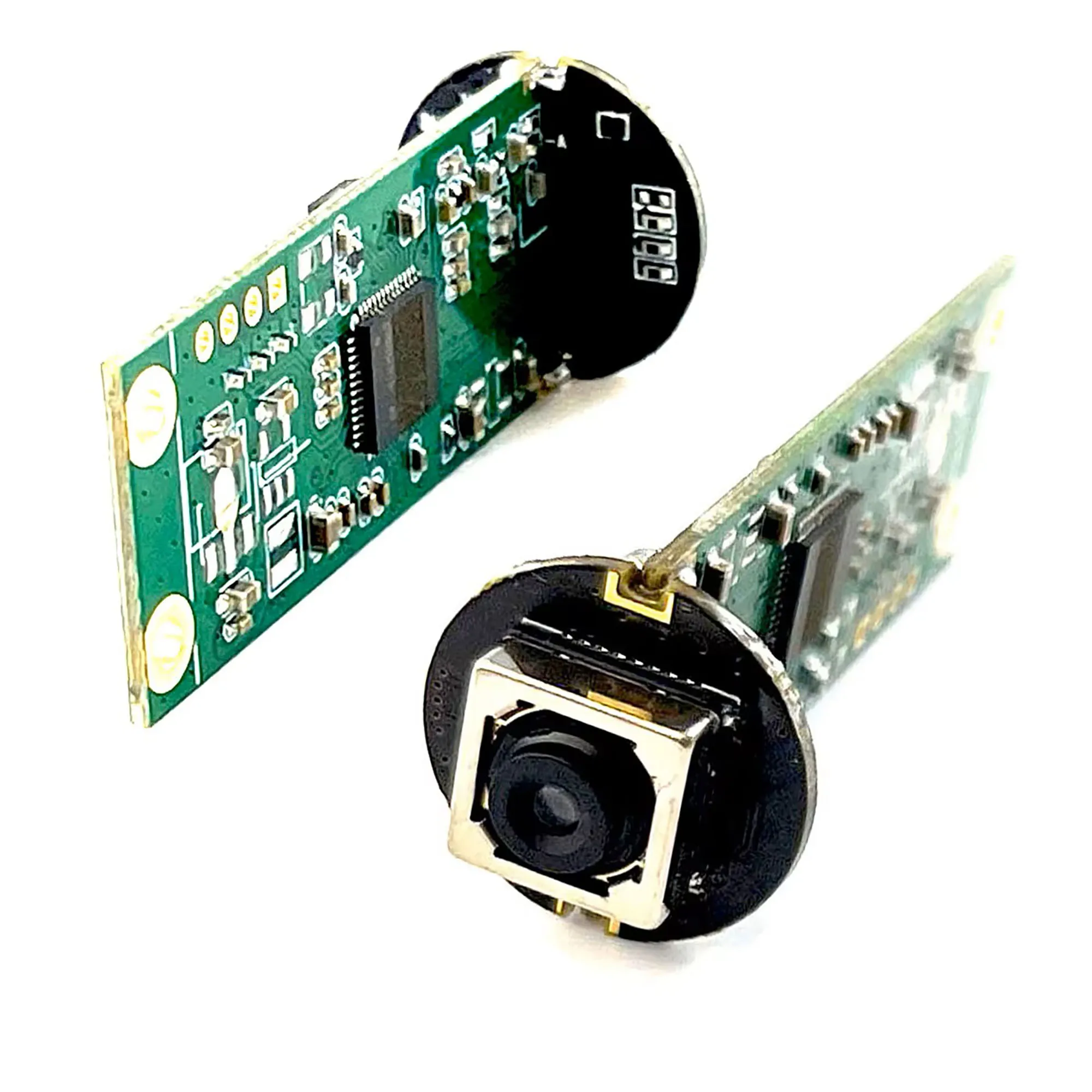

TheDH08-AF-8MP is a compact8MP autofocus USB camera module designed for integration into machines, equipment, smart devices and customized imaging systems.
Featuring an8MP CMOS image sensor, autofocus capability and image resolutions up to3264 × 2448, the camera provides detailed imaging for applications where image clarity and flexible working distances are important.
With a compactØ17 × 40 mm cylindrical design and standardUSB UVC interface, the module is suitable for space-constrained applications where a built-in camera needs to be integrated into an existing product or equipment.
The camera supportsWindows, Mac, Android and Linux systems and provides multiple resolution options through MJPG video output.The DH08-AF-8MP uses an8MP CMOS image sensor and supports image resolutions up to3264 × 2448.
The high-resolution output provides detailed visual information for applications such as inspection, document capture, equipment monitoring and embedded vision.
The autofocus system supports a minimum focusing distance of approximately5 cm, allowing the camera to capture relatively close objects while also adapting to longer working distances.
This makes the module more flexible than a conventional fixed-focus camera for applications involving changing subject distances.
· Close-up inspection
· Component inspection
· Document and text capture
· Equipment monitoring
· Embedded devices
· Object recognition
The camera uses thestandard USB UVC protocol, allowing integration with compatible Windows, Mac, Android and Linux systems without requiring a proprietary camera interface.
This makes the module suitable for developers and manufacturers looking for a straightforward USB camera solution for their products.
Windows | Mac | Android | Linux

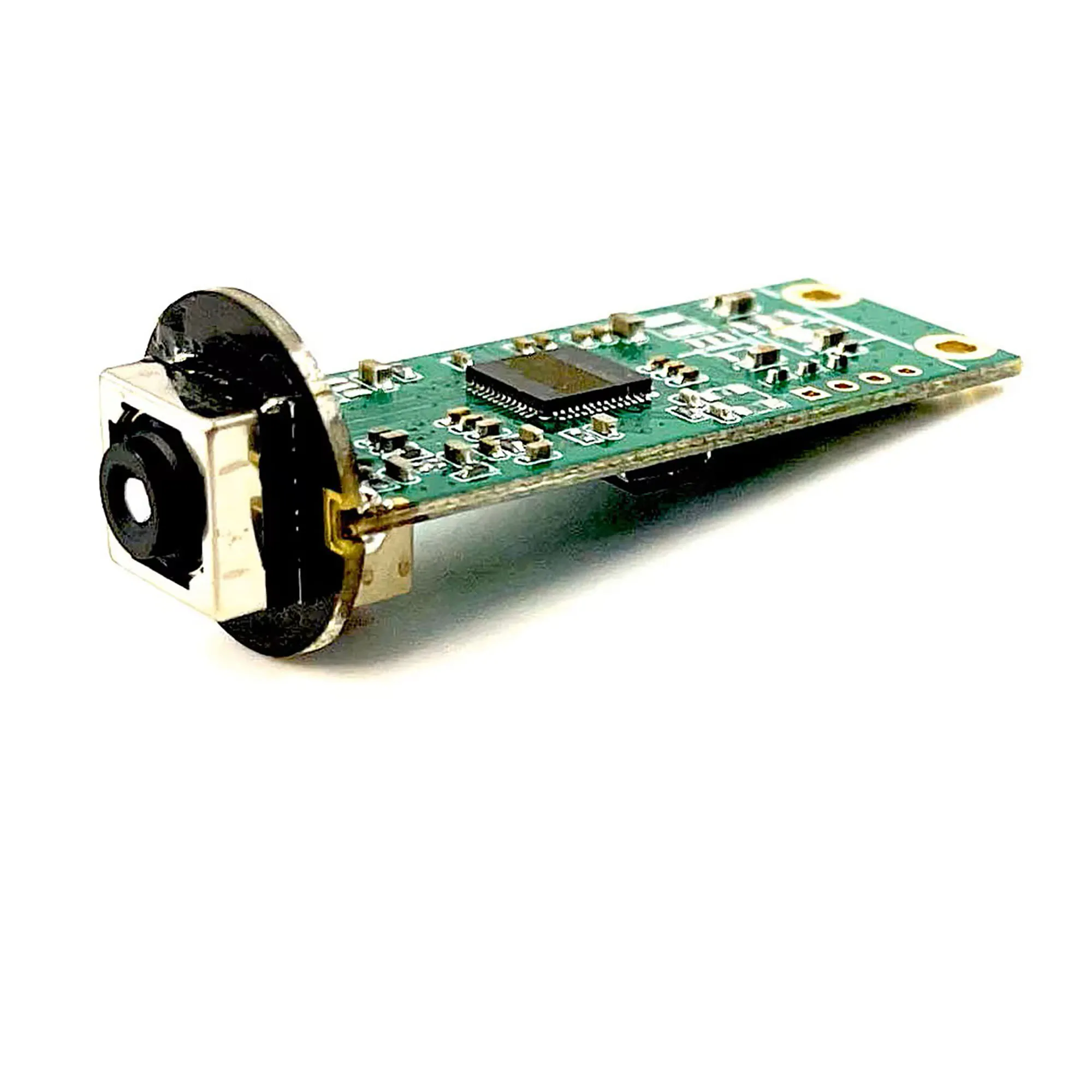

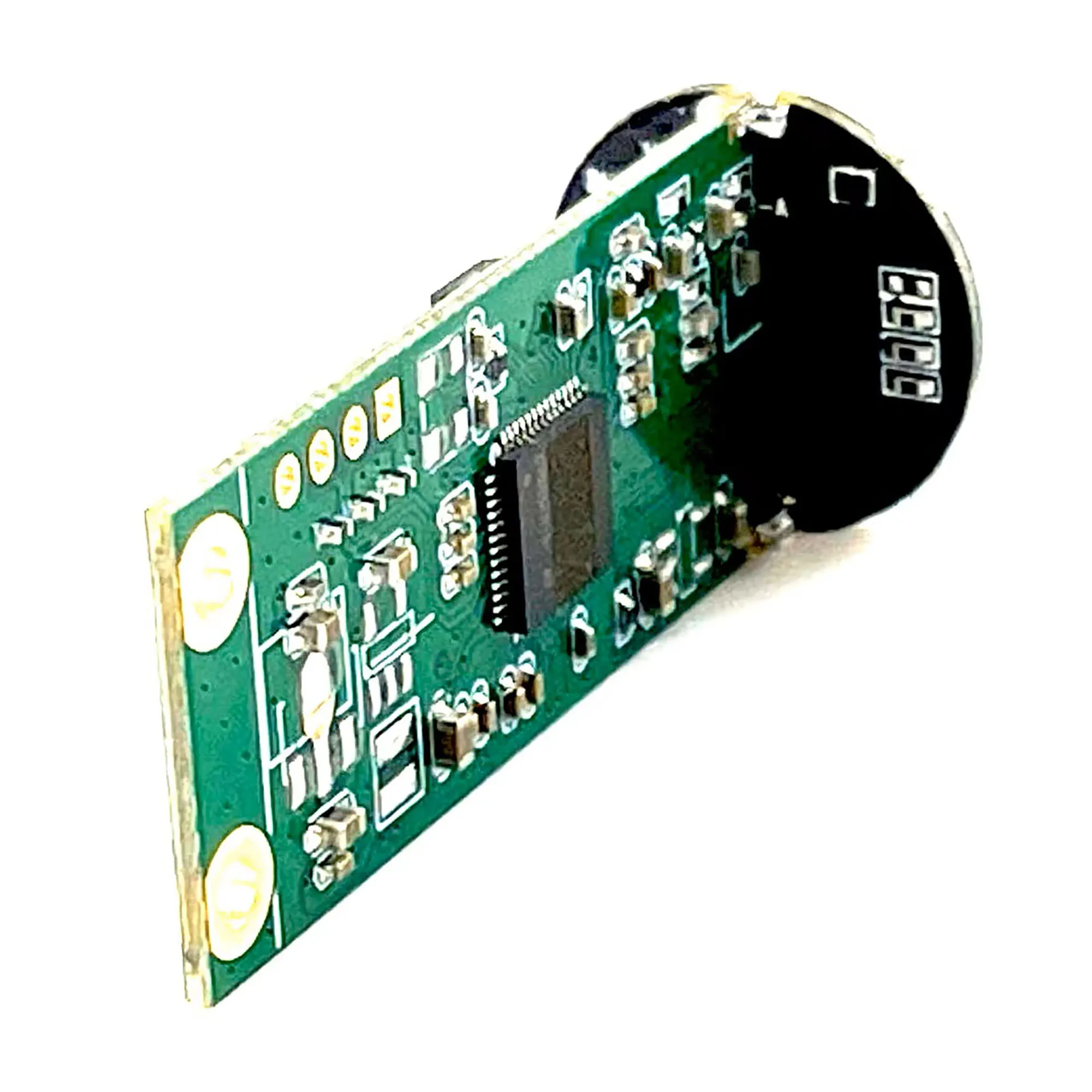

The camera measures approximatelyØ17 × 40 mm, making it suitable for installation inside equipment, machines and other products where available space is limited.
The compact cylindrical design can be integrated into:
· Equipment
· Machines
· Inspection systems
· Smart devices
· Embedded systems
· Customized products
The module supports multiple video resolutions according to application requirements:
Resolution | Frame Rate |
3264 × 2448 | Up to 15fps |
2592 × 1944 | Up to 15fps |
2048 × 1536 | Up to 15fps |
1920 × 1080 | Up to 30fps |
The camera usesMJPG video streaming for USB video transmission.
The camera can be supplied with different USB configurations according to project requirements.
· USB Type-C
· USB Type-A
· Customized USB Configuration
For OEM projects, other mechanical and connection requirements can be discussed according to the specific application.
Industrial Inspection For visual inspection of equipment, components, machinery and production processes. |
Machine Integration Designed to be embedded into machines and equipment requiring a compact USB camera. |

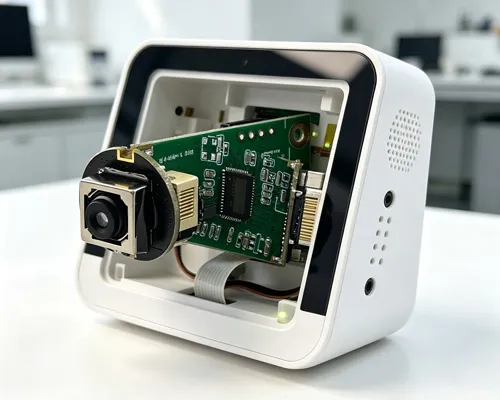

Smart Devices Suitable for intelligent equipment, interactive devices and computer-controlled systems. |
Inspection Systems The autofocus capability makes the camera suitable for applications requiring different working distances and close-up imaging. |
Document & Text Capture The combination of 8MP resolution and autofocus can help capture documents, labels, printed information and other detailed objects. |
Retail & Kiosk Equipment Can be integrated into kiosks, terminals and other interactive equipment requiring an embedded camera. |

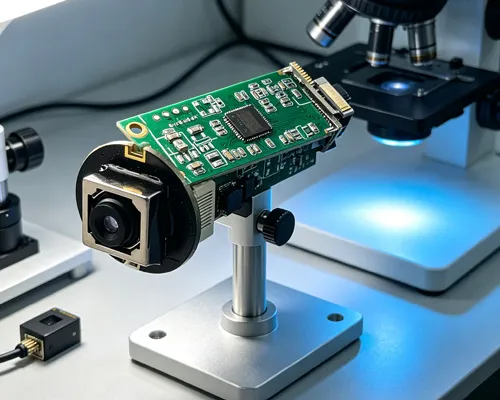

Laboratory & Research Equipment Suitable for integration into laboratory instruments, testing equipment and other research systems. |

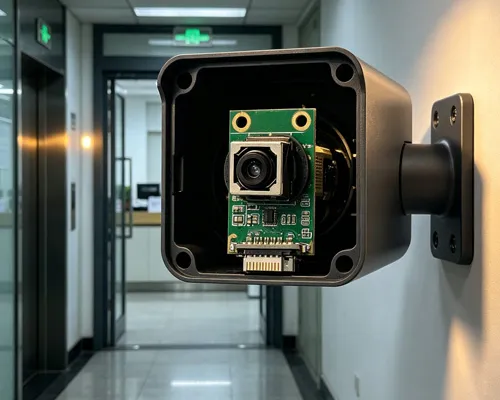

Security & Monitoring Equipment The product specification also lists video surveillance as an available application. |
OEM / ODM Products Suitable for manufacturers and product developers who need a compact camera integrated directly into their own equipment or product. |
The DH08-AF-8MP combines8MP high-resolution imaging with a compact cylindrical form factor.
It provides detailed imaging without requiring a conventional webcam-style enclosure.
With a minimum focus distance of approximately5 cm, the camera can handle both close-up subjects and objects at greater distances.
This is especially useful forinspection, document capture and equipment monitoring.
The small cylindrical housing makes it easier to install the camera inside equipment and other space-constrained products.
This is one of the most important physical advantages of this camera compared with conventional USB cameras.
Standard UVC support provides a convenient way to connect the camera to compatible systems.
There is no need to build the application around a proprietary camera interface when standard UVC compatibility meets the project requirements.
The camera can provide different resolution and frame-rate combinations, including8MP @ 15fps and1080P @ 30fps.
This gives developers flexibility to balance image resolution and frame rate according to their application.
The DH08-AF-8MP is designed to become part of another product or piece of equipment.
Its compact size, autofocus capability, USB UVC interface and flexible USB configurations make it suitable fordevice integration, inspection equipment, smart devices and customized OEM projects.
If your product requires a compact camera with a specific installation position, working distance or USB configuration, contact us to discuss your requirements.
Request a Custom CameraYes. The DH08-AF-8MP uses thestandard UVC protocol for USB video applications.
Yes. The camera features autofocus with a minimum focusing distance of approximately5 cm.
The maximum image resolution is3264 × 2448, with up to 15fps at this resolution.
It also supports1920 × 1080 at up to 30fps.
The camera supportsWindows, Mac, Android and Linux systems.
Yes. Its compactØ17 × 40 mm form factor and USB UVC interface make it suitable for embedded and device-integration applications.
Yes. The autofocus specification supports a minimum focusing distance of approximately5 cm, making it suitable for close-up imaging applications.
The camera can be supplied withType-C, Type-A or customized USB configurations.

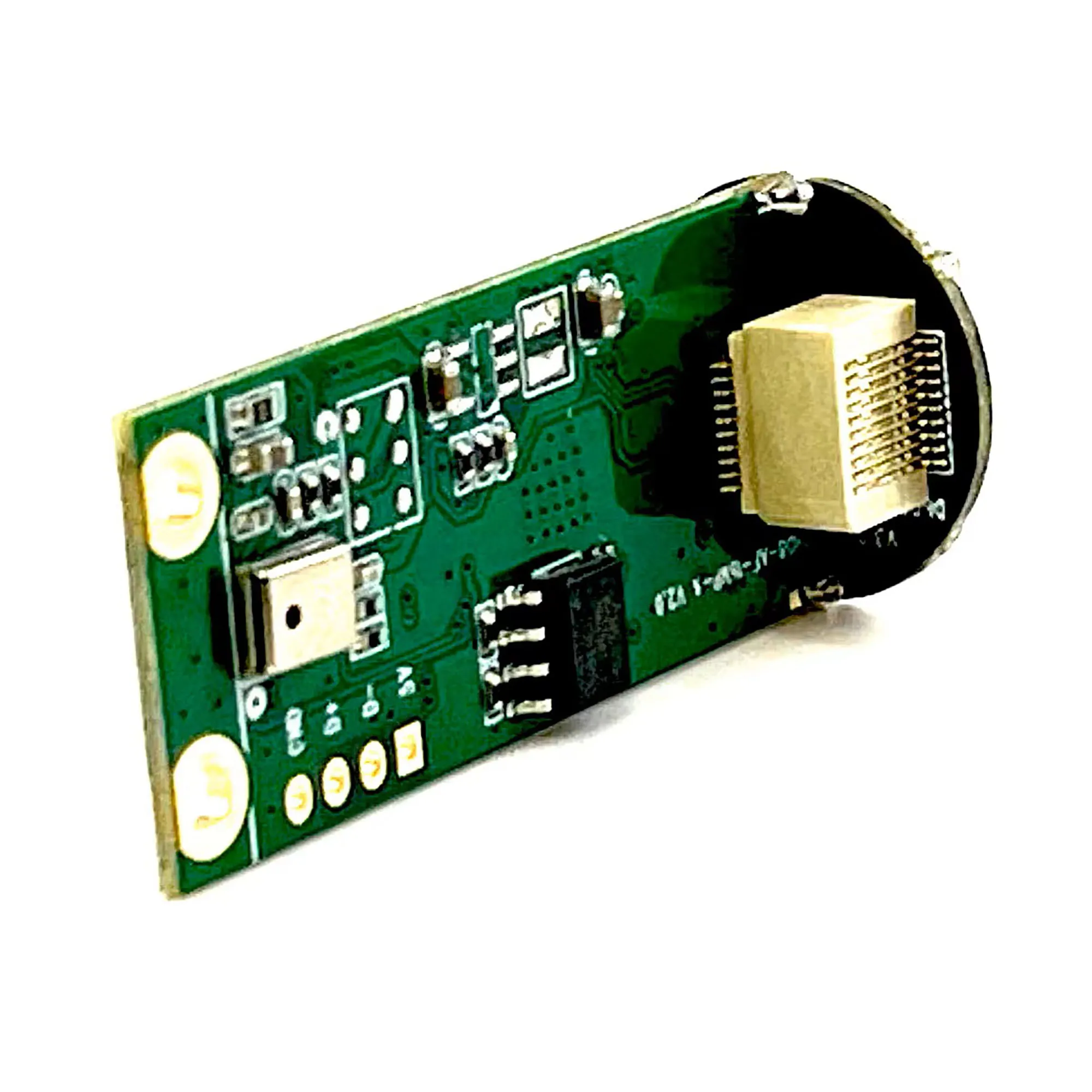

Yes. The camera has aninternal digital microphone.
Yes. Video surveillance is listed as one of the available applications in the product specification.
The module supports customized USB configurations. For other customization requirements, customers can contact us to discuss their specific project requirements.
