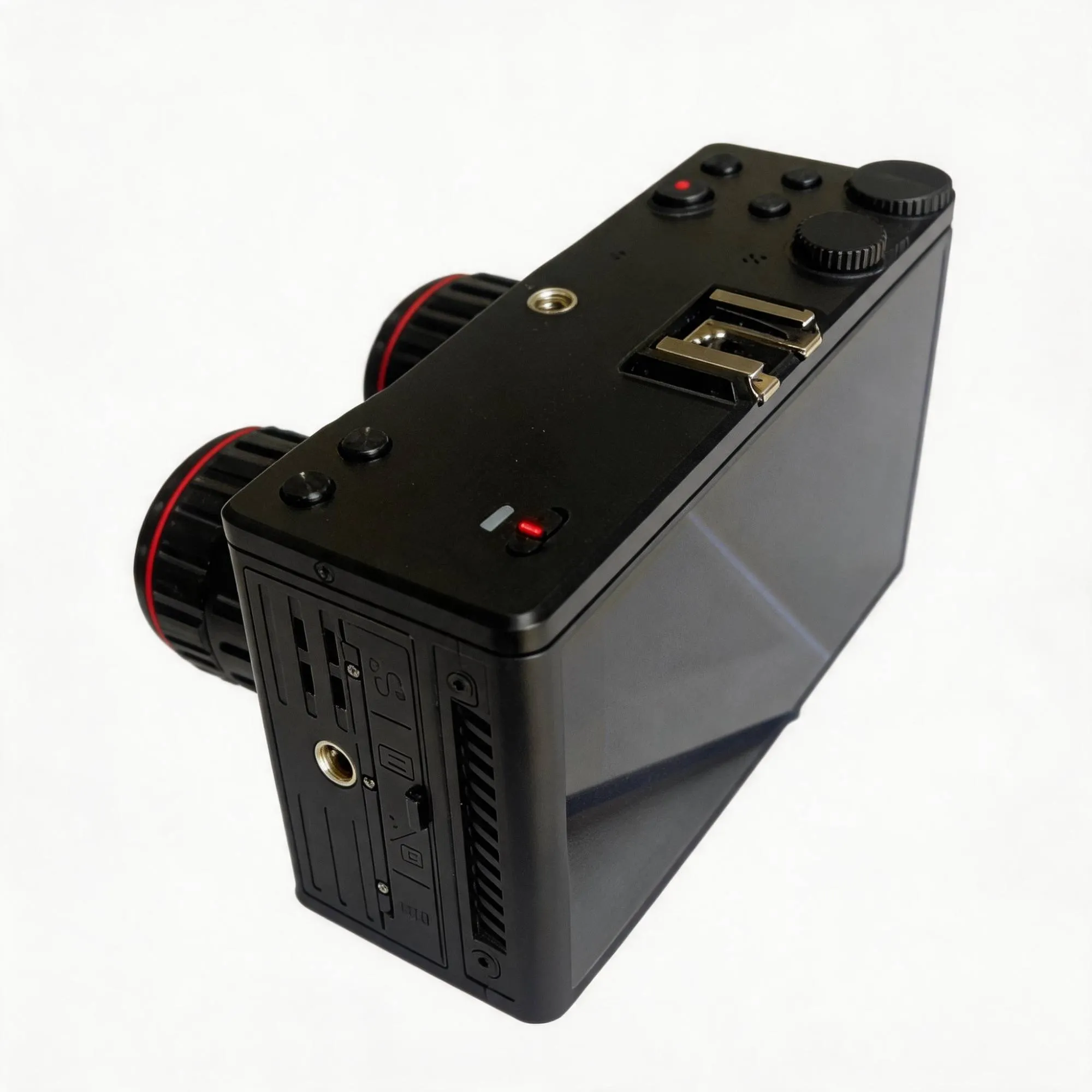

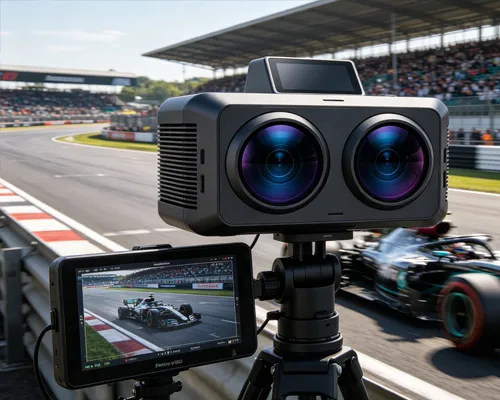

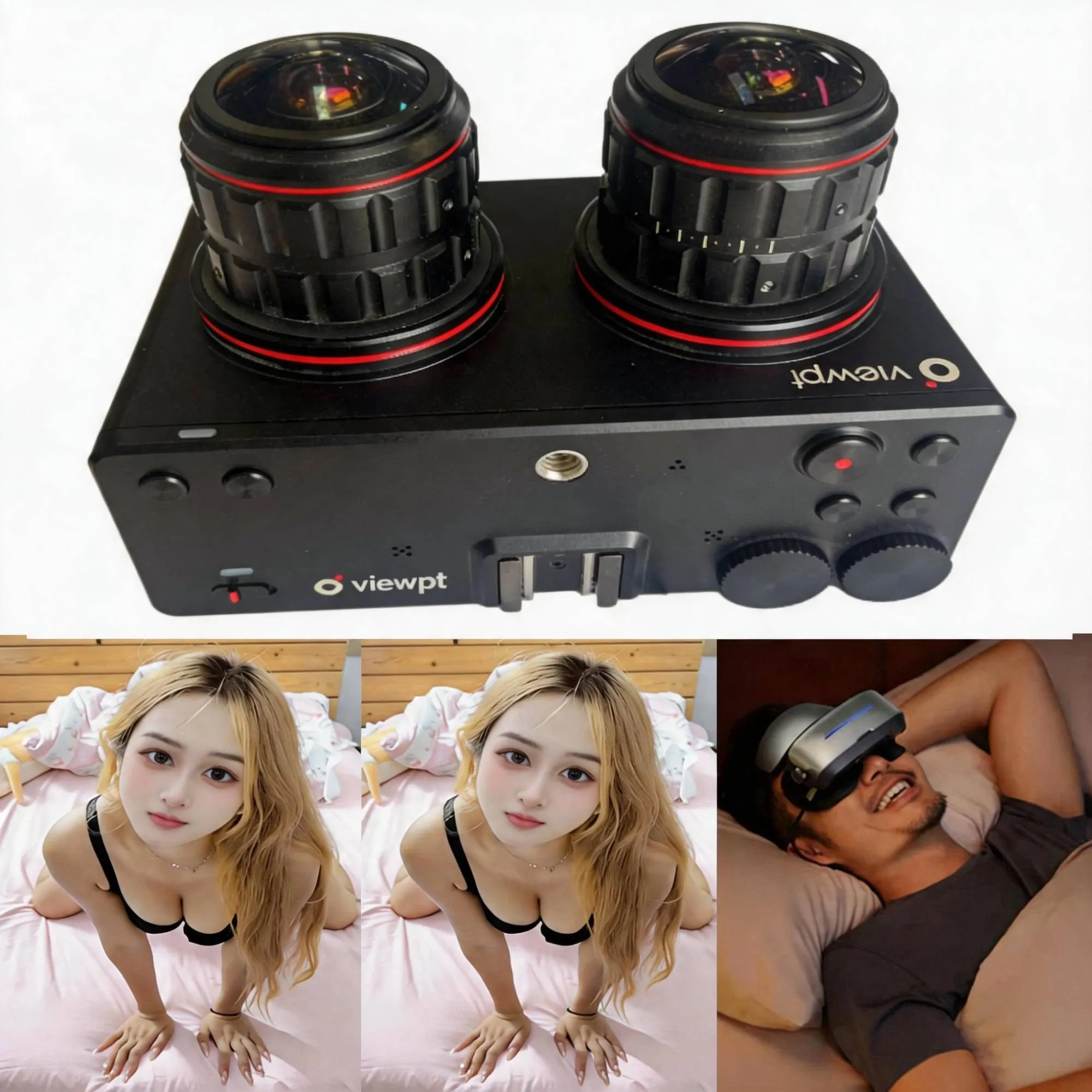

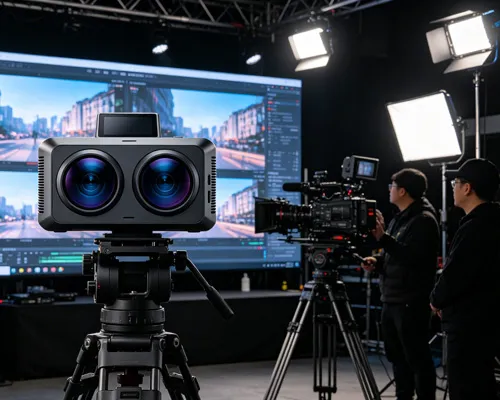

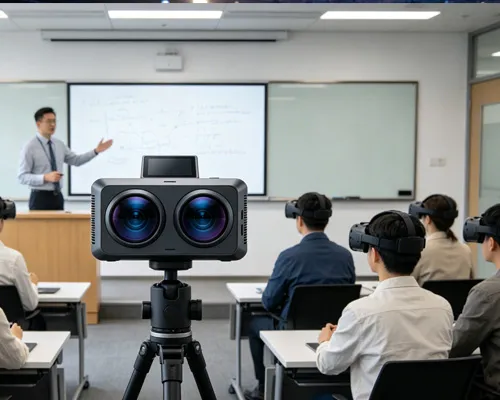

A High-Performance Stereo Camera for VR180 and 3D ContentThe YVR-002 is a high-performance dual-lens VR180 and stereoscopic 3D camera designed for professional immersive content creation.
Compared with conventional compact stereo cameras, it uses **two 1-inch Sony IMX383 sensors**, each with a resolution of **20.92MP**, providing a larger sensor format and higher pixel count for each optical channel.
The camera supports up to **8K VR180 video at 30fps**, multiple 50fps VR180 modes, **4K 3D at 60fps**, and high-frame-rate capture up to **120fps**.
It also adds features suited to more demanding production workflows, including **H.265 Main10 encoding, 8-bit/10-bit color depth, 120Mbps maximum bitrate, HDMI 2.0 output, and a 4-inch Full HD LCD display**.
SIX KEY FEATURES01. Dual 1-Inch Sony IMX383 Sensors
Larger Sensors for High-Resolution Stereo Capture
The YVR-002 uses two Sony IMX383 1-inch image sensors , each with 20.92MP resolution.
The larger 1-inch sensor format provides a substantially larger imaging area than the 1/2.3-inch sensors used in the previous model, while maintaining a dual-channel architecture for stereoscopic capture.
The two sensors work as the left- and right-eye image channels for VR180 and 3D imaging.
Key specifications:
Sony IMX383 · 1-inch · 20.92MP per sensor · Dual-Sensor Architecture
02. 8K VR180 and Multiple High-Resolution Modes
Flexible Capture for Different Production Requirements
The YVR-002 supports multiple VR180 and stereoscopic video modes, allowing users to choose between resolution, frame rate, and workflow requirements.
VR180
7680 × 3840 @ 30fps
7040 × 3520 @ 50fps
6080 × 3040 @ 50fps
SBS
7680 × 3584 @ 30fps
7120 × 3144 @ 50fps
3D
* 3840 × 2160 @ 60fps
This range of recording modes makes the camera suitable for both immersive VR180 production and conventional stereoscopic 3D workflows.
03. Up to 120fps High-Speed Capture
Capture Fast Motion with Greater Temporal Detail
The YVR-002 supports high-frame-rate video capture up to 120fps.
Supported high-speed modes include:
3840 × 2160 @ 120fps — one channel only
2736 × 1536 @ 120fps
The 120fps capability provides an option for recording fast-moving subjects and creating smoother motion or slow-motion content during post-production.
The specification sheet specifically notes that 3840 × 2160 @ 120fps supports one channel only.
04. 10-Bit Video and H.265 Main10
More Flexible Image Data for Professional Workflows
The camera supports **8-bit and 10-bit color depth**, together with H.265 Main and Main10 encoding.
10-bit video provides a higher level of tonal information than standard 8-bit recording and can provide greater flexibility for professional image processing and post-production workflows.
Supported Encoding
H.264:BP / MP / HP
H.265:Main / Main10
Color Depth: 8-bit / 10-bit
For creators working with color grading or demanding post-production workflows, the 10-bit option provides additional image-data flexibility.
05. HDMI 2.0 and Professional Connectivity
Built for Flexible Production Workflows
The YVR-002 provides **HDMI 2.0 output** in addition to USB and network connectivity.
This allows the camera to be integrated into production systems that require direct HDMI video output.
The camera also supports:
* RTMP
* RTSP
* UVC
* SRT
* USB Type-C
* External Ethernet through Type-C to RJ45
* Wi-Fi 5
The combination of HDMI output, network streaming, USB connectivity, and local recording provides multiple options for professional video workflows.
06. Large 4-Inch Full HD LCD Display
A Clearer Integrated Monitoring Experience
The YVR-002 features a 4-inch LCD display with 1920 × 1080 resolution.
The larger Full HD display provides a more detailed monitoring interface for camera operation, image settings, and production control.
The camera also provides extensive image adjustment options, including:
* ISO: Auto / 100–12800
* Shutter: Auto / 1/30–1/16000
* White Balance: Manual / Automatic
* EV: -2 to +2
* Brightness
* Contrast
* Saturation
* Sharpness
* Noise Reduction
* Anti-Flicker
* Image Effects
* Image Enhancement
PRECISION DUAL-LENS STEREO IMAGING
Designed Around Consistent Left- and Right-Eye Imaging
High-quality stereoscopic imaging requires precise control of the relationship between the two optical channels.
The YVR-002 uses a dedicated binocular fisheye lens module with a **65 mm stereo baseline**.
Its underlying stereo imaging technology addresses:
Horizontal Alignment · Distortion Control · Timing Synchronization
These elements are important for maintaining consistency between the left and right views and for producing a more natural stereoscopic viewing experience.
The stereo imaging and calibration technology used in the product family has been developed around high-precision alignment, distortion control, and synchronized dual-channel processing.

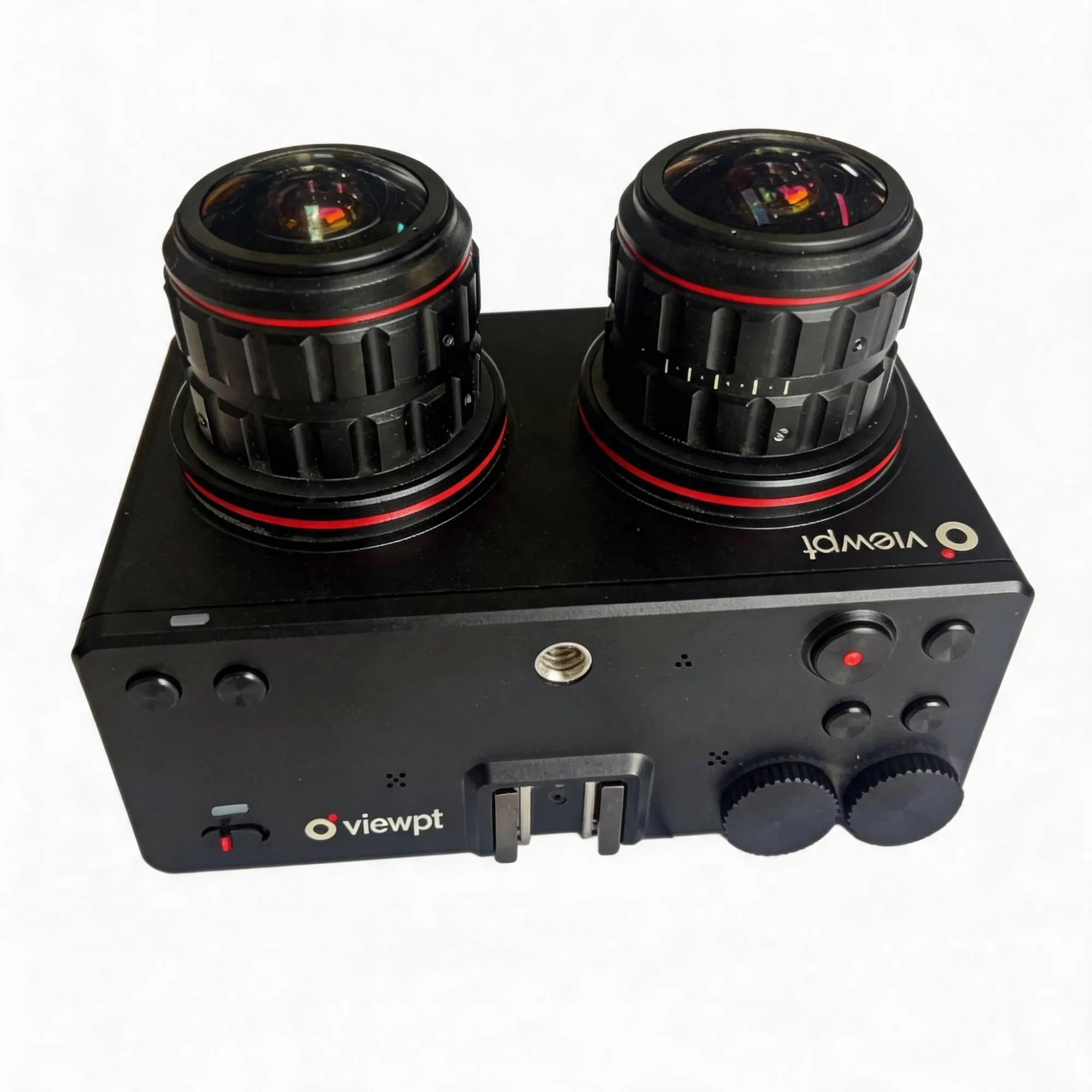

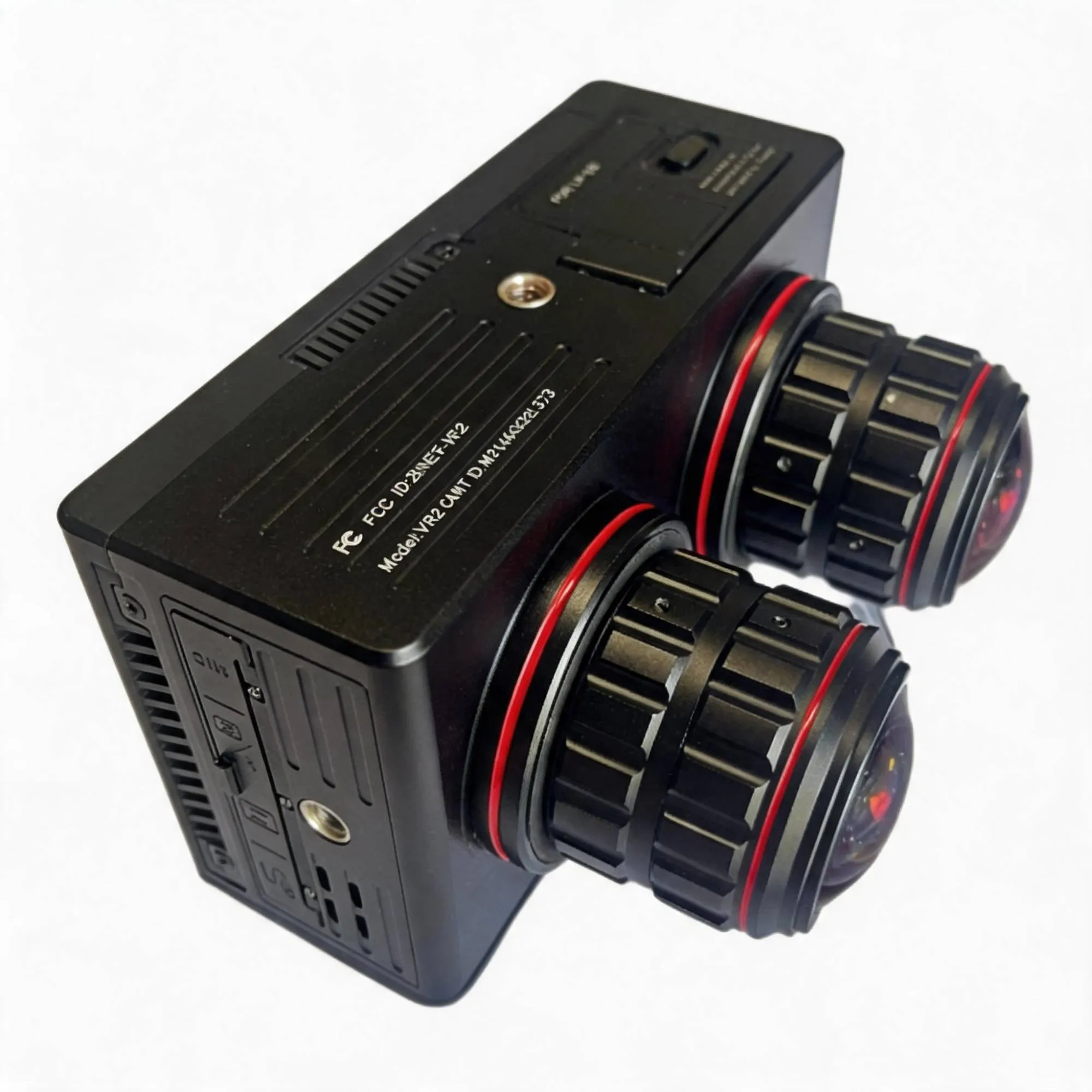

170° BINOCULAR FISHEYE OPTICAL SYSTEM
Wide-Angle Stereo Capture for Immersive Content
The YVR-002 uses a customized binocular fisheye lens module with a 170° field of view.
The optical system is designed to capture a broad scene through two synchronized optical channels for VR180 and stereoscopic imaging.
The 65 mm camera spacing** provides the physical stereo baseline between the two optical channels.
170° FOV · Dual Fisheye Lens System · 65 mm Stereo Baseline
HIGH-PRECISION STEREO CALIBRATION
Consistency Starts with the Optical System
A professional stereo camera requires more than two image sensors.
The physical relationship between the two lenses and sensors must be carefully controlled to maintain consistent stereoscopic imaging.
The underlying production system incorporates high-precision stereo calibration and verification processes designed to control lens positioning, stereo alignment, and system consistency.
This approach helps maintain a consistent relationship between the two optical channels throughout production.
HIGH-SPEED IMAGING
4K 120fps for Fast-Moving Scenes
One of the major advantages of the YVR-002 is its high-frame-rate capability.
The camera supports:
3840 × 2160 @ 120fps
One channel only and 2736 × 1536 @ 120fps
High-frame-rate recording can be useful for:
* Fast-moving subjects
* Sports
* Motion analysis
* Slow-motion production
* High-speed visual recording
* Dynamic immersive content
The 120fps modes are separate from the camera's standard VR180 and 3D recording modes and should be selected according to the intended workflow.
10-BIT IMAGE WORKFLOW
More Image Data for Professional Post-Production
The YVR-002 supports **8-bit and 10-bit** color depth.
With H.265 Main10 encoding, the camera can provide a 10-bit recording option for workflows that require greater tonal precision and more flexibility during image processing.
This is particularly relevant to professional video production where color correction and grading are part of the post-production workflow.
8-bit / 10-bit · H.265 Main / Main10
RECORDING AND LIVE STREAMING
One Camera, Multiple Production Workflows
The YVR-002 supports both local recording and live streaming.
Local Recording
The camera supports VR180 and 3D recording to a high-speed TF card with capacities up to 512GB U3A2.
Live Streaming
Supported streaming formats include:
RTMP · RTSP · UVC · SRT
The maximum bit rate is 120Mbps.
HDMI Output
The camera also provides HDMI 2.0 output for external video workflows.
BUILT-IN MONITORING AND CAMERA CONTROL
4-Inch Full HD Display
The YVR-002 features a 4-inch LCD display with 1920 × 1080 resolution.
The camera provides extensive manual and automatic image controls, including ISO, shutter speed, white balance, EV adjustment, brightness, contrast, saturation, sharpness, noise reduction, anti-flicker, image effects, and image enhancement.
The camera also supports control through PC and APP.
AUDIO
Integrated and External Audio Options
The YVR-002 includes dual built-in microphones and supports external digital microphones through:
* 3.5 mm audio interface
* USB Type-C
Audio recording is supported at AAC 48 kHz.
The camera also includes a built-in 1W, 8Ω speaker.
ALL-IN-ONE 3D PRODUCTION WORKFLOW
Capture. Process. Monitor. Record. Stream.
The YVR-002 integrates the key functions required for immersive stereoscopic production.
Capture
Dual 1-inch Sony IMX383 sensors and a customized binocular fisheye lens system.
Process
Integrated processing for high-resolution VR180 and 3D video.
Monitor
4-inch Full HD LCD display.
Record
VR180 and 3D recording to a high-speed TF card.
Stream
RTMP, RTSP, UVC, and SRT.
Output
HDMI 2.0 for external video workflows.
This integrated design reduces the need to combine multiple devices for a basic stereoscopic production setup.
