Wearable Compact Portable Body Police Camera Infrared Night Vision LEDs At 480P Resolution

Wearable Compact Portable Body Police Camera Infrared Night Vision LEDs At 480P Resolution

Camera

1.Total Pixels Number

NTSC: 1020(H) x 508(V) 520K

PAL : 1020(H) x 596(V) 610K

2. Effective Pixels Number

NTSC: 976(H) x 494(V) 480K

PAL:976(H) x 582(V) 570K

3.Pick-up Device

1/3”960H EXview HAD CCD II (Sony)

4. Lens Fitted

Board

5. Signal Process

Digital Signal Process

6. Scanning System

  2:1 Interlace

7. Sync System

Internal

8. Scanning Frequency

NTSC:59.94Hz (VD)

PAL : 50Hz (VD)

9. Horizontal Resolution

700 TV Lines

10. S/N Ratio

More than 50dB (AGC Off )

11. Video Output

  1.0Vpp composite (75R)

12. Min. Illumination

  0.1Lux /30IRE, F2.0

13. Shutter Speed

NTSC: 1/60 ~ 1/100,000 sec

PAL : 1/50 ~ 1/100,000 sec

14. Power Consumption

DC5V , Max. 150mA

15. Operating Temperature

   -10C ~ 50C (Humidity : 0% RH ~ 80% RH)

16. Storage Temperature

   -20C ~ 60C (Humidity : 0% RH ~ 85% RH)

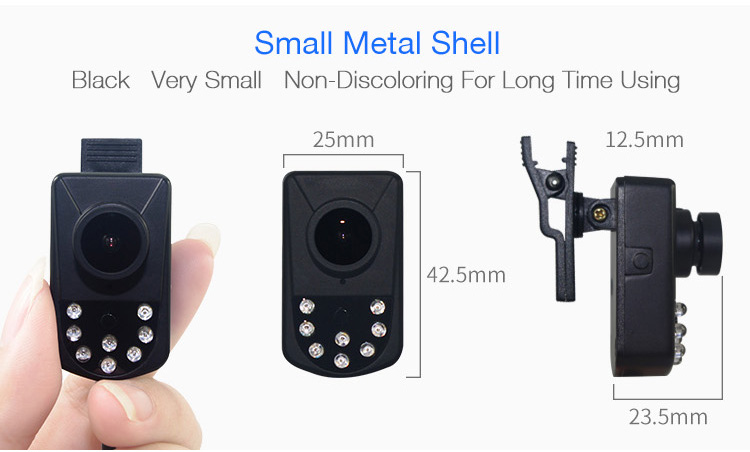

17. Size:25mm*42mm

Infrared night vision led diode

  1.Working voltage 5V.

2.Working current 20mA.

3.Wavelength(nm) 850.

4.Available angle 60 degree.

5.LED type dip led.

6.Color clear.

7.Quantity led 8pcs + light sensor 1pcs
