2.8-12mm Optical Manual Zoom Varifocal Lens 2 MP 1080P 60FPS HD Digital Mini Bullet 3G-SDI Camera

1.3G / HD SDI digital signal and CVBS analog signal output,1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission

2.Designed with advanced CMOS chip, the 1/2.8'' sensor will provide more smooth video transmission.The camera Supports OSD,include D-WDR(Digital-WDR) With 2.8-12MM manual ZOOM megapixels lens.

3.Multiple resolutions output ( 3G-SDI,HD-SDI )，Support 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25P

4. Is suitable for use in indoor and outdoor applications including live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and more

1.Camera

1).Image Device---1/2.7” 2.2M SONY CMOS

2).Scanning System---Progressive Scan

3).Total Pixels---1956(H) x1266(V) : 2.48Mega pixel

4).Effective Pixels---1944(H) x 1092(V) :2.12Mega pixel

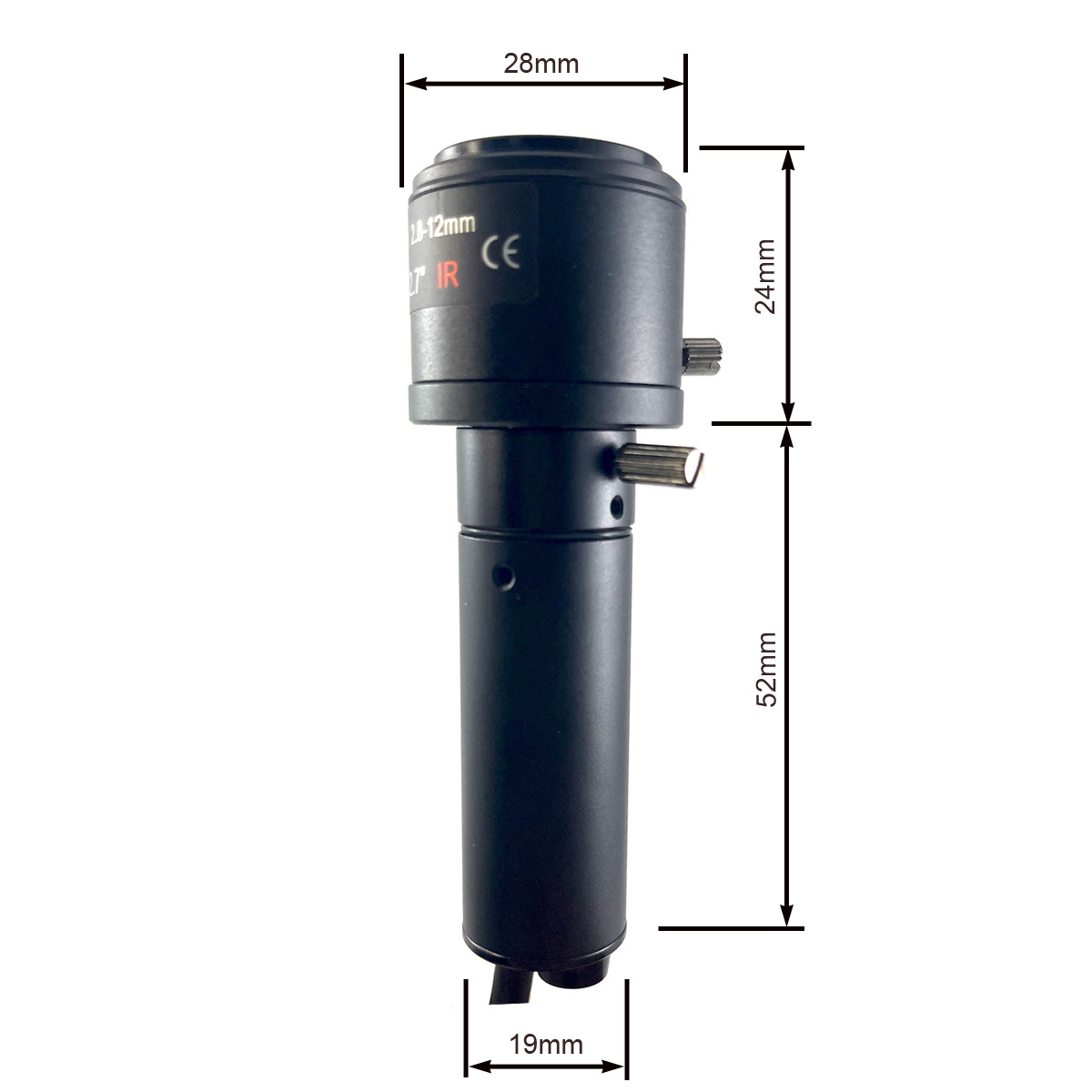

5).Lens --- 2.8-12mm Manual Varifocal Lens

6).Min. Illumination---0.3Lux--F2.5 , 30IRE

7).Sync System---Internal

8).Electronic Shutter---60Hz : 1/30~1/30,000sec,50Hz : 1/25~1/30 000sec

2.Video

1).Output ---SDI-SDI(max. 1080@60p), HD-SDI,EX-SDI

2).Resolution& Frame rate ---1080@60i/50i, 1080@60p/50p, 1080@30p/25p, 720@60p/50p, 720@30p/25p

3.OSD

1)Language---English, Chinese, Chinese(S), Japanese

2)LENS---DC/ MANUAL

3)EXPOSURE---BRIGHTNESS/ SHUTTER MODE&SPEED/SENS-UP

4)WHITE BALANCE---AWB/ATW/ PUSH LOCK/ MANUAL

5)WDR/ BLC/ ACE---OFF/ WDR/ BLC/ ACE (Real-WDR)

6)DNR---OFF/ LOW/ MIDDLE/ HIGH (3D-DNR)

7)DAY&NIGHT---AUTO/ EXT/ COLOR/ B&W

8)IMAGE---SHARPNESS/ COLORLEVEL/MIRROR/FLIP/ LENS SHADING/GAMMA/D-ZOOM/DEFOG

9)SPECIAL---COMM ADJUST/ PRIVACY/ HLC/MOTION

10)SYSTEM---FORMAT/ FPS/ FREQ/ CVBS SCALE/CVBS OUT(NTSC/PAL)

4.Others

1)Operating Temperature ---14°F~122°F (-10℃~+50℃)

2)Storage Temperature----4°F~140°F (-20℃~+60℃)

3)Humidity---Less than 80%

4)Power Consumption---DC12V(±10%), Max.100mA

5)Weight(g)---Approx. 83g(0.2lb)

6)Option---OSD Cable

7)RS485 +/-
