USB Connecting port in this camera module support high speed usb 2.0 data transmission,Webcamera board usb also support OTG protocol(UVC).The camera has a dedicated, high-performance Image Signal Processor chip (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video and the MJPEG compression.
Specification
| Working system | OTG Compatible Android advice,Over Android 4.3 supported |
| APP | USB OTG Camera or camerafi or USB camera |
| Sensor | 1/2.8" CMOS |
| Power | OTG |
| Image pixels | 16MP |
| Image Format | YUV/MJPG |
| Audio | embedded microphone,sound & video recording |
| Data Format |
4656x3496/4208x3120/4000x3000/3264x2448/2592x1944/2320x1744/ 2304x1728/2048x1536/1920x1080/1600x1200/1280x960/1280x720 |
| Frame rate |
4656x3496 at10fps/4208x3120 at10fps/4000x3000 at 10fps/3264x2448 at 10fps/2592x1944 at10fps/2320x1744 at30fps/2304x1728 at30fps/2048x1536 at30fps/1920x1080at30fps/1600x1200at30fps/1280x960at30fps/1280x720at30fps
|
| Camera control | auto/manually/saturation/contrast/acutance |
| AF Range | 5CM to +∞ |
| White balance | automatically |
| Exposure | Average brightness |
| Sleep model current | <10mA |
| Working current | 5V 260mA |

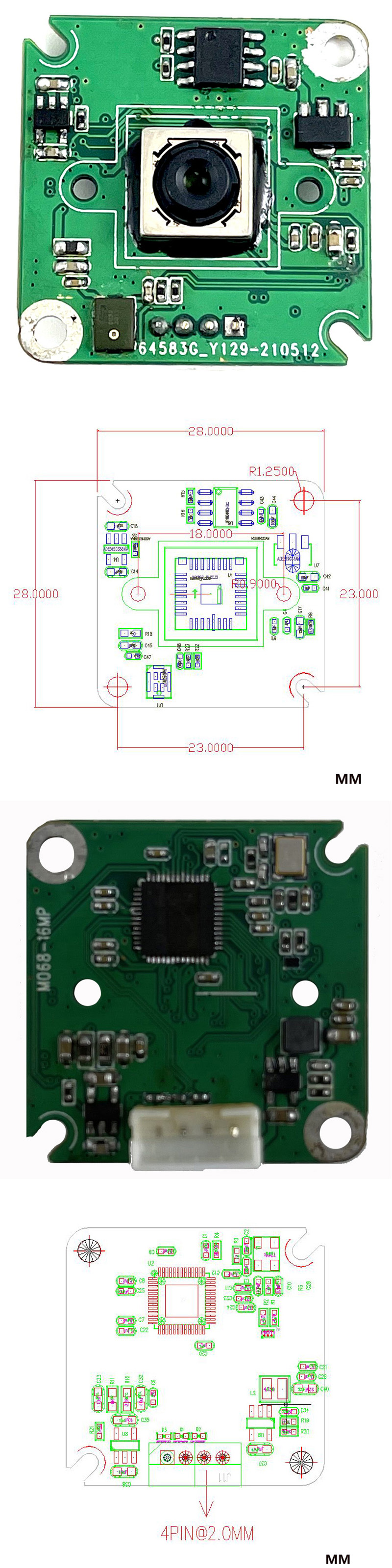

| Measure | 28x28mm |
| Cable length | 80CM or Customized |
| Plug | Micro USB or Type - C or Type - A |
| Storage Temperature | -30C to 80C |
| Working Temperature | -20C to 70C |
| Lens | 80 degree view angle,8.0MP Non-interchangeable |
